[fusheng-ji]

RFC #420 stack 9/10 (base test-h3, merge bottom-up): #483 → #484 → #485 → #486 → #487 → #488 → #489 → #493 → #494 → #586 → #587 → #588. This PR merges after #493; until the lower PRs merge, GitHub also shows their commits. This PR's own diff.

Evidence location: the measurement outputs of this PR (JSON, figures, audit files) are not part of its diff. They are on the fork's pr_assets branch under pr494/ (links in this description are fixed to that commit). Paths such as reports/experiments/... below name where a runner writes its output.

What

• Sequence-parallel h3_rmsnorm (+ AdaLN modulation) and adaln_gate_residual.

  • Rank r holds packed positions [r·S//sp, (r+1)·S//sp) of every batch item. Any S ≥ sp works.
  • The (S,) row index is replicated, so every rank derives the same reduction plan from it.
  • Wrong shapes, a sharded index, out-of-range rows and CPU tensors fail closed.

• Row-local work is the WS1 kernels on local rows. That covers the forward, dx, d_sublayer and d_residual, so they are byte-equal by construction.

• Cross-row gradients keep the WS1 order across ranks. d_norm_w, d_shift/d_scale and d_gate are WS1 two-level folds: 256-element tiles, then an ascending fold.

  1. Each tile is computed by the rank that holds its first row, after all-gathering that tile's rows from other ranks. Only tiles that cross a shard boundary move rows.
  2. The tile partials are all-gathered back into WS1 tile order.
  3. Every rank runs the WS1 fold.

  No collective reduction arithmetic is used. The new bindings (h3_rmsnorm_backward_{dx,partials}, h3_rmsnorm_fold_partials, h3_gate_residual_backward_dy, h3_gate_grad_{partials,fold}) wrap the unchanged WS1 kernels. The WS1 dweight tile kernel also accepts explicit row lists, with the same arithmetic.

• The plan is built once per index object and shared by every norm and gated residual that uses it, which in a forward pass is every block.

Prior art & reuse decision

The row-local work and the cross-row folds are #487's and #488's verified WS1 kernels, unchanged; the new bindings only expose them per shard, and the only collective is this repository's deterministic all-gather, used as a copy. No new arithmetic is written, so the survey and batch-invariance checks of #487 and #488 apply.

Direct bitwise comparison

The sequence-parallel norm/AdaLN/gate path is composed of the WS1 rows below it, and their reuse candidates are compared byte for byte with tools/validation/models/h3_bitwise_reuse.py (committed in #483, merged down the stack). It runs every candidate that h3_prior_art.candidates() defines on identical inputs and compares every output and leaf gradient with diffusers' path and with the rl-kernel op. Each row's report, written from a clean tree on its own branch: #483 timestep_sinusoid; #484 timestep_mlp; #485 adaln_projection; #486 adaln_row_gather; #487 norm_modulate; #488 gate_residual; #489 final_adaln_out.

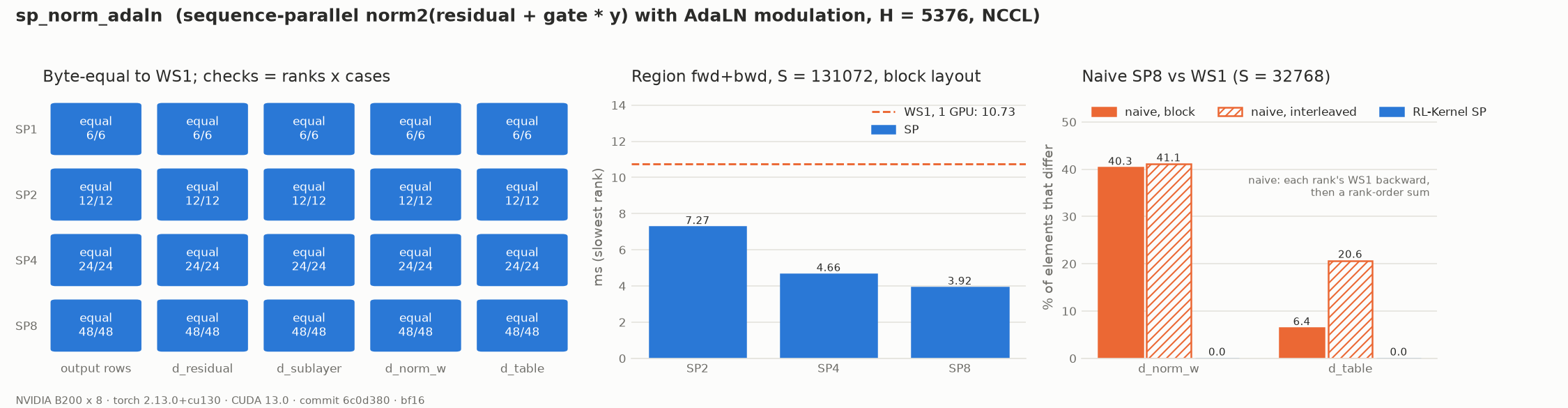

Results (8 × B200, real NCCL, one GPU per rank, H = 5376, BF16)

The region is norm2(residual + gate_msa[row] · y) with shift_mlp/scale_mlp modulation. It is checked on six cases: S = 4097, 32768 and 131072, block and interleaved packing, and B = 2.

	WS1 (1 GPU)	SP2	SP4	SP8
output rows, d_residual, d_sublayer, d_norm_w, d_table bitwise equal to WS1 (every rank, every case)	n/a	yes	yes	yes
fwd+bwd, S = 131072, block	10.73 ms	7.27 ms	4.66 ms	3.92 ms
fwd+bwd, S = 32768, block	3.72 ms	2.85 ms	2.40 ms	2.72 ms
most rows sent by one rank, S = 32768 (block / interleaved)	n/a	109 / 1280	148 / 1280	224 / 1536

Times are for the slowest rank. At short sequences, the backward's few host-synchronising all-gathers (~0.1 ms each) dominate. For contrast, a naive SP8 backward (each rank's WS1 backward, then a rank-order sum) differs from WS1 on 40% of d_norm_w elements and on 6% (block) or 21% (interleaved) of d_table elements. The data is in reports/experiments/h3-sp-norm-adaln-b200/report.json, written from a clean tree at ecde5bb.

Status

• Merged [WS2][CUDA][MiniMax-H3] tp_adaln_3mod: column-parallel AdaLN projection, byte-equal to WS1 (RFC #420 stack 8/10) #493's latest state (ba00517).
• tests/models/minimax_h3 at ba00517 on 8 × B200: 458 passed, 1 skipped (matplotlib not installed), including the 4- and 8-GPU sequence-parallel tests.

History

• 2026-10-26: the stack is one ancestor chain. [WS1][CUDA][MiniMax-H3] timestep_sinusoid_h3: FP32 timestep features + shared H3 harness (RFC #420 stack 1/10) #483 → [WS1][CUDA][MiniMax-H3] timestep_mlp_fp32: deterministic FP32 timestep MLP (RFC #420 stack 2/10) #484 → … → [WS2][CUDA][MiniMax-H3] sp_norm_adaln: sequence-parallel norm/AdaLN/gated residual, byte-equal to WS1 (RFC #420 stack 9/10) #494 are merged forward in order (merge commits only, no force-push), so each branch contains its parent's head and merging the PRs in order does not conflict. All commits are signed off; GitHub's DCO check reports "could not be evaluated" on PRs above 250 commits ([WS2][CUDA][MiniMax-H3] tp_adaln_3mod: column-parallel AdaLN projection, byte-equal to WS1 (RFC #420 stack 8/10) #493, [WS2][CUDA][MiniMax-H3] sp_norm_adaln: sequence-parallel norm/AdaLN/gated residual, byte-equal to WS1 (RFC #420 stack 9/10) #494), which is an app limit, not a missing sign-off.
• 2026-10-23: history rewritten. Measurement outputs (JSON, figures, audit files) were removed from every branch and live on pr_assets (see the evidence note at the top), and all commits got a Signed-off-by trailer. Commit hashes in this body, including the clean-tree commit of the measurement, are the rewritten ones; the ZIPs and JSON files on pr_assets still carry the pre-rewrite hashes.
• 2026-10-13: fast-math guard (from the #483 review). KERNEL_ALIGN_USE_FAST_MATH=1 adds --use_fast_math to the whole _C build, which approximates expf/sinf/cosf/rsqrtf/division and flushes denormals. Before the fix a fast-math build of the top of the stack failed 33 H3 tests (the timestep_sinusoid_h3 and h3_rmsnorm bitwise tests and the chain/block tests built on them). nvcc 13 defines no fast-math macro, so the guard is in the build: every csrc/cuda/h3 source is listed in H3_BITWISE_SOURCES and left out of fast-math builds, the bindings are gated on KERNEL_ALIGN_WITH_H3_KERNELS, dispatch falls back to the PyTorch references, and tests that assert CUDA dispatch skip through require_h3_kernels. On this branch: merge e1db1359. Results for both builds are under Tests.
• 2026-10-10: repository refactor. Merged upstream test-h3@16b81175874e (notice): H3 CUDA code moved to rl_engine/backends/cuda/model_specific/minimax_h3, references to rl_engine/reference/minimax_h3, the harness to rl_engine/validation/models, with registration, build, tests, tools, docs and tools/migration/layout.json updated. Native arithmetic is unchanged; pinned evidence keeps its original commit metadata. The updated [WS2][CUDA][MiniMax-H3] tp_adaln_3mod: column-parallel AdaLN projection, byte-equal to WS1 (RFC #420 stack 8/10) #493 dependency is merged as well: its pinned backward-only evidence and process-lifecycle regressions are retained alongside the SP-specific review fixes.
• Earlier test runs, superseded by Tests below: after the refactor merge (2× B200): 513 passed, 5 skipped; with the fast-math guard (2× B200, passed / skipped / failed): default 532 / 7 / 0, fast-math 184 / 355 / 0.

Pre-refactor validation (historical, before 2026-10-10)

python -m pytest tests/models/minimax_h3/test_h3_sp_norm_adaln.py -v
python tools/validation/models/h3_ws2_evidence.py --op sp_norm_adaln --worlds 1,2,4,8 --out report.json && python tools/validation/models/plot_h3_evidence.py report.json

Check	Result
per-rank backward vs WS1 on one GPU, SP 2–8 (odd S, B = 2, shards smaller than a tile, block/interleaved, bf16/fp32)	passed
autograd region over real NCCL, SP2 / SP4 / SP8 vs WS1 (8 × B200)	passed
tests/models/minimax_h3 on 8 × B200 (incl. TP and SP NCCL 2/4/8)	243 passed, none skipped
dispatch + gtest-GPU	all pass; the only failure is the npu dispatch test that already fails on test-h3

The repository's CI workflows only run on PRs to main or test, so on test-h3 only the DCO and CodeRabbit checks run. The results above come from local runs on B200s.

Tests

Measured at commit 613d1232, an earlier head of this PR (later commits are listed under History and these runs were not repeated for the current head), 8× B200, pinned MiniMax-H3@42ed227 weights; each build compiled from a clean checkout of that commit:

python tools/weights/prepare_h3_weights.py --out <dir> && export RL_KERNEL_H3_WEIGHTS=<dir>
python setup.py build_ext --inplace                                  # default build
python -m pytest tests/models/minimax_h3 tests/build tests/runtime/test_dispatch.py -q
KERNEL_ALIGN_USE_FAST_MATH=1 python setup.py build_ext --inplace     # fast-math build, same pytest

Build	H3 kernels in _C	passed / skipped / failed
default	yes	536 / 3 / 0
KERNEL_ALIGN_USE_FAST_MATH=1	no (PyTorch reference fallback)	184 / 355 / 0

Default-build skips (environment only): 1 × could not import 'matplotlib'; 1 × could not import 'sglang.kernels.ops.diffusion.modulate.timestep_embedding_jit'; 1 × extension enforcement is CI-only (orchestrator sets RL_KERNEL_REQUIRE_EXT=1).

Fast-math regression tests: tests/build/test_build_platform_collectives.py::test_cuda_build_compiles_h3_kernels_without_fast_math, ::test_fast_math_build_excludes_bitwise_h3_kernels, tests/runtime/test_dispatch.py::test_h3_timestep_falls_back_when_fast_math_build_omits_kernel, ::test_h3_ops_prefer_cuda_and_fall_back_to_pytorch_reference.

On this PR the GitHub checks are DCO and CodeRabbit only (the CPU lint/unit/docs workflow for test-h3 arrives with #586), so the GPU results above are the test evidence.

Scope / Known limitations

CUDA only. The ROCm column stays open. DeterministicCollective supports world sizes 1, 2, 4 and 8. The attention and FFN SP paths belong to other rows. Until they land, the region uses a seeded stand-in for the sublayer output.

.coderabbit.yaml is not part of this operator. The branch carries the test-h3 CodeRabbit auto-review config, inherited through the stack from commits d113891 and 5c79216. The file is byte-identical to #490's, so it drops out of this diff once #490 merges into test-h3.

Summary by CodeRabbit

• New Features
  • Added MiniMax-H3 conditioning operations for timestep features and MLPs, AdaLN projection and modulation, RMSNorm, gated residuals, and final AdaLN output, with CUDA implementations and PyTorch reference support.
  • Added tensor-parallel projection and sequence-parallel normalization workflows.
  • Added tools to benchmark operators, replay conditioning stages, validate model weights, and generate performance reports and plots.
• Documentation
  • Added operator guides and benchmark evidence covering H3 operations and parallel workflows.
• Tests
  • Added coverage for H3 operations, dispatch, validation, accuracy, and repeatability.

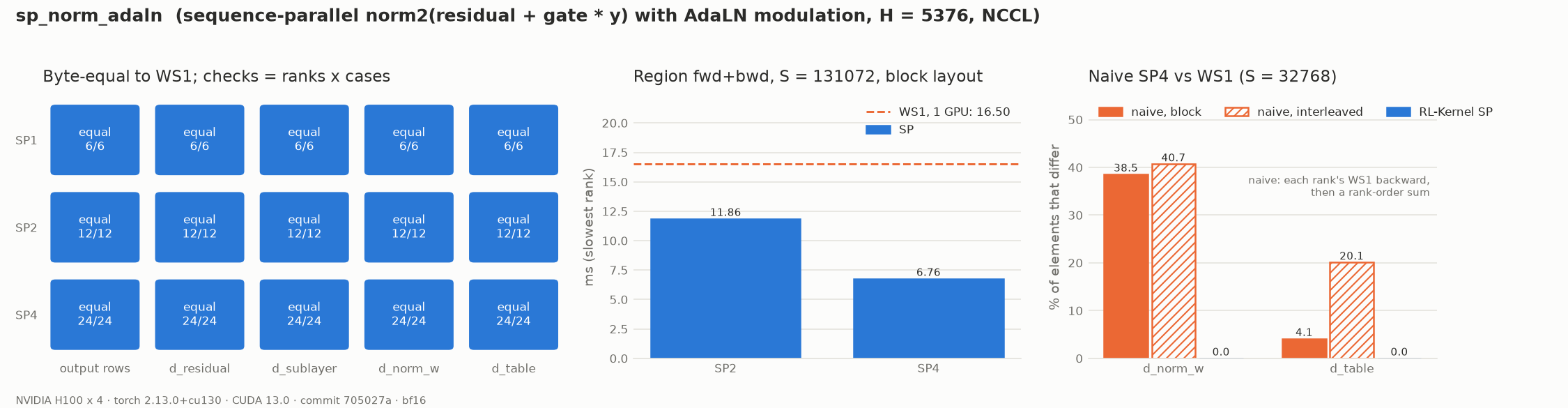

Results (H100 / Hopper)

Measured on 4 x NVIDIA H100 94GB (sm90), driver 580.173.02, CUDA 13.0, torch 2.13.0+cu130, pinned MiniMax-H3@42ed227, clean tree at 705027a0. B200 and H100 are independent measurement sets (RFC #420); timings and raw bytes are not compared across GPUs. Evidence on pr_assets @ 5f14a845: h3-sp-norm-adaln-head-705027a0-h100/.

Tests (pytest tests/models/minimax_h3 tests/build tests/runtime/test_dispatch.py)

• default build: 666 passed, 4 skipped
• KERNEL_ALIGN_USE_FAST_MATH=1 build: 205 passed, 465 skipped
• 4-GPU test_h3_sp_norm_adaln.py: 25 passed, 1 skipped in 53.83s

WS2 (h3_ws2_evidence.py --worlds 1,2,4): sp=1, sp=2 and sp=4 are byte-equal to WS1 on every rank and case (report.json). World 8 was not run (same 4-GPU / single-node IPC limit as #493).

Figures
