What
Contract
h3-parallel-v1: eight canonical reduction units, so tensor parallel 1 / 2 / 4 / 8 add the same partials in the same tree.dX: unit j is block j of every fused weight, in q,k,v / hidden,gate order.SeqShard; sequence parallel: all-gather / reduce-scatter;coshardslices metadata with the rows.HierarchicalCollective(hierarchical_ipc_nccl_tree): node-local deterministic tree, NCCL all-gather of the group partials, fixed balanced add. The input dtype is the accumulation dtype, so the result matches the single-node tree bit for bit.h3_parallel_run.pylaunches a layout on N processes and compares every rank with the single-GPU canonical block.Prior art & reuse decision
DeterministicCollectiveDecision: canonical-unit partial sums plus a fixed tree; NCCL only moves bytes between nodes.

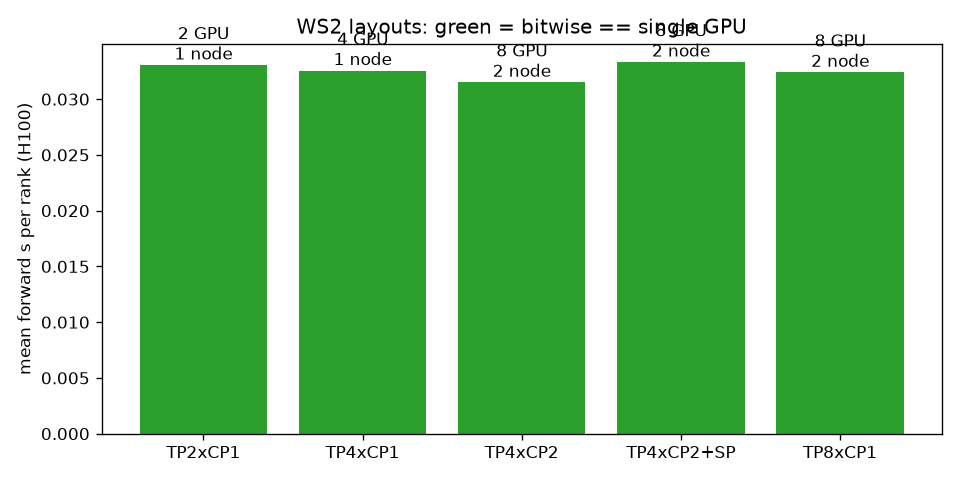

Results (H100 / Hopper, 2 nodes x 4 GPUs)
Measured on NVIDIA H100 (93 GiB, sm90), driver 580, CUDA 13.0, torch 2.13.0+cu130, pinned
MiniMax-H3@42ed227weights, at head5ae9f5eb. Block 0 of the pinned checkpoint, 264 packed rows; forward and input gradient compared bitwise with the single-GPU canonical block for every layout, and in addition every weight-gradient shard (to_q/k/v, to_out, ff hidden/gate/down) for the layouts without CP (TP2, TP4, TP8).Numbers:

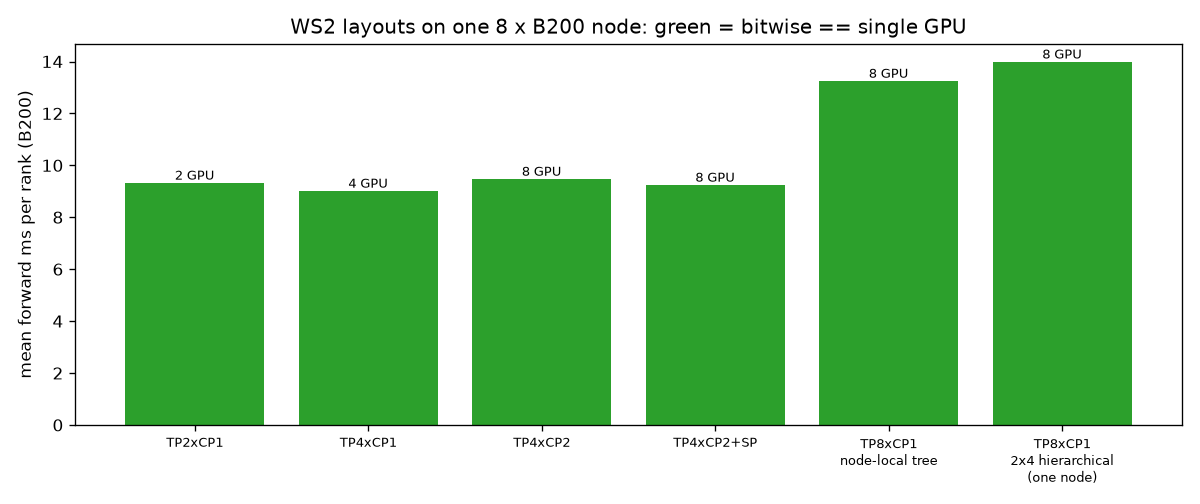

reports/experiments/h3-ws2-parallel-h100/(one report per layout; host names are replaced bynode-a,node-b).Results (B200 / Blackwell, 1 node x 8 GPUs)
Measured on NVIDIA B200 (179 GiB, sm100), driver 580.126, CUDA 13.0, torch 2.13.0+cu130, pinned
MiniMax-H3@42ed227weights, clean tree at5ae9f5eb. One node with 8 GPUs, one process per GPU; same block, 264 packed rows and comparisons as the H100 table above (forward and input gradient against the single-GPU canonical block for every layout, plus every weight-gradient shard for the layouts without CP).Numbers:
h3-ws2-parallel-b200/(one report per layout,tests.json; host names replaced bynode-a).--local-size 4, which selects the hierarchical IPC + NCCL tree and treats the 8 GPUs as two groups of four inside one physical node. It exercises that code path; it is not a measurement of the cross-node network, which was only measured on H100 (two nodes).test_h3_tp_adaln.py/test_h3_sp_norm_adaln.pywere not run on the B200 either.Status
All five layouts are bitwise equal to the single-GPU reference on real nodes; ranks are packed node-major with 1 / 2 / 4 / 8 nodes supported.
B200 status: all six layouts, including the 8-rank cases on one 8-GPU node, are bitwise equal to the single-GPU block (128 of 128 tests pass); the cross-node collective is not measured on B200.
Tests
python -m pytest tests/models/minimax_h3/test_h3_parallel.py tests/models/minimax_h3/test_h3_projection_rows.py -q # 122 passed (4 x H100)The 8-GPU NCCL cases need eight GPUs in one node or two nodes: we only have 4-GPU Hopper nodes, so they are covered by the two-node runner above and not run on a single 8-GPU Hopper node (open for anyone with that resource, see the note at the top).
B200: the same two files on 8 x B200, 128 passed, 0 failed, 0 skipped (the 8-GPU NCCL cases ran on one node).
Scope / Known limitations
test_h3_tp_adaln.py::andtest_h3_sp_norm_adaln.py::8-GPU cases are skipped here. Help from anyone with a single-node 8 x Hopper machine is welcome.Strict mode is fail-closed: no TF32, no fast-math, no split-K; FP32 accumulation with one final rounding; unsupported shapes, dtypes and devices raise instead of falling back.
ws2_pipeline_parallelis not included. Not part of this PR: video projections (#562), O / gate_up / down GEMMs (#554, #535), full attention (#553), ROCm, SGLang adapter, pipeline parallel.
