[WS1][CUDA][MiniMax-H3] runtime modes, ablation overlay, Diffusers adapter, training provider, LoRA gate (RFC #420 stack 6/7) by fusheng-ji · Pull Request #574 · RL-Align/RL-Kernel

fusheng-ji · 2026-10-22T16:58:21Z

RFC #420 H3 stack 6/7 (base test-h3, merge in this order): #586 -> #587 -> #588 -> #567 -> #568 -> #569 -> #570 -> #571 -> this PR (#574) -> #575. This PR merges after #571; until then GitHub also shows the parent's commits. This PR's own diff.

What

h3_runtime_modes: RL_KERNEL_MODE strict / audit / auto / off decides whether the RL-Kernel graph is bound; strict raises instead of falling back, audit reports the fallback; the case id is R/R (strict, audit) or P/P (auto, off).
h3_ablation_overlay: AblationOverlay.parse("node:attention,boundary:token_refiner") keeps selected block nodes or boundary modules on provider arithmetic inside a strict run; the run is labelled ablation(...), never R/R; unknown names are rejected. full_model_execution gains native_boundaries for this.
diffusers_runtime_adapter_h3: H3DiffusersAdapter binds MiniMaxH3Transformer3DModel for the duration of a with adapter.active(): block, forward and backward (so checkpoint recomputation sees the same operators), and reports what was bound.
h3_training_provider: H3TrainingProvider gives the actor side a step() scope plus a per-sample transition.
h3_lora_gradient_gate: a LoRA over a strict projection trains bitwise repeatably, forward rows do not depend on batching, the base stays frozen, and the gradients are FP64-close.
transition.py (used by the training provider, not a separate RFC row): the cps, noise_level=0.8 step with layout-invariant per-sample noise.

Prior art & reuse decision

Existing	Used here
`rl_engine/runtime/policy.py` (`RL_KERNEL_MODE`, #361 pattern)	reused for the mode policy
`AblationOverlay` pattern of #230	extended with H3 node and boundary names
verl-omni `FlowMatchSDEDiscreteScheduler`	the transition is checked bitwise against its `sample_previous_step(sde_type="cps")`

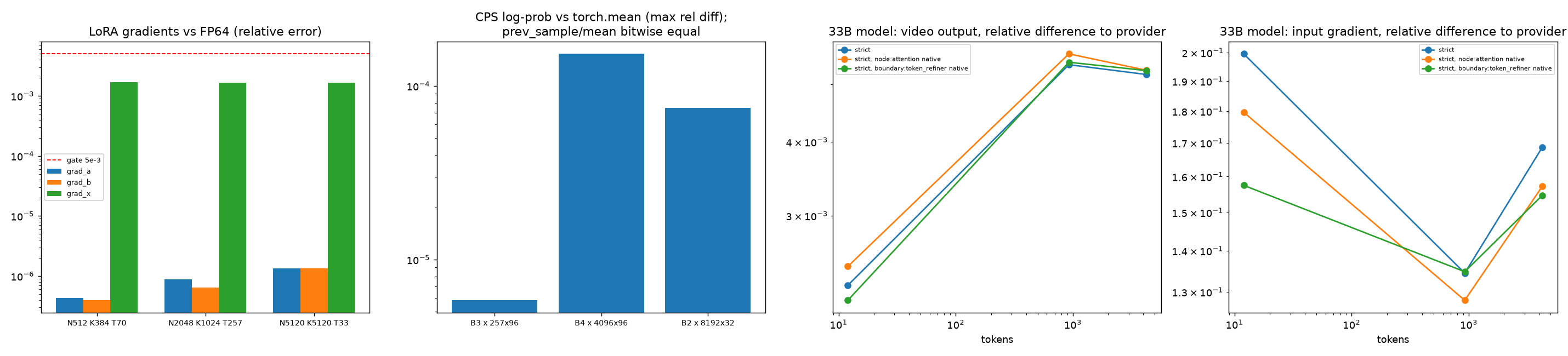

Results (H100 / Hopper)

Measured on NVIDIA H100 (93 GiB, sm90), CUDA 13.0, torch 2.13.0+cu130, pinned MiniMax-H3@42ed227 weights, at head af3dcaef. Runner: tools/validation/models/h3_runtime_report.py. Data and figure on the fork's pr_assets branch (report.json, figure.png, environment.json).

LoRA gradient gate (3 shapes, N x K x T up to 5120 x 5120 x 33): bitwise repeatable, forward rows independent of batching, base frozen in all three. Relative error to FP64 autograd: dA 4.3e-7 .. 1.3e-6, dB 3.9e-7 .. 1.3e-6, dX 1.7e-3 (BF16 input rounding), forward 1.7e-3.

CPS transition (B x tokens x channels: 3x257x96, 4x4096x96, 2x8192x32): prev_sample and prev_sample_mean are bitwise equal to the scheduler formula and, with the verl-omni FlowMatchSDEDiscreteScheduler (cps, noise_level=0.8), bitwise equal in the mean. Log-prob max relative difference to the scheduler's torch.mean: 5.8e-6 / 1.5e-4 / 7.5e-5 (fixed-order GEMM reduction vs torch reduction, FP32 rounding). Each sample is independent of the batch (bitwise) and scoring a stored rollout reproduces the sampling log-prob (bitwise) in all three.

Runtime modes on the 33B model (forward + backward through H3TrainingProvider, request sizes 12, 925, 4253 and 8349 tokens; relative difference to a first off (provider) run):

variant	12 tok: video / audio / input grad	925 tok	4253 tok
off, 2nd provider run	0 / 0 / 0	0 / 0 / 1.3e-2	0 / 0 / 1.7e-2
strict (R/R)	2.07e-3 / 1.77e-2 / 0.226	5.52e-3 / 2.40e-2 / 0.129	5.30e-3 / 2.06e-2 / 0.175
strict, `node:attention` native	2.22e-3 / 1.59e-2 / 0.164	5.24e-3 / 2.21e-2 / 0.126	5.39e-3 / 1.98e-2 / 0.162
strict, `boundary:token_refiner` native	2.00e-3 / 2.05e-2 / 0.151	5.38e-3 / 2.06e-2 / 0.117	5.27e-3 / 1.91e-2 / 0.159

8349 tokens (video / audio / input grad; second provider run: 0 / 0 / 1.5e-2): strict 5.29e-3 / 1.95e-2 / 0.154 with h3_full_attention (#553) on #575 (4f7c5d11); node:attention native 5.31e-3 / 1.94e-2 / 0.158 (still on interim attention on this branch).

Strict is bitwise repeatable at all three sizes (video, audio, input gradient, transition log-prob), and audit gives the same bits as strict.
The provider is not: two provider runs differ in the input gradient by 1.3e-2 (925 tokens) and 1.7e-2 (4253 tokens); at 12 tokens they agree. That is the nondeterminism these rows remove.
The strict-vs-provider gap (input gradient 0.12 - 0.23, BF16 provider vs FP32-accumulated candidate, amplified by a 33B network) is the same effect as in [WS1][CUDA][MiniMax-H3] ws1_full_h3_transformer and ws1_dual_trajectory: 33B forward/backward and rollout-vs-train control (RFC #420 stack 5/5) #571. Switching one node or one boundary back to provider does not remove it at any size, so it is not one component's.
On this branch alone, 8349-token strict/audit runs hit CUDA out of memory in the interim DeterministicAttentionOp backward (FP32 attention matrix). The 8349-token strict numbers in the table were taken with h3_full_attention ([WS1][CUDA][MiniMax-H3] Add batch-invariant full attention #553) on the stacked branch [WS1][CUDA][MiniMax-H3] checkpoint mapper and the vLLM-Omni rollout adapter (RFC #420 stack 7/7) #575 at head 4f7c5d11 (video 5.29e-3 / audio 1.95e-2 / input grad 0.154; bitwise repeatable).
The adapter reports which boundary used which binding (boundary_bindings), including proj_in, proj_out, time_embedder and norm_out as provider.

No timing is claimed here; the speed of the underlying rows is in their own PRs.

Results (B200 / Blackwell)

Measured on NVIDIA B200 (179 GiB, sm100), driver 580.126, CUDA 13.0, torch 2.13.0+cu130, pinned MiniMax-H3@42ed227 weights, clean tree at af3dcaef. Optional dependencies for the two comparison tests are pinned to the revisions recorded for the H100 run (environment.json): vLLM-Omni 12e92800 and verl-omni efb9dc7f.

Tests: 19 passed (19 collected), none skipped, including the scheduler comparison against verl-omni (VERL_OMNI_PATH set); tests.json. Report: report.json.

Runtime modes strict, audit, auto, off bind and report as intended (R/R for strict and audit, P/P for auto and off).
LoRA gradient gate (3 shapes): repeatable, rows independent, base frozen; forward error against FP64 0.00166, gradients of A and B 3.9e-07 to 1.3e-06, of the input 0.0017 to 0.0017 (gate 5e-3).
CPS transition: prev_sample and mean bitwise equal, batch invariant, scoring reproduces the sampled log-prob in all 3 shapes; the mean is bitwise equal to verl-omni's and the largest log-prob relative difference to it is 5.8e-06, 1.5e-04, 7.5e-05 (shapes B3 x 257x96, B4 x 4096x96, B2 x 8192x32).
Full 33B model, strict (R/R) against the provider:

tokens	video rel. diff	audio rel. diff	input-grad rel. diff (strict)	input-grad rel. diff (provider vs provider, P/P)	strict bitwise repeatable	audit equals strict
12	2.29e-03	2.13e-02	0.200	0.000	True	True
925	5.40e-03	2.34e-02	0.134	0.014	True	True
4253	5.20e-03	2.04e-02	0.169	0.017	True	True

The input-gradient columns moved by up to about 8% between two B200 runs of this PR (strict at 925 tokens: 0.1339 in the first run, 0.1345 here; the P/P column, which compares the provider with itself, 0.0127 and 0.0136), so part of that column is run-to-run variation of the provider's backward; this was not investigated further. The log-prob difference to the provider is 0 in every row. Ablations that put attention or the token refiner back on the native path give differences of the same size as strict (in the report).

Not run on B200: the 8349-token strict / audit rows, which need the h3-flash-attention-v1 binding that is not in this PR (see the H100 section).

Tests

tests/models/minimax_h3/test_h3_runtime_integration.py (19 tests; the measurements above are from tools/validation/models/h3_runtime_report.py): runtime modes and the environment variable, overlay parsing and validation, adapter off / strict / audit, transition (scheduler comparison needs VERL_OMNI_PATH; skipped without it), LoRA gate and FP64 check. All 19 pass on H100 with a verl-omni checkout (18 pass and 1 skips without it). The #571 chain regression (refiner, projection rows, one block, full model) still passes.

B200: 19 passed, with VERL_OMNI_PATH set.

Scope & Known limitations

The noise law is the scheduler's current cps law (noise_level=0.8); if the recipe changes it, only transition.py and its test change. Maintainer: is this the law to pin?
Attention, rotary and AdaLN of other rows stay provider unless bound by their own rows.
Not in this PR: checkpoint mapper and the vLLM-Omni adapter (next PR in the stack).
