clj-gpui

A library for writing native GPUI applications in real Clojure.

This is not a Clojure-like language, a Lisp-inspired DSL, or a toy interpreter. Application code is ordinary JVM Clojure: def, defn, defonce, atoms, #(), map, macros, namespaces. Rust owns the GPUI window and translates Clojure data into native GPUI Kit widgets.

There is no Clojars release yet. Depend on this repo with :local/root or a git SHA. GitHub Actions runs ./scripts/ci.sh on Ubuntu and macOS (Rust unit plus production-renderer interaction tests, strict Clippy, Clojure tests, cljfmt, and the windowless socket protocol test). macOS additionally runs the explicit offscreen Metal pixel target.

The host uses GPUI Kit 0.6.6 and GPUI 0.3.6. See the migration notes for compatibility and validation details.

ui/window supports optional :on-missing-glyphs font diagnostics. GPUI 0.3.6 currently emits these reports on Linux; its macOS and Windows DirectWrite backends do not emit them.

Quick start

Requirements:

Rust 1.85+ (edition = "2024"; a recent stable cargo on PATH)
Java 21+ and the Clojure CLI
Linux or macOS (GPUI's current platforms)
A working display. On Linux, GPUI needs Vulkan. Software rendering via Mesa lavapipe is enough for a first window.
Linux host builds also need libdbus-1-dev (window capture for gpui.runtime/preview-png) and libfontconfig1-dev (gpui-pre 0.3 font lookup).
If cc is clang, install libstdc++-N-dev for the GCC install clang selects (cc -v prints it; Ubuntu 24.04 clang 18 often wants 14). Otherwise rust-lld fails with unable to find library -lstdc++.

From a checkout of this repository:

# Clojure unit tests
clojure -M:test

# Format check / apply (cljfmt, community indentation)
clojure -M:cljfmt check
clojure -M:cljfmt fix

# End-to-end bridge test without opening a window
clojure -M:protocol-test

# All of the above plus host `cargo test` (what GitHub Actions runs)
./scripts/ci.sh

# macOS only: fixed production RootView fixture through offscreen Metal
cargo test --locked --manifest-path host/Cargo.toml --test rendering

# Example native window (plain counter)
cd examples/counter && clj -M:dev

# Widget gallery (switch, slider, select, tabs, …)
cd examples/widgets && clj -M:dev

# Classic TodoMVC (light card, Enter to add)
cd examples/todomvc && clj -M:dev

# Unified custom toolbar with native window controls
cd examples/title-bar && clj -M:dev

# Custom ThemeSet defined in Clojure (Catppuccin Violet)
cd examples/themes/catppuccin-violet && clj -M:dev

The Rust interaction tests use GPUI Kit observations: an accessible label/value is semantic state, not proof that text pixels were drawn, and an absent optional observation is not false. Disabled behavior is tested by attempting the action; slider numbers are asserted from application state. The explicit macOS target is the complementary real offscreen-Metal check. The regular host cargo test also runs the missing-default-monospace fixture in a separate executable so Kit's process-global font cache starts clean. Keep native-window smoke tests for titlebars, OS menus, focus/IME, and window capture.

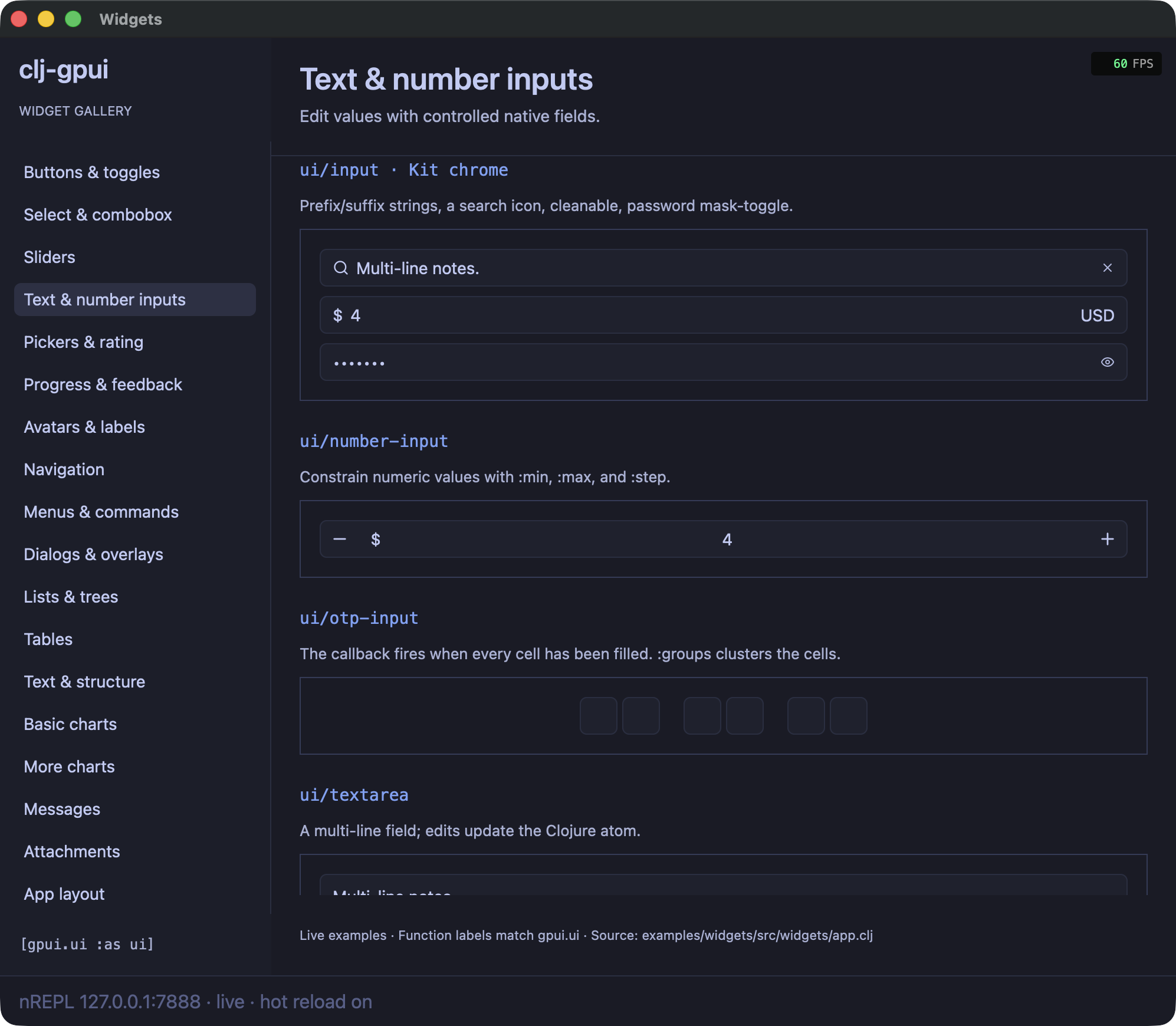

The widget gallery has a sidebar of focused sections, with ui/ function labels and short explanations above live examples. Look up those functions in gpui.ui, or follow the examples in examples/widgets/src/widgets/app.clj. State and testing controls sit in expandable sections.

Or from the repo root:

./scripts/run.sh

On first run, gpui.dev builds host/ with cargo build --release if the binary is missing. Later runs rebuild when a host source file (host/src/**/*.rs, Cargo.toml, Cargo.lock) is newer than the binary. GPUI Kit, Tree-sitter grammars (tree-sitter-languages), and the GPU stack take a while to compile once. A custom Cargo --target (or [build] target in .cargo/config.toml) is fine: the launcher looks under target/<triple>/release/ as well as target/release/. Set CLJ_GPUI_BIN to skip Cargo entirely.

The window footer shows the nREPL port (7888 by default). Connect with CIDER, Calva, or:

clojure -M:connect

Then, while the native window is running:

(in-ns 'counter.app)
(swap! !state assoc :count 100)
(defn app [] (gpui.ui/label "Redefined from nREPL"))
(gpui.ui/request-render!)
;; Snapshot the native window (Evalight Preview uses this)
(gpui.runtime/preview-png) ; nil, or a base64 PNG string

Atom watches already request a rerender. Redefining app without changing an atom needs (gpui.ui/request-render!).

Hot reload

Edit examples/counter/src/counter/widgets.clj or app.clj and save. The watcher reloads the changed namespaces (helpers first), then the root app, and asks GPUI to paint again. defonce / r/atom state survives because namespaces are not unloaded. A compile error is shown in the window until the file is fixed.

Use it in your project

Until this is published, add a git or local dependency:

;; next to a checkout
{:deps {clj-gpui/clj-gpui {:local/root "../clj-gpui"}}
 :aliases {:dev {:main-opts ["-m" "gpui.dev" "my.app/app"]}}}

;; git SHA (no Clojars yet)
{:deps {clj-gpui/clj-gpui {:git/url "https://github.com/YOUR/clj-gpui.git"
                           :git/sha "REPLACE_WITH_SHA"}}}

Copy template/ as a starting app. Then:

clj -M:dev

gpui.dev binds a local TCP port, starts nREPL, watches src/, and spawns the native host. The host connects to Clojure; it does not launch the JVM.

If Cargo is not on PATH, build host/ yourself and set CLJ_GPUI_BIN to that executable. CLJ_GPUI_ROOT points at a library checkout that contains host/.

Application code

Prefer [gpui.ui :as ui] and [gpui.ratom :as r]. gpui.core re-exports gpui.ui for older snippets.

(ns my.app
  (:require [gpui.ratom :as r]
            [gpui.ui :as ui]))

(defonce !state (r/atom {:count 0 :draft ""}))

(defn app []
  (let [{:keys [count draft]} @!state]
    (ui/window
     {:title "clj-gpui" :chrome :dev :theme "Tokyo Night"}
     (ui/vstack
      {:gap 12 :padding 8}
      (ui/label "clj-gpui" {:font-size 22 :font-weight :bold})
      (ui/label (str "Count: " count))
      (ui/hstack
       {:gap 8}
       (ui/button "−" #(swap! !state update :count dec))
       (ui/button "+" #(swap! !state update :count inc) {:primary true}))
      (ui/input
       draft
       {:id "note"
        :placeholder "A native text input"
        :on-change #(swap! !state assoc :draft %)})))))

That data is rendered as a native GPUI window: no browser, no webview, no Electron, no HTML, no CSS, no React. Buttons and checkboxes use 0-argument handlers. Switches and toggles pass a boolean. Sliders and number-inputs pass a number. Select, radio-group, tabs, breadcrumb, accordion, list, data-table, tree, virtual-list, sidebar, and menus pass the original Clojure option id (keywords stay keywords; strings stay strings). A cell-selectable ui/data-table may also pass {:row … :col …}. Inputs, textareas, and the highlighter editor pass the current string to :on-change / :on-submit. OTP :on-change fires only when every cell is filled. Color-picker passes a hex string. Date-picker passes an ISO date or [start end]. Settings pass {:id … :value …}. :on-double-click is 0-arg. :on-blur gets the field string; :on-escape is 0-arg. :on-close on alerts, dialogs, sheets, and notifications is 0-arg. Popover / dialog / alert-dialog / sheet :on-open-change receives a boolean.

Architecture

┌──────────────────────────────────────────────┐
│              Clojure process                 │
│  gpui.dev listens on 127.0.0.1:<ephemeral>   │
│  gpui.ui / gpui.ratom / your app             │
│  nREPL · file watcher                        │
└──────────────────────▲───────────────────────┘
                       │ newline-delimited JSON
                       │ host connects as client
┌──────────────────────┴───────────────────────┐
│              Rust process                    │
│  GPUI window / GPUI Kit widgets              │
│  renderer.rs  ← UI tree as JSON maps         │
│  bridge.rs    ← TCP client + RPC             │
└──────────────────────────────────────────────┘

The UI boundary is ordinary persistent Clojure maps. Functions cannot go on the wire; they become callback ids ("cb-2"). See docs/protocol.md.

Why this architecture

Approach	Verdict
JVM Clojure + local IPC (this library)	Real Clojure, real nREPL, UI-as-data, GPUI keeps the OS event loop.
JNI embedding of the JVM in the GPUI process	Attractive later for a single process. The logical protocol would look the same.
GraalVM Native Image	Useful for distribution later. Fights REPL / hot reload.
jank	Real Clojure dialect, but not a GPUI host today.
Clojure-to-Rust compiler	Long-term inspiration (ClojureDart analogue). Not this repository.
A Lisp interpreter in Rust	Rejected. That would not be Clojure.

Rerendering

(r/atom ...) returns a real clojure.core/Atom. The only extra behavior is an add-watch (:gpui.ratom/watch) that sends request-render. The host fetches a fresh tree and paints the whole window.

The host also fetches a tree after every callback (input submit sequencing, and handlers that do not touch an atom). During that callback Clojure does not send a second request-render from the watch, so a typical swap! click is one paint.

ui/watch! attaches the same watch to an existing atom.

Hot reload

Edit any application src/**/*.clj and save. The watcher reloads the namespaces for those files (so a helper like my.widgets is picked up), then the root app namespace, with (require ns :reload). (require root :reload) alone does not reload already-loaded dependencies. clojure.tools.namespace refresh is not used, because unloading namespaces would reset defonce.

If app throws, or if reload itself fails (syntax error, unmatched delimiter, unresolved symbol), Clojure returns an error UI tree (ok: true) so the native window still paints. Fix the file and save again; the app returns and defonce / r/atom state is kept.

Formatting

Clojure is formatted with cljfmt using community indentation (one space when arguments start on the next line). Config is .cljfmt.edn. It covers src/, test/, examples/, and template/.

clojure -M:cljfmt check
clojure -M:cljfmt fix

The native host is ordinary Rust: cargo fmt in host/ if you touch it.

Repository layout

deps.edn                      ; git-dep library entry
.cljfmt.edn                   ; cljfmt paths and community indentation
src/gpui/ui.clj               ; public widgets
src/gpui/theme.clj            ; register custom GPUI Kit ThemeSets
src/gpui/ratom.clj            ; (r/atom ...)
src/gpui/core.clj             ; compatibility re-export of gpui.ui
src/gpui/runtime.clj          ; protocol, callbacks, nREPL, watcher
src/gpui/host.clj             ; locate/build/spawn the native host
src/gpui/dev.clj              ; development launcher (nREPL, watcher, Cargo)
src/gpui/prod.clj             ; production launcher (no nREPL/watcher/Cargo)
src/gpui/platform.clj         ; folder picker, reveal/open path
src/gpui/package.clj          ; `clj -X:build package`
host/                         ; native GPUI Kit host
host/themes/                  ; bundled GPUI Kit palettes (Tokyo Night, Ayu, …)
examples/counter/             ; plain counter
examples/widgets/             ; gallery of newly supported widgets
examples/todomvc/             ; classic TodoMVC layout
examples/themes/              ; custom ThemeSet (Catppuccin Violet)
template/                     ; copyable app skeleton
test/                         ; unit tests + gpui.test-app
docs/protocol.md
docs/gpui-component.md        ; coverage inventory vs GPUI Kit 0.6

Clojure UI API

Kit 0.6 renamed a few widgets. clj-gpui uses those names (no 0.5.1 aliases): ui/text-field → ui/input, ui/divider → ui/separator, ui/table → ui/data-table. Data tables stay ui/data-table. ui/table is Kit's declarative (non-virtualized) Table, with Kit primitives (ui/table-header, ui/table-row, ui/table-head, ui/table-cell, …) and a {:columns :rows} shorthand. ui/textarea, ui/alert-dialog, ui/combobox, ui/rating, ui/stepper, ui/pagination, ui/progress-circle, ui/shimmer, ui/hover-card, ui/avatar-group, ui/message, ui/bubble, ui/attachment, ui/marker, ui/message-scroller, ui/nav-stack, ui/native-menu, ui/command, and ui/status-bar are new.

(ui/label "Hello" {:font-size 20 :font-weight :bold :color "#c0caf5"})
(ui/label path {:flex 1 :truncate true})
(ui/label path {:width 220 :text-overflow :ellipsis-middle})
(ui/label "Ada" {:secondary "Lovelace"})
(ui/button "+" on-click)
(ui/button "Save" save! {:primary true})
(ui/button "More" {:icon :chevron-down :dropdown-caret true})
(ui/window {:title "Todos" :chrome :app :width 640 :height 820 :theme "Tokyo Night"} ...)
(ui/vstack {:theme :light :gap 8 :padding 16} ...)
(ui/hstack ...)
(ui/spacer)
(ui/checkbox checked on-click "Label")
(ui/checkbox done toggle {:shape :circle})
(ui/label title {:on-double-click start-edit})
(ui/scroll {:flex 1} ...)          ; leftover height in a column
(ui/scroll {:height 220} ...)      ; fixed viewport
(ui/scroll {:width 300} ...)       ; constrain viewport width
(ui/input value {:placeholder "…" :on-change f :on-submit g :on-blur save :on-escape cancel :focus true})
(ui/textarea notes {:id "notes" :rows 4 :on-change f :on-submit g})
(ui/switch on? {:on-change #(swap! !state assoc :on %)})
(ui/toggle bold? {:on-change set-bold! :text "Bold"})
(ui/radio-group selected {:options [{:id :light :label "Light"} :dark]
                          :on-change set-mode! :orientation :horizontal})
(ui/slider volume {:min 0 :max 100 :on-change set-volume! :on-release commit!})
(ui/slider [20 70] {:min 0 :max 100 :on-change set-span!})
(ui/slider zoom {:min 0.25 :max 4 :step 0.05 :scale :logarithmic :on-change set-zoom!})
(ui/slider left {:min 0 :max 100 :reverse true :on-change set-left!})
(ui/progress 45)
(ui/progress nil {:loading true :size :small :color "#3366ff"})
(ui/progress-circle 45 {:size :large :color "#3366ff"} (ui/label "45"))
(ui/progress-circle nil {:loading true})
(ui/shimmer "Thinking…")
(ui/shimmer "Indexing…" {:duration 1 :spread 0.4 :reverse true})
(ui/shimmer scan-path {:flex 1 :truncate true})
(ui/select selected {:options [{:id :clj :label "Clojure"} "Rust"]
                     :placeholder "Language"
                     :searchable true
                     :on-change set-lang!})
(ui/select dialect {:options [{:label "Lisp"
                               :items [{:id :clj :label "Clojure"}
                                       {:id :cljs :label "ClojureScript"}]}
                              {:label "Systems"
                               :items [{:id :rs :label "Rust"}]}]
                    :searchable true
                    :cleanable true})
(ui/tabs tab {:items [{:id :general :label "General"}]
              :variant :underline
              :on-change set-tab!})
(ui/separator)
(ui/separator "or")
(ui/tag "Beta" {:variant :info})
(ui/alert "Saved" {:variant :success :title "Done" :on-close hide!})
(ui/alert "Maintenance" {:banner true})
(ui/spinner {:size :small :color "#3366ff"})
(ui/skeleton {:width 200 :height 12 :secondary true})
(ui/kbd "ctrl-s")
(ui/kbd "ctrl-k" {:outline true})
(ui/link "https://clojure.org" "Clojure")
(ui/icon :check)
(ui/badge 3 (ui/icon :bell))
(ui/badge {:icon :check :color "#22c55e"} (ui/icon :user))
(ui/clipboard "copy me")
(ui/avatar "Ada Lovelace")
(ui/avatar {:name "Ada" :src "https://example.com/ada.png" :size :large})
(ui/avatar-group {:limit 3 :ellipsis true}
  (ui/avatar "Ada") (ui/avatar "Grace") (ui/avatar "Alan"))
(ui/breadcrumb [{:id :home :label "Home"} "Project"])
(ui/group-box {:title "Audio" :variant :outline} …)
(ui/accordion open-id {:items [{:id :a :title "One" :content (ui/label "…")}]
                       :on-change set-open!})
(ui/description-list [{:label "Host" :value "GPUI"}])
(ui/description-list items {:orientation :horizontal :columns 2})
(ui/dialog open? {:title "Delete?" :variant :confirm :on-ok delete! :on-close hide!}
  (ui/label "This cannot be undone."))
(ui/alert-dialog open? {:title "Delete?" :variant :confirm :on-ok delete! :on-close hide!}
  (ui/label "Backdrop clicks do not dismiss this."))
(ui/popover open? {:trigger (ui/button "More") :on-open-change set-open!}
  (ui/label "Hint"))
(ui/hover-card {:trigger (ui/link "https://example.com" "@ada") :open-delay 0.2}
  (ui/label "Ada Lovelace"))
(ui/dropdown-menu [{:id :copy :label "Copy"} :- {:id :paste :label "Paste"}]
                  {:on-change handle!}
                  (ui/button "Edit"))
(ui/dropdown-button [{:id :csv :label "CSV"} {:id :pdf :label "PDF"}]
                    {:on-change handle! :variant :primary :selected true}
                    (ui/button "Export" export!))
(ui/context-menu items {:on-change handle!} (ui/data-table {:columns cols :rows rows :flex 1}))
(ui/native-menu
  [{:id :copy :label "Copy"} :- {:id :wrap :label "Word wrap" :checked wrap?}]
  {:id "edit-menu" :open? open? :position [120 40]
   :on-change handle! :on-open-change #(reset! !open? %)})
(ui/command
  [{:id :copy :label "Copy" :icon :copy :keywords [:duplicate]}
   :-
   {:label "Edit" :items [{:id :find :label "Find"}]}]
  {:id "palette" :placeholder "Type a command…"
   :menu-max-h 220
   :on-change handle! :on-query #(reset! !q %)})
(ui/status-bar {:left (ui/label "Ln 1") :right [(ui/kbd "ctrl-s") (ui/label "UTF-8")]}
  (ui/shimmer scan-path {:flex 1 :truncate true}))
(ui/list items {:selected sel :on-change set-sel! :searchable true :search-placeholder "Filter…" :height 200})
(ui/data-table {:columns [{:id :name :label "Name" :align :end :sortable true :fixed :left}
                          {:id :lang :label "Lang"}]
                :rows [{:id :ada :cells ["Ada" "Clojure"]}]
                :header-groups [[{:label "Identity" :span 2}]]
                :stripe true
                :cell-selectable true
                :row-height 40
                :selected {:row :ada :col :lang}
                :export-generation 1
                :on-change set-sel!
                :on-export (fn [{:keys [headers rows]}])})
(ui/table {:columns [{:label "Name"} {:label "Amount" :align :end}]
           :rows [["Ada" "$250"] ["Rich" "$150"]]
           :footer ["Total" "$400"]
           :caption "Recent invoices"
           :accessibility-label "Recent invoices"})
(ui/table {:accessibility-label "Staff"}
  (ui/table-header (ui/table-row (ui/table-head "Name") (ui/table-head {:align :end} "Amt")))
  (ui/table-body (ui/table-row (ui/table-cell (ui/avatar "Ada")) (ui/table-cell {:align :end} "$250")))
  (ui/table-footer (ui/table-row (ui/table-cell {:span 2 :align :end} "Total")))
  (ui/table-caption "Kit primitives"))
(ui/combobox selected {:options [{:id :clj :label "Clojure"} :rs]
                       :placeholder "Language"
                       :cleanable true
                       :search-placeholder "Filter…"
                       :on-change set-lang!})
(ui/combobox picked {:options langs :multiple true :on-change set-picked!})
(ui/rating 3 {:max 5 :on-change set!})
(ui/stepper :pay {:items [{:id :cart :label "Cart"} {:id :pay :label "Pay"}]
                  :on-change set-step!})
(ui/pagination 3 {:total 10 :on-change set-page!})
(ui/tree [{:id :src :label "src" :expanded true
           :items [{:id :lib :label "lib.rs"}]}]
         {:on-change set-node!})
(ui/sheet open? {:title "Inspect" :placement :right :on-close hide!}
  (ui/label "Details"))
(ui/notification {:variant :success :title "Saved" :message "ok"})
(ui/number-input 42 {:min 0 :max 100 :step 1 :on-change set!})
(ui/otp-input code {:count 6 :on-change set!})
(ui/color-picker "#3366ff" {:on-change set!})
(ui/date-picker "2026-09-02" {:on-change set!})
(ui/editor src {:language "rust" :height 200 :on-change set!})
(ui/virtual-list items {:selected id :on-change set! :height 200})
(ui/chart :line [{:id :a :label "A" :value 10}] {:height 180 :name "Desktop" :interactive true})
(ui/horizontal-bar-chart [{:id :src :label "src" :value 412}]
                         {:labels true :value-axis true})
(ui/area-chart [{:id :mon :label "Mon" :values [4 8]}]
               {:series [{:id :desk :label "Desktop" :stroke "#ff0000"} {:id :mob :label "Mobile"}]})
(ui/pie-chart slices {:inner-radius 42 :labels true})
(ui/radar-chart [{:id :speed :label "Speed" :values [80 55]
                  :content (ui/badge 1 (ui/label "Sp"))}]
                {:series [{:id :a :label "A"} {:id :b :label "B"}]})
(ui/sankey-chart [{:id :rev :label "Revenue"} {:id :cost :label "Cost"}]
                 {:links [{:source :rev :target :cost :value 55}]})
(ui/markdown "# Hello")
(ui/sidebar items {:selected id :side :left :on-change set!})
(ui/settings pages {:on-change (fn [{:keys [id value]}])})
(ui/dock {:items [{:id :files :side :left :label "Files"
                   :content (ui/markdown "…")}]})
(ui/resizable {:orientation :horizontal} pane-a pane-b)
(ui/message {:id "m1" :alignment :start
             :avatar (ui/avatar "Ada")
             :header (ui/message-header "Ada" "10:24 AM")
             :footer (ui/message-footer "Just now")}
  (ui/bubble "Hello from Kit.")
  (ui/bubble {:variant :ghost} "A quieter follow-up."))
(ui/message {:id "m2" :alignment :end}
  (ui/bubble "Outgoing"))
(ui/attachment {:id "file-1" :status :uploading :on-click open-file!}
  (ui/attachment-media {:src "preview.png" :size :lg
                        :overlay (ui/icon :loader)})
  (ui/attachment-title "notes.pdf")
  (ui/attachment-description "Uploading"))
(ui/marker "Today" {:variant :separator
                    :separator-style {:color "#7aa2f7"}})
(ui/message-scroller {:id "thread" :height 320 :padding 8
                      :jump-button-label "Jump to latest"
                      :jump-button-renderer {:label "Latest" :size :small :icon :arrow-down}
                      :scroll-to-item "row-1"
                      :scroll-generation 1}
  (ui/message {:id "row-1" :alignment :start} (ui/bubble "First"))
  (ui/message {:id "row-2" :alignment :end} (ui/bubble "Second")))
(ui/nav-stack {:id "nav" :stack [:home :detail] :transition 0.22
               :item :slide :overflow :hidden :height 180
               :on-forward-change #(reset! !forward %)}
  (ui/nav-page {:id :home} (ui/label "Home") (ui/button "Open" push-detail!))
  (ui/nav-page {:id :detail} (ui/label "Detail") (ui/button "Back" pop!)))
(ui/button "Save" save! {:tooltip "Write the file"})

:size :small on controls becomes wire :control-size so numeric :size stays pixel layout. Option ids are strings on the wire; :on-change restores the original Clojure id (:light not "light"). Two options that share a wire id (:dark and "dark") keep the first. nil on ui/select / ui/combobox clears the selection. :searchable true filters select/combobox options by label; nested :items are Kit SelectGroup sections. Group titles are not selectable values and are not in the callback id map, so a title that shares a wire id with a leaf ({:label "clj" :items [{:id :clj …}]}) restores the leaf. :focus-ring false is Kit FocusableExt (omit = Kit true). ui/combobox defaults search on and forwards :cleanable, :menu-width / :menu-max-h, :search-placeholder, :icon, :check-icon, :appearance, string :empty, and programmatic :query (ComboboxState::query / set_query; omitted / nil leaves native typing; "" clears). render_trigger and footer are not wrapped. ui/data-table :header-groups is Kit group_headers; :cell-selectable / :row-header are cell selection (:on-change is {:row … :col …} or a row id; row and column ids restore from separate maps); pixel :row-height is Size::Size; :export-generation plus :on-export dumps native headers / rows (host-owned column order after a header drag). ui/message-scroller :scroll-to-item / :scroll-to-end are Kit scroll_to_item / scroll_to_end (programmatic; omitted leaves native scroll; :scroll-generation re-applies the same target). ui/nav-stack is Kit NavStack: Clojure :stack is page ids root-first; children are ui/nav-page templates. Omitted stack is the first page; only :stack [] clears. An unknown page id rejects the trail. The host preserves the longest matching active prefix and applies Kit push / pop / forward / pop_to_root / replace; Rebuild is last resort. Re-adding the nearest popped id is Kit forward (retained entity) unless :reuse-forward false, which forces a fresh push and discards the forward branch. :replace-generation requests a same-id Kit replace() (fresh entity, forward kept) when the token changes on the current CljNavPage entity (not merely the catalog page id). Multi-step pops keep popped pages on that branch; restoring the trail is native forward calls. Setting the trail to just the root from depth > 2 is pop_to_root. :on-forward-change is Kit forward_views() nearest-first. :transition is seconds (Kit transition() only); :item is a host-evaluated recipe on the retained NavPage (mounted view(), index, phase, operation, eased progress, ordinary Styled keys — not a per-frame Clojure callback and not Kit's arbitrary AnyElement closure). :item :slide / :transition-style :slide is the showcase slide; a :match map Styled-refines the same page (:left / :opacity number or {:from :to} lerp). An explicit :item suppresses :transition-style. :overflow :hidden clips. Pages paint the overlay static subset, not list/data-table/editor.

GPUI Kit 0.6 coverage and remaining native extension gaps are recorded in the source parity audit. See widget composition for child/slot APIs, editor configuration and providers, and binding contract notes.

Return ui/window from app. :title, :chrome, and :width / :height only make sense there. :chrome :dev (default) shows the nREPL footer and the gpui-fps HUD; :chrome :app hides host chrome.

Use ui/title-bar as a direct child of ui/window to give GPUI Kit ownership of the custom titlebar. On macOS, the native traffic lights sit inside the unified toolbar. Kit supplies the platform window controls, dragging, double-click behavior, and default styling:

(ui/window {:title "cljpod" :width 1000 :height 700 :chrome :app}
  (ui/title-bar
    (ui/hstack {:flex 1 :justify :between}
      (ui/label "cljpod")
      (ui/button "Refresh" refresh!)))
  (ui/vstack {:flex 1 :padding 16}
    (ui/label "Application content")))

The optional leading style map accepts the usual layout and visual properties. For a taller toolbar, use (ui/title-bar {:height 56 :traffic-light-position [10 19]} ...). The position is a macOS [x y] pixel override; omitting it keeps Kit's default. Kit reserves space for the traffic lights; put padding on the toolbar's children if you want to keep that default left inset.

The initial tree selects the native titlebar and traffic-light position, so restart the app after adding/removing the direct title bar or changing the position. :title still sets native window metadata and updates live; visible title text is an ordinary child label. Windows without a direct ui/title-bar keep their existing native titlebar, independently of :chrome. See the runnable title-bar example.

Native platform actions (folder picker, reveal in Finder / the file manager) live in [gpui.platform :as platform]:

(platform/pick-directory
 {:title "Choose a folder"}
 (fn [{:keys [path cancelled error]}]
   (when path (swap! !state assoc :root path))))

(platform/reveal-path! "/tmp")
(platform/open-path! "/tmp")

pick-directory is asynchronous: it returns immediately and later calls on-result. On Linux the host uses the desktop portal, then zenity if the portal is unavailable. The zenity wait runs off the GPUI foreground executor.

Labels, vstack, and hstack accept :on-click (0-arg), so a list row can be a clickable stack.

:theme is a style on any node. Three kinds of value:

Appearance — :system (follow the OS, the default), :light, or :dark. Those pin GPUI Kit's Default Light / Default Dark.
Named palettes — a GPUI Kit theme the host ships: "Tokyo Night", :ayu-light, "Catppuccin Mocha". Names match case-insensitively; - and _ are spaces. ui/themes is that shipped list plus appearance keywords. It does not include custom themes.
Custom ThemeSets — ordinary Clojure maps registered with gpui.theme/register!, then referenced by name. A family name ("Catppuccin Violet") picks the light or dark member from OS appearance. A variant name ("Catppuccin Violet Dark") pins that config.

(ui/window
 {:title "Counter" :theme "Tokyo Night" :width 440 :height 400}
 (ui/vstack {:gap 16 :padding 16}
   (ui/label "Counter")
   (ui/button "+" inc! {:primary true})))

(ui/window
 {:title "Studio" :width 960 :height 640}
 (ui/hstack
  {:flex 1}
  (ui/vstack {:theme :dark :width 220 :padding 12} (ui/label "Nav"))
  (ui/vstack {:theme "Ayu Light" :flex 1 :padding 16} (ui/label "Canvas"))))

Define a custom palette as JVM Clojure data (GPUI Kit color tokens such as :primary.background). theme-set validates :name, :mode, and hex :colors; other ThemeConfig keys (:highlight, :font.family, :radius, :shadow) are kept and sent with Kit's JSON names. Register once from a theme namespace (not from app on every render). Names match the host: "My Theme", "my-theme", and :my_theme are the same set.

(ns my.themes
  (:require [gpui.theme :as theme]))

(def mine
  (theme/theme-set
   {:name "Mine"
    :themes [{:name "Mine Light" :mode :light :colors {:background "#eff1f5"
                                                       :primary.background "#7c3aed"}}
             {:name "Mine Dark" :mode :dark :colors {:background "#1e1e2e"
                                                     :primary.background "#cba6f7"}}]}))

(theme/register! mine)

;; in app:
(ui/window {:theme "Mine Dark"} ...)
;; or {:theme "Mine"} to follow OS light/dark within this pair

See examples/themes/catppuccin-violet for a full pair ported from utility_belt_gpui src/theme.rs (MIT OR Apache-2.0). That crate is not a runtime dependency.

JSON still works: put extra theme-set files (same schema as GPUI Kit themes) in ./themes or $CLJ_GPUI_THEMES. Those override bundled names. Clojure-registered sets override JSON. Hex :bg / :color still win on that node when you set them.

when returning nil, map, and nested vectors are flattened by ui/flatten-children.

Environment

Variable	Meaning
`CLJ_GPUI_BIN`	Path to a `clj-gpui` executable, skipping Cargo
`CLJ_GPUI_ROOT`	Library checkout containing `host/`
`CLJ_GPUI_APP_HOME`	Directory of the bundled host (set by packaged launchers)
`CLJ_GPUI_PORT`	Set by `gpui.dev` / `gpui.prod` for the host (do not set yourself)
`CLJ_GPUI_HOST`	TCP host for the host process, default `127.0.0.1`
`CLJ_GPUI_APP`	Root var if not passed to `gpui.dev`
`CLJ_GPUI_SRC`	Directory the watcher scans, default `src`
`CLJ_GPUI_NREPL_PORT`	Preferred nREPL port, default `7888`
`CLJ_GPUI_THEMES`	Extra GPUI Kit theme-set JSON directory (overrides bundled names)
`VK_ICD_FILENAMES`	Linux software Vulkan ICD (lavapipe)

Known limitations

Two processes, JSON copies. Fine for this slice. A future JNI path can keep the same Clojure API.
Whole-window rerender. No incremental DOM-style diffing.
GPUI Kit Theme is process-global. Nested :theme restores the previous palette before a sibling paints. That is safe for one window; a second window would share the global. Semantic headless tests cover one production window; the explicit macOS Metal target covers pixels. Native smoke tests remain necessary for titlebars, menus, focus/IME, and OS capture.
Callback ids are per-tree. In-flight clicks after a reload can miss if the id was rebuilt.
Linux Vulkan. The Rust interaction suite and clojure -M:protocol-test are headless. The Metal pixel target is unsupported on Linux. For a real window without a discrete GPU, Mesa lavapipe works (VK_ICD_FILENAMES=/usr/share/vulkan/icd.d/lvp_icd.json).
preview-png is an OS window shot, not GPU readback. Linux/Windows spawn clj-gpui --capture-preview --pid <host-pid> and xcap 0.4.1. That Linux path is X11/XCB: X11 and XWayland windows capture; native Wayland windows are not reliably enumerated and may return nil. macOS captures in-process with ScreenCaptureKit, and only then disables GPUI's occluded display-link pause (zed#63217). Missing macOS Screen Recording permission returns nil. Xvfb/X11 is the deterministic Linux CI path.
Packaging is native-only (macOS .app on macOS, AppImage/deb on Linux). See Packaging.

Packaging

A packaged app is still two processes: a bundled JRE running gpui.prod, plus the bundled GPUI host. gpui.prod does not start nREPL, watch source, or invoke Cargo, and it always suppresses the development footer and FPS HUD even when the application uses :chrome :dev locally.

In the application repo, add gpui.edn:

{:name "my-app"
 :version "0.1.0"
 :main my.app/app
 :id "com.example.my-app"
 :icon "resources/icon.png"
 :title "My App"
 :description "A native GPUI application"}

and a :build alias that puts tools.build on the classpath without replacing project deps (:extra-deps, used with -X):

:aliases
{:dev {:main-opts ["-m" "gpui.dev" "my.app/app"]}
 :build {:extra-deps {io.github.clojure/tools.build {:mvn/version "0.10.10"}}
         :ns-default gpui.package
         :exec-fn gpui.package/package}}

Then, on the target OS:

clj -X:build package

The project template and every checked-in example already contain a gpui.edn and this build alias. For a packaged-app smoke test on macOS:

cd examples/widgets
clj -X:build package
open target/package/widgets.app

Use -X (not -T): gpui.package lives in the clj-gpui library, so the project deps must stay on the classpath. -T would replace them. clj -X:build with :exec-fn gpui.package/package is the same default.

Host OS	Output under `target/package/`
macOS	`Name.app`
Linux	`name-version-<arch>.AppImage` and `name_version_<arch>.deb`

The .app / AppImage / .deb include a jlink JRE (invoked via the JDK's absolute jlink, not PATH), the application uberjar, and the GPUI host. End users do not need Rust, Cargo, the Clojure CLI, or a system JDK.

If the application repo has LICENSE and/or NOTICE at the root, those files are copied into the package:

Package	Destination
macOS `.app`	`Contents/Resources/licenses/`
Linux AppImage	`usr/share/doc/<name>/`
Linux `.deb`	`/usr/share/doc/<name>/`

Additional files can be listed in gpui.edn as :license-files (paths relative to the project root). This is not a third-party license scanner.

Linux AppImage packaging uses a system appimagetool when that command is on PATH. Otherwise it downloads the pinned appimagetool 1.9.1 release (not the mutable continuous tag) and checks a SHA-256.

Other tasks: clj -X:build uberjar, clj -X:build host, clj -X:build jre.

macOS codesigning / notarization is not done by package. After a local .app exists:

codesign --deep --force --sign - MyApp.app          # ad-hoc, local
# later, with a Developer ID:
codesign --deep --force --options runtime --sign "Developer ID Application: …" MyApp.app
xcrun notarytool submit MyApp.app --wait --keychain-profile "notary"
xcrun stapler staple MyApp.app

License

MIT, unless a later commit says otherwise. GPUI is Apache-2.0. Bundled palettes under host/themes/ come from GPUI Kit (Apache-2.0). The Catppuccin Violet example is adapted from utility_belt_gpui (MIT OR Apache-2.0).

Navigation Menu

Repository files navigation

clj-gpui

Quick start

Hot reload

Use it in your project

Application code

Architecture

Why this architecture

Rerendering

Hot reload

Formatting

Repository layout

Clojure UI API

Environment

Known limitations

Packaging

License

About

Releases

Packages

Contributors

Languages

Name		Name	Last commit message	Last commit date
.github/workflows		.github/workflows
docs		docs
examples		examples
host		host
scripts		scripts
src/gpui		src/gpui
template		template
test/gpui		test/gpui
.cljfmt.edn		.cljfmt.edn
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
deps.edn		deps.edn
rust-toolchain.toml		rust-toolchain.toml

Latest commit

History

Folders and files

Repository files navigation

clj-gpui

Quick start

Hot reload

Use it in your project

Application code

Architecture

Why this architecture

Rerendering

Hot reload

Formatting

Repository layout

Clojure UI API

Environment

Known limitations

Packaging

License

About

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
