Lux is an image processing utility for the Light L16 camera. It is independently built to be a cross-platform replacement for the original Lumen software. Its goal is to offer byte-exact processing to the original Lumen software while also adding new features and improvements.
Currently, only the Lux 'light' CLI exists. This is meant to be a lightweight GUI replacement. Eventually, a full GUI will be developed.
- .NET 10: The SDK to build from source. The precompiled releases bundle the runtime and need no .NET install.
- ffmpeg on PATH for the animated parallax formats (parallax-wiggle, parallax-wiggle-interp, parallax-orbit, parallax-single, parallax-rack, parallax-dolly).
- Frames are produced by Lux, the GIF/WebP/AVIF/APNG container is written by ffmpeg. The CLI will exit if it cannot be found and one of these formats is requested.
- libgphoto2 on Linux only if MTP connection to the camera is desired
- .DNG and .JPG outputs 1:1 with Lumen
- MTP device connection for querying storage and pulling images (only tested on Linux right now)
- .HDR and .PPM export formats (contained in Lumen code but never used)
- GDepth and stereo depth map export support
- Individual module image export support (JPG only)
- Parallax effect animations and stills
- Full control over the image processing pipeline
- Bulk processing with multithreading
- Lux.Engine — the image-processing engine (
.lriparse, module ISP, registration/depth, fusion, ResAmp, colour profile, DNG/JPEG/HDR output, camera pull). Reused by the CLI and (later) a GUI. - Lux.Cli —
lux-light:convert(the one picture-producing verb — Lumen's DNG, JPG, HDR, PPM and JPEG+GDepth, plus the Lux formats that share the same render: the stereo depth pair,lens-framesand the experimentalparallax-*animations and stills),inspect,profile,isp,isp-run,mod-info,devices,pull,version.
Precompiled builds: download the archive for your platform from the Releases page,
extract it and run lux-light from the extracted folder. It is self-contained, so no .NET install is needed.
tar -xzf lux-light-<version>-linux-x64.tar.gz # a .zip on Windows
./lux-light convert <file-or-dir> [--out-directory out] [--formats all] [-j threads]
macOS: the binaries are not signed, so clear the quarantine flag once after extracting: xattr -d com.apple.quarantine lux-light.
Build from source (needs the .NET 10 SDK):
dotnet build Lux.slnx -c Release
./Lux.Cli/bin/Release/net10.0/lux-light convert <file-or-dir> [--out-directory out] [--formats all] [-j threads]
The full CLI usage instructions are at the bottom of this document.
Note: a full export can take a few minutes and use up to 7G of memory per file. convert processes inputs in parallel
with one thread per CPU by default, so on a batch pass -j with a count that keeps threads × 7G within your RAM.
- DNG and JPG are byte-exact to Lumen (excluding the dense-stereo race condition and assuming processed in Lumen with no pre-existing .lris).
- Performance needs some work, exports take 2-4 minutes to process all formats
- The tool is heavily tested on Linux, Windows and macOS testing would be appreciated
- Automated builds are not up yet, coming soon
All samples are one capture, L16_00049, written by lux-light convert and checked in under
Samples/. Every image links to the full-size file on GitHub.
The Lumen-identical JPG export (format jpg) at full size.

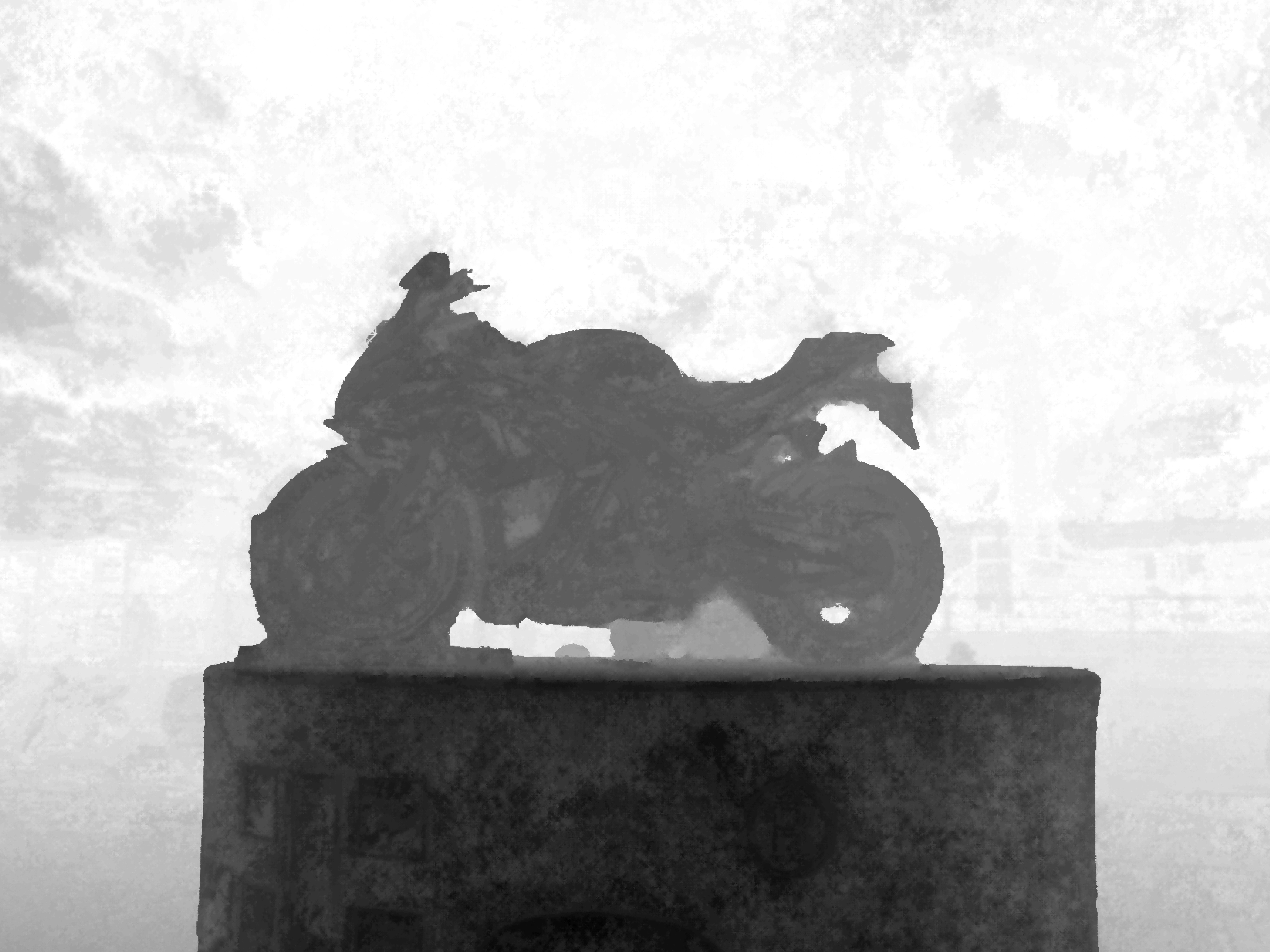

The stereo depth map (format depth): the JPG half of the <stem>_depth.f32 + <stem>_depth.jpg pair, on the exported grid.
Every module of the capture as its own display JPG (format lens-frames): the five 28 mm A modules, of which A2 is the
monochrome module, and the five 70 mm B modules.
| A1 (28 mm) | A2 (28 mm, monochrome) | A3 (28 mm) | A4 (28 mm) | A5 (28 mm) |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| B1 (70 mm) | B2 (70 mm) | B3 (70 mm) | B4 (70 mm) | B5 (70 mm) |
|---|---|---|---|---|
 |
 |
 |
 |
 |
Animated GIFs synthesised from the same capture.
Format parallax-wiggle: the colour A-module frames, colour-matched and swept in spatial order. Module renders only, no registration.
Format parallax-wiggle-interp: virtual viewpoints along the rig's axis, synthesised from the depth, with disocclusions filled from the other real modules.
Format parallax-orbit: the same synthesis on a closed circular path.
Format parallax-single: single-view 2.5D, the sweep with no multi-view fill.
A Light L16 .lri is a container of 10–16 independent camera frames, one per module that fired; a stacked low-light
capture carries several frames per module. Producing one image is therefore a
multi-camera fusion problem, not a single-sensor develop. The pipeline runs in five phases — load, per-module
ISP, registration + depth, fusion, export render — and only the last phase differs between output
formats. All formats share one PipelineCache; the fusion render is ~74 % of wall-clock, so producing four formats
costs barely more than one.
Verification status: DNG, JPEG, PPM and Radiance HDR are byte-identical to Lumen apart from the export timestamp;
JPEG+GDepth is byte-identical including the embedded depth map. The output does not depend on the CPU: the approximate
reciprocal and reciprocal square root that Lumen's kernels rely on (SSE rcpps/rsqrtps, whose result tables differ between
CPU vendors) are computed from a fixed table model, so an AMD host produces the same bytes as an Intel one, and the same
bytes as Lumen running on Intel hardware.
.lri is a chain of LELR blocks: 32-byte header (magic, u64 block length, u64 message offset, u32 message
length, u8 type) followed by a protobuf message. Type 0 = LightHeader (merged across blocks; carries a
CameraModule per camera), type 1 = ViewPreferences, type 2 = GPSData. Frame data lives at
blockBase + surface.data_offset.
Modules are identified by CameraID: A1–A5 (28 mm), B1–B5 (70 mm), C1–C6 (150 mm). The header's
image_reference_camera names the reference module, which selects several downstream branches.
| format | layout | decode |
|---|---|---|
RAW_PACKED_10BPP |
10-bit packed Bayer, 8 px per 10 bytes | bit unpack |
RAW_BAYER_JPEG |
BJPG container: header, encoder compand LUT, 256-entry u16 dequant LUT, then baseline JPEG streams |
TurboJPEG JDCT_ISLOW, TJPF_GRAY, then dequant + scatter |
The Bayer-JPEG variant is chosen by CFA: version 0 stores four half-resolution planes, one per CFA site
(scattered back as dst[(2y+(p>>1))·stride + 2x + (p&1)]), so the DCT never sees the mosaic pattern; version 1
stores one full-resolution plane and is used only for the monochrome module, which has no pattern to split.
In low light the camera writes N frames per module (one CameraModule block each, distinguished by
frame_index). Observed stacks are always 4 frames with identical exposure, gain, lens and mirror position.
lt::StackFusion merges them per module, upstream of everything else: the same 16×16 wavelet block merge used by
the inter-module fusion, with per-frame optical flow, outlier rejection, Hann-window accumulation and ÷N. Frame 0
is the reference. There is no exposure-ratio term — the algorithm assumes identical frames, which is what the
camera produces.
Consequence: for a stacked capture the module ISP sets hot_pixel_removal, hot_pixel_leakage_removal and
highlight_restore to none. The stack merge rejects transient outliers better than a single-frame spatial
filter can, so the dedicated stages are turned off rather than allowed to damage real detail.
Derived once per capture and used throughout: AsShotNeutral (from the reference module's colour calibration at
the capture CCT/tint), BaselineExposure (log₂ of the gain·integration-time ratio), lens_shading.multiplier
(from CFA site histograms of the reference frame), and per-frame black level estimates.
Runs independently on each module's Bayer frame, in the Bayer domain, at a config level that selects resolution and denoise strength. Stage order as executed (level 0, colour module):
| # | stage | algorithm | purpose |
|---|---|---|---|
| 1 | HotPixelRemoval |
per-CFA-site ring/diagonal comparison against σ-tables at the frame's gain; candidate when excess > σ[base]·k·4 |
remove stuck sensor sites |
| 2 | HighlightRestore |
reconstruct clipped channels from unclipped neighbours | recover blown highlights |
| 3 | Placeholder (linearize) |
black subtract, normalise by 1/(white−black), apply WB scale |
to normalised float |
| 4 | CrossTalkCorrection (ir_correction) |
IR blend estimated from R/B site ratios | remove IR contamination |
| 5 | Demosaicking |
light_v1 (gradient-directed) at full res; collapse2/4/8 (box-collapse) at lower levels |
Bayer → RGB |
| 6 | ColorNoiseReduction |
vec4 Gaussian/Laplacian pyramid, 5-tap [.05 .25 .4 .25 .05] |
chroma denoise |
| 7 | AdaptiveDesaturation |
shadow/highlight cutoff-driven saturation roll-off | tame extreme chroma |
| 8 | Denoising (hybrid) |
bilateral + patch NLM over an STD plane, window 3/5/7/9 by ISO | luma denoise (off at level 0) |
| 9 | PostProcessing |
sharpen / local contrast | detail |
| 10 | LensShading |
calibrated per-module vignetting grid | flat field |
Branches: stages 1–2 are gated on frames-per-stack < 2, not on sensor colour. The monochrome module (A2,
sensor_bayer_red_override = (-1,-1)) never runs this ISP in Lumen — its path is the fusion one — so CFA-dependent
stages here have no defined behaviour on it.
StereoAsyncApi builds the geometric relationship between modules:
- Setup — per-camera crops, view poses, and the initial
AlignedCalibpair from factory calibration. - Feature matching, per pyramid level, per non-reference camera:
- top level, A-reference:
initLowerACamera<8>— 8×8 templates, calibration- and plane-depth-guided prediction; - top level, B4/C5 reference:
initLowerBCamera<8>— no calibration or plane depth, prediction isref − offset, search is a ±w/4epipolar band of half-width 5, scoring is zero-mean SAD; - lower levels:
matchFeaturesPerLevelLowerCams<8>/…HigherCams<12>. Constants: Lowe ratio 0.8, reverse ratio 0.95, score 10.0.
- top level, A-reference:
- RANSAC gate — per-view inlier selection with distinct thresholds for the two views.
- Bundle adjustment —
LightBAover the observation set, then per-camera write-back for cameras with ≥ 26 usable observations. - Mirror-angle refinement — coarse angular search for the movable-mirror B/C modules.
Output: per-camera (view, module) AlignedCalib pairs.
Truncated-SAD cost volume + semi-global matching on the half-resolution green plane, then DenseUpsampleLayer
(guided upsample against a ReferenceGuide built from the reference frame) to a full-frame inverse-depth image
covering the whole canvas.
Note: Lumen's dense stage is run-to-run non-deterministic — two runs over the same capture disagree in ~1 500 of 3.2 M level-5 samples. Byte-exact comparison of a level-0 export requires pinning to the matching run.
Merges the reference-group modules onto the reference grid. 16×16 block wavelet merge: per-block optical flow
(BlockFlow) against the reference, CDF-style wavelet decomposition, coefficient Shrink driven by the sensor
noise model at the frame's gain, Hann-window accumulation, normalise by contributor count. Pyramid depth is 4
levels (5 for a C-group reference — unreachable in practice).
MonoFusion folds the monochrome module's luminance detail into the colour result over a 5-level wavelet pyramid.
Super-resolution using the higher optical group (B for an A reference, C for a B reference). Coarse alignment,
CDF 9/7 analysis, per-module preparation and warping through the dense depth (WarpField), merge and inverse
merge. This is the step that turns 13 MP sensors into a 52 MP output.
LumenProfile computes, per capture:
- Illuminant entries — every
ColorCalibrationof the reference module, with CCT/tint from its (x, y). - ColorMatrix 1/2 — the proto
color_matrixof the lowest- and highest-CCT entries, verbatim. - ForwardMatrix 1/2 — a refit, not the proto value: a Ceres line-search optimisation over Lab error using the Macbeth reference data.
- HueSatMap 1/2 — a 32×32×1 hue/saturation/value LUT from a thin-plate-spline fit of the same data, in linear ProPhoto D50.
- Tone curve, AsShotNeutral, BaselineExposure.
setInputDataStream establishes the canvas: canvas = (int)(sensor · f) snapped to the sensor's 64×48 aspect grid,
where f is the focal ratio of the next optical group up over the reference group — 70/28 = 2.5 for an
A reference, 150/70 ≈ 2.143 for a B reference. Export level 0 is crop × canvas, likewise snapped; the crop comes
from ViewPreferences. Five levels are built, each a halving.
GetExportTransformOutput then resolves a requested output size to a source level, a source rect and a scale. When
scale > 1.5 the resampler is a separable Lanczos-2 blur followed by bilinear warp; otherwise it is a 64-phase
Catmull-Rom (ImageWarpClamped<2>).
The output ISP is gated on (fmt | 4) == 4, i.e. only JPEG and JPEG+GDepth re-run it. Formats 1, 2 and 3 take
the float render directly.
| fmt | output | path |
|---|---|---|
| 0 | JPEG | output ISP → 8-bit → libjpeg-turbo baseline, quality 98, 4:2:0, standard Huffman tables, Exif + LibCP comment |
| 1 | PPM | float → ×255, cvtps2dq (round-half-to-even), saturate → P6 header + flat RGB |
| 2 | DNG | float tiles → vignetting removal → resample → ×16384 → lossless JPEG (SOF3, predictor 1) tiles → DNG container |
| 3 | Radiance HDR | float → RGBE, flat uncompressed, #?RADIANCE header; scene-linear camera raw, not display-referred |
| 4 | JPEG + GDepth | fmt 0, plus the depth map as XMP |
Runs in the Color domain on the fused tile, with a constant halo of 64:
| slot | stage | algorithm |
|---|---|---|
| 2 | ÷ neutral | divide by AsShotNeutral |
| 10 | ColorCorrection (optimized) |
matrix + CCT-interpolated HSV LUT, 33×33 bilinear hue/sat, in linear ProPhoto D50, gamut clip |
| 11 | PostProcessing |
sharpen |
| 12 | LensShading (inverse) |
re-apply shading model inverted |
| 13 | ToneAdjust (laplacian_pyramid) |
local Laplacian tone adjustment |
| 14 | ContrastAdjust |
0.217·(x/0.217)^(2^(0.3a)) via fast log2/exp2 |
| 15 | ToneMapping |
ACR-family LUT + RGBTone hue preservation, then ProPhoto → sRGB |
The tone-mapping variant (light_v1 / light_v2 / acr) is selected by a renderer flag that differs between the
GUI and a headless render; both branches are implemented.
The application sets export property 0x13 from the format: fmt ≤ 1 → 4 (sRGB), fmt == 2 → 0 (none),
fmt == 3 → 1 (linear sRGB), anything else throws — which is why format 4 is unreachable from Lumen's UI. A DNG
therefore carries ColorSpace = 65535 and no Interop IFD; a JPEG carries ColorSpace = 1. For formats 1–3 the
property is inert: those paths never read the output tuning.
The depth map comes from a dedicated double-buffered depth image cache at pipeline level 1, holding
InverseDepthClip(ImageResample<0>(InverseDepth(fullDepth)), 100000) — metric millimetres, resampled nearest in
inverse-depth space, clipped at 100 m. It is warped to the export grid by the same transform as the colour image,
scanned for Near/Far, quantised to 8-bit by
E = recip(d·(far − near)) · (d − near) · (255·far)
encoded as a grayscale JPEG, base64'd into GDepth:Data, and split across extended-XMP APP1 chunks of 65 458 bytes.
Far is always the 100 m clip constant, not a scene value, so the top of the range is coarsely quantised.
Inverse mapping, for consumers: d = far·near / (far − u·(far − near)) with u = E/255.
| option | effect |
|---|---|
| export size / level | selects the source level and resampler via GetExportTransformOutput |
| crop | from ViewPreferences; sets export level 0 relative to the canvas |
| rotation | baked into the transform; Orientation stays 1 |
| tone mapping type | acr / light_v1 / light_v1_lowlight / light_v2 |
| compression | DNG: uncompressed strips or lossless JPEG tiles |
| colour space | property 0x13; only consumed on the JPEG path |
| exposure / f-number / ISO / focal | Exif values; AllInFocusFNumber is computed as aperture · equiv35 / physical |
lux-light <command> [options] [input...]
lux-light --help
| Option | Description |
|---|---|
convert <input...> |
Process a .lri and export it exactly as Lumen does: the image pipeline run once, written out in any combination of export formats (see below). Everything comes from the .lri, and no option changes the Lumen pixels unless you pass one from ADJUSTMENTS; --level/--size/--origin only pick the output grid. |
inspect <input...> |
Print the load-time state derived (neutral, ev, multiplier) |
mod-info <input...> |
Per-module CameraID, gain, exposure, frame black, relative_brightness |
profile <input...> |
compute and print the colour profile (matrix fit, ForwardMatrix, HueSatMap) |
isp <input...> |
Module-ISP tuning per config level, stage list, white-balance state |
isp-run <input...> |
Run the module ISP over a centre ROI, write a gamma-encoded PPM |
devices |
List connected MTP cameras |
pull [options] |
Pull matching files off the camera |
version [--offline] |
Print this build's version and check GitHub for a newer release |
convert, inspect, mod-info, profile, isp and isp-run take one or more .lri files and/or directories (directories are scanned for *.lri). devices, pull and version take no input files.
With no options specified, convert replicates Lumen output exactly: DNG (fmt 2) + companion JPG (fmt 0), full size, every value processed from the .lri. The flags marked * depart from that, and the run echoes which were applied.
| Option | Description |
|---|---|
-o, --out-directory <dir> |
Write <stem>.<ext> per input (default: a lux_convert/ beside the .lri) |
--out-file <path> |
Name the output file (only when the run makes exactly one file) |
-j, --threads <n> |
Inputs converted in parallel (default: CPU count) |
--render-threads <n> |
Threads per input for the tile render (default: CPU count ÷ the inputs converted at once; 1 = sequential) |
--formats <list> |
Original (extended): dng, jpg, hdr, ppm, jpg+depth New: depth, lens-frames, parallax-wiggle, parallax-wiggle-interp, parallax-orbit, parallax-single, parallax-rack, parallax-dolly, parallax-dof, parallax-anaglyph, parallax-crosseye, parallax-sbs, parallax-still all: every format above except hdr and ppm Comma-separated (default dng,jpg) depth is the metric-millimetre stereo pair (<stem>_depth.f32 + <stem>_depth.jpg) on the exported grid. The Lux formats are named <stem>_<format>.<ext>; lens-frames writes <stem>_<module>.jpg. |
| Option | Description |
|---|---|
--level <n> |
export level, 0 = full size (default) |
--size <w,h> |
explicit output size (default: the level's export window) |
--origin <x,y> |
level-0 export window origin |
| Option | Description | |
|---|---|---|
| * | --rotate <90|180|270> |
bake the orientation (Orientation stays 1). All four raster formats; a depth map written alongside them follows the same rotation. Not combinable with the parallax formats (their rig geometry is in the unrotated frame) |
| * | --fnum <f> |
Exif FNumber [dng, jpg, jpg+depth] |
| * | --iso <n> |
Exif ISO [dng, jpg, jpg+depth] |
| * | --focal <n> |
Exif focal length in mm [dng, jpg, jpg+depth] |
| Option | Description | |
|---|---|---|
| * | --dng-cs <n> |
colour-space property 0x13 (default 0 = none, the app path) |
| * | --dng-tone <profile> |
acr | light_v1 | light_v1_lowlight | light_v2 |
| * | --dng-comp <0|1> |
0 uncompressed, 1 lossless JPEG (default) |
(each of these also applies to jpg+depth)
| Option | Description | |
|---|---|---|
| * | --jpeg-cs <n> |
colour-space property 0x13 (default 4 = srgb) |
| * | --jpeg-quality <n> |
libjpeg quality (default 98) |
| * | --jpeg-sub <0|1|2> |
chroma subsampling (default 2 = 4:2:0) |
| * | --jpeg-v2 |
the renderer+0x64 v2 tone-mapping gate |
| * | --jpeg-sharpening <v> |
the renderer's sharpening property (ParamFloat 13, -100..100; default 5 = Lumen's export state) |
| * | --jpeg-modify <ts> |
Exif 0x0132 ModifyDate, YYYY-MM-DDTHH:MM:SS (default: now) |
| * | --jpeg-comment <s> |
the JPEG COM marker text |
| * | --jpeg-software <s> |
the Exif Software string |
| Option | Description | |
|---|---|---|
| * | --hdr-cs <n> |
colour-space property 0x13 (default 1 = linear_srgb) |
(no options)
(no options)
(Each module of the capture as a display JPG through the ported module ISP. A STACKED capture has several frames per module: all writes every one as <stem>_f<k>_<module>.jpg, an index picks one, and the default is frame 0, the frame Lumen's StackFusion references.)
| Option | Description |
|---|---|
--lens-quality <n> |
JPEG quality 1-100 (default 92) |
--lens-ev <float> |
exposure adjust in stops (default 0.95) |
--lens-level <n> |
module-ISP config level (default 0 = full-res, no denoise) |
--lens-profile <p> |
CIAPI RendererProfile 0-3 (default 3 = Desktop) |
--lens-modules <list> |
comma-separated module filter, e.g. A1,B4 |
--lens-stack <all|n> |
which frame of a stacked capture (default 0) |
(EXPERIMENTAL: The base imagery is the pipeline's module-ISP frames, or this run's JPEG render and its metric depth. Only the 28 mm A array is a multi-view rig; a telephoto capture has no A modules, so parallax-wiggle refuses it and the depth formats run single-view.)
| Option | Description |
|---|---|
parallax-wiggle |
A-group frames, colour-matched, swept in spatial order. Module renders only, no registration [ffmpeg] |
parallax-wiggle-interp |
N virtual viewpoints along the rig's axis, synthesised from the depth, disocclusions filled from the other real modules [ffmpeg] |
parallax-orbit |
the same synthesis on a closed circular path [ffmpeg] |
parallax-single |
single-view 2.5D: the sweep with no multi-view fill [ffmpeg] |
parallax-rack |
animated rack focus [ffmpeg] |
parallax-dolly |
dolly zoom, pulling back while zooming in [ffmpeg] |
parallax-dof |
synthetic depth of field, one PNG still |
parallax-anaglyph |
red/cyan (Dubois) anaglyph of a synthesised stereo pair, PNG |
parallax-crosseye |
cross-eye side-by-side stereo pair, PNG |
parallax-sbs |
parallel-view side-by-side stereo pair, PNG |
parallax-still |
one synthesised viewpoint, PNG |
Every format but parallax-wiggle forces the level-0 build (announced, as jpg+depth is) and synthesises from this run's JPEG render at --level, downscaled to --parallax-size: --level 2 renders the base at 2608 px, plenty for a 1600 px animation and far faster than full size.
| Option | Description |
|---|---|
--parallax-format <c> |
animation container: gif (default) | webp | avif | apng |
--parallax-size <n> |
long edge of the working image in px (default 1600; 0 = native, for parallax-wiggle) |
--parallax-ms <n> |
per-frame duration in ms (default 100 for parallax-wiggle, 70 for -rack and -dolly, 60 otherwise) |
--parallax-frames <n> |
virtual viewpoints / animation frames (default 24) |
--parallax-loop <k> |
pingpong (default) | forward (the orbit is closed and plays forward) |
--parallax-fill <k> |
donors (default: disocclusions from the other real A modules, then inpaint) | inpaint | none (holes left black, to see where they are) |
--parallax-path <k> |
sweep (default, along the rig's dominant axis, 12 deg off horizontal from the factory extrinsics) | arc | line, for parallax-wiggle-interp and -single |
--parallax-baseline <mm> |
peak-to-peak path extent (default 71.49, the widest physical colour baseline A4-A5; usable to about twice that) |
--parallax-converge <k> |
convergence plane: auto (default, the median depth) | none | metres. Everything at that depth stays fixed and the scene swings around it |
--parallax-converge-at <x,y> |
read the convergence depth off the depth map at that pixel of the working image instead |
--parallax-ipd <mm> |
stereo interocular distance (default 25 for the anaglyph, 63 for the side-by-side pairs; 63 with a near foreground is hard to view) |
--parallax-anaglyph <k> |
dubois (default, least-squares de-ghosting) | colour | grey |
--parallax-focus <m> |
parallax-dof focus distance in metres (default: the 10th-percentile depth) |
--parallax-focus-at <x,y> |
read the focus depth off the depth map at that pixel instead |
--parallax-aperture <mm> |
aperture DIAMETER for -dof and -rack (default 20 = f/1.4 on the A group's 28 mm equivalent) |
--parallax-layers <n> |
depth layers in the composite (default 8) |
--parallax-rack <m1,m2> |
rack the focus from m1 to m2 metres (default: the 10th- to the 90th-percentile depth) |
--parallax-rack-at <x1,y1;x2,y2> |
rack between the depths at two pixels instead |
--parallax-subject <m> |
parallax-dolly: the depth held constant, metres (default: the 10th percentile) |
--parallax-subject-at <x,y> |
read it off the depth map at that pixel instead |
--parallax-dz <mm> |
dolly travel (default 400; positive pulls back and zooms in, the one direction a single capture can carry — negative is clamped) |
--parallax-t <tx,ty> |
parallax-still: the virtual camera translation in mm (default 40,0) |
--parallax-quality <n> |
WebP encoder quality (default 88) [--parallax-format webp] |
--parallax-crf <n> |
AVIF encoder crf (default 18) [--parallax-format avif] |
--parallax-order <k> |
parallax-wiggle frame order: sweep (default, along the rig's dominant axis from the factory extrinsics) | label (module-name order) | an explicit list, e.g. A5,A1,A3,A4 |
--parallax-pivot <x,y,w,h> |
parallax-wiggle: hold a region still so the scene swings around it; integer shift only, no resampling. Native sensor pixels |
(none — inspect takes only input paths)
(none — mod-info takes only input paths)
(none — profile takes only input paths)
| Option | Description |
|---|---|
--isp-level <n> |
module-ISP config level (default 0; -1 prints every level 0-5) |
--profile <p> |
CIAPI RendererProfile 0-3 (default 3 = Desktop) |
| Option | Description |
|---|---|
--isp-level <n> |
module-ISP config level (default 0) |
--profile <p> |
CIAPI RendererProfile 0-3 (default 3 = Desktop) |
(the PPM is written beside the .lri as <stem>_isp_l<n>.ppm)
(none)
| Option | Description |
|---|---|
-o, --out-directory <dir> |
file destination (default: ./lux_pull) |
--ext <list> |
extensions to include (default .lri) |
--glob <pattern> |
filename glob, e.g. "L16_004*" |
--since <date> |
only files modified on/after this date |
--overwrite |
re-download even if a same-size file exists locally |
--list |
list matching files without downloading |
| Option | Description |
|---|---|
--offline |
print the version only, without asking GitHub |
Exit status: 0 up to date (or no release published yet), 1 a newer release is available, 2 the check could not be made (no network, GitHub error). The release page is https://github.com/mprovenz/lux/releases.
| Option | Description |
|---|---|
-h, --help |
this help |
* For diagnostic / development use only
| Option | Description |
|---|---|
LUX_VERBOSE=1 |
convert: per-file progress detail, and the full exception trace when a file fails instead of just its message |
LUX_NO_PROGRESS=1 |
convert: no in-place progress lines (they are also off when stderr is not a terminal or LUX_VERBOSE=1 is set) |
LUX_PROGRESS_TRACE=1 |
convert: print every progress update as a line (phase, done/total) — for debugging the phase flow |
| Option | Description |
|---|---|
LUX_CC_FM=<fm1;fm2> |
replace the fitted ForwardMatrix1/ForwardMatrix2 in colour correction with two space-separated 9-float matrices |
LUX_CC_M=<m> |
replace the camera→working matrix outright (9 floats, or 0x-prefixed bit patterns), bypassing the fit and the CCT interpolation |
LUX_CNR_NEUTRAL=r,g,b |
colour-noise reduction uses this neutral instead of the ISP stats' |
LUX_CNR_NOEXT=1 |
colour-noise reduction reads no pixels outside its own region (drops the ±2-pixel ring) |
LUX_FRAME_BLACK=<f> |
linearize uses this black level instead of the stats'/frame's |
LUX_FUSION_SRC_BLACK=db|estimate |
the black level for the fusion's non-reference source frames: db = the sensor database value, estimate = the per-frame estimate |
LUX_GUIDE_SKIP=<list> |
set these comma-separated stages to type "none" in the reference-guide ISP tuning |
LUX_JPEG_ROUND=rne |
the JPEG export stores through the display path's round-half-to-even convert instead of the export path's round-half-away-from-zero |
LUX_LU_RANK=rank |
the Ceres line search's FullPivLU uses the Eigen 3.3 rank threshold instead of the 3.2 nonzero-pivot rule Lumen's ceres.dll behaves like |
LUX_NO_GUIDE=1 |
registration runs without building the reference guide image |
LUX_NO_MONO=1 |
force the colour fusion branch on a capture that has a monochrome module |
LUX_SGM_XSW=1 |
the SGM cost sweep clamps its forward x start to W instead of W-1 |
LUX_SKIP_MISSING=1 |
an unimplemented stage is skipped with a warning instead of throwing |
LUX_SKIP_STAGE=<list> |
these comma-separated stages keep their padding and alignment but are never run |
LUX_STACK_MARGIN=<n> |
ISP tile margin for a stacked capture's reference fusion, instead of the halo the sensor gain selects |
LUX_STEREO_DEMOSAIC=<t> |
the demosaicking type of the stereo ISP tuning (default collapse2) |
LUX_STEREO_SKIP=<list> |
set these comma-separated stages to type "none" in the stereo ISP tuning |
LUX_STEREO_TILE=<n> |
the stereo ISP work-image tile size (default 256, Lumen's) |
LUX_TELE_CFG=<n> |
the telephoto module's ISP config level (default 1, Lumen's) |
LUX_TELE_ONLYRECT=x0,y0,x1,y1 |
run the telephoto ISP only for that one grown rect; every other rect comes back zeroed |
LUX_TELE_SET=k=v;k=v |
apply these tuning overrides to the telephoto module's ISP tuning |
LUX_WARP_ORDER=cols|rows|swap|prod |
accumulation order of the 6-tap warp interpolation (default cols) |
| Option | Description |
|---|---|
LUX_BIL_DEBUG=1 |
the bilateral kernel window and size at each call |
LUX_CC_DEBUG=1 |
the colour-correction CCT interpolation inputs, with bit patterns |
LUX_CNR_DEBUG=<any> |
the colour-noise-reduction per-tile statistics for the (0,0) tile |
LUX_HP_DEBUG=x0,y0,x1,y1 |
per-pixel hot-pixel decisions inside that rect |
LUX_ISP_DEBUG=1 |
the ISP runner's stage list and per-stage rects (once), plus the linearize black/white, the crosstalk blend and the hybrid-denoise thresholds |
LUX_PP_DEBUG=x,y |
the post-processing tile arithmetic around the pixel at x,y |
LUX_TELE_DEBUG=1 |
per-telephoto-module white balance, black, IR blend and tone tuning |
| Option | Description |
|---|---|
LUX_CNR_DUMP=<prefix> |
colour-noise reduction: the kernel input region, its arguments and every pyramid level, as <prefix>_cnr_*.f32 / _cnr_args.txt |
LUX_DEMOSAIC_DUMP=<dir> |
the light_v1 demosaic's A/B/C planes, as A.f32/B.f32/C.f32 in <dir> |
LUX_HP_DUMP=<prefix> |
hot-pixel removal: the per-channel sensor σ tables, as <prefix>_sigma<c>.f32 |
LUX_HYB_DUMP=<prefix> |
hybrid denoise: every intermediate, as <prefix>_hyb_<tag>.f32 |
LUX_MONO_DUMP=<prefix> |
mono fusion: the per-stage RGB and float-Bayer images of the mono module's own ISP, as <prefix>_own_st<i>_<stage>.<kind>.bin |
LUX_TELE_ISPDUMP=<pre> |
the telephoto level-0 cache's whole grown-rect ISP output, as <prefix>_<module>_isp_<x0>_<y0>_<x1>_<y1>.bin |
Lux is released under the GNU General Public License, version 3. See LICENSE.
