Modoki Engine

modoki-engine.com · Documentation

Modoki is a Claude-friendly ECS game engine and visual editor. You author games — scene data, gameplay logic (TypeScript), and asset wiring — with an AI collaborator, while a visual editor handles the things AI is bad at (pixel-level layout, final polish). It ships as a desktop editor (Electron) and builds each game to web and native iOS/Android via Capacitor.

• ECS core — a koota world with a priority-ordered system pipeline, projections, managers, and a deterministic, headlessly-verifiable frame driver.
• Rendering — Three.js (WebGPU/WebGL, 3D + NPR outline post-FX) and PixiJS (2D), driven by a single Renderable.layer, plus an ECS-driven DOM UI layer.
• Gameplay systems — Rapier 2D/3D physics, zones, a timeline/sequencer, keyframe + skeletal + 2D flipbook animation, particles (CPU/GPU), Web Audio, input, and persistence.

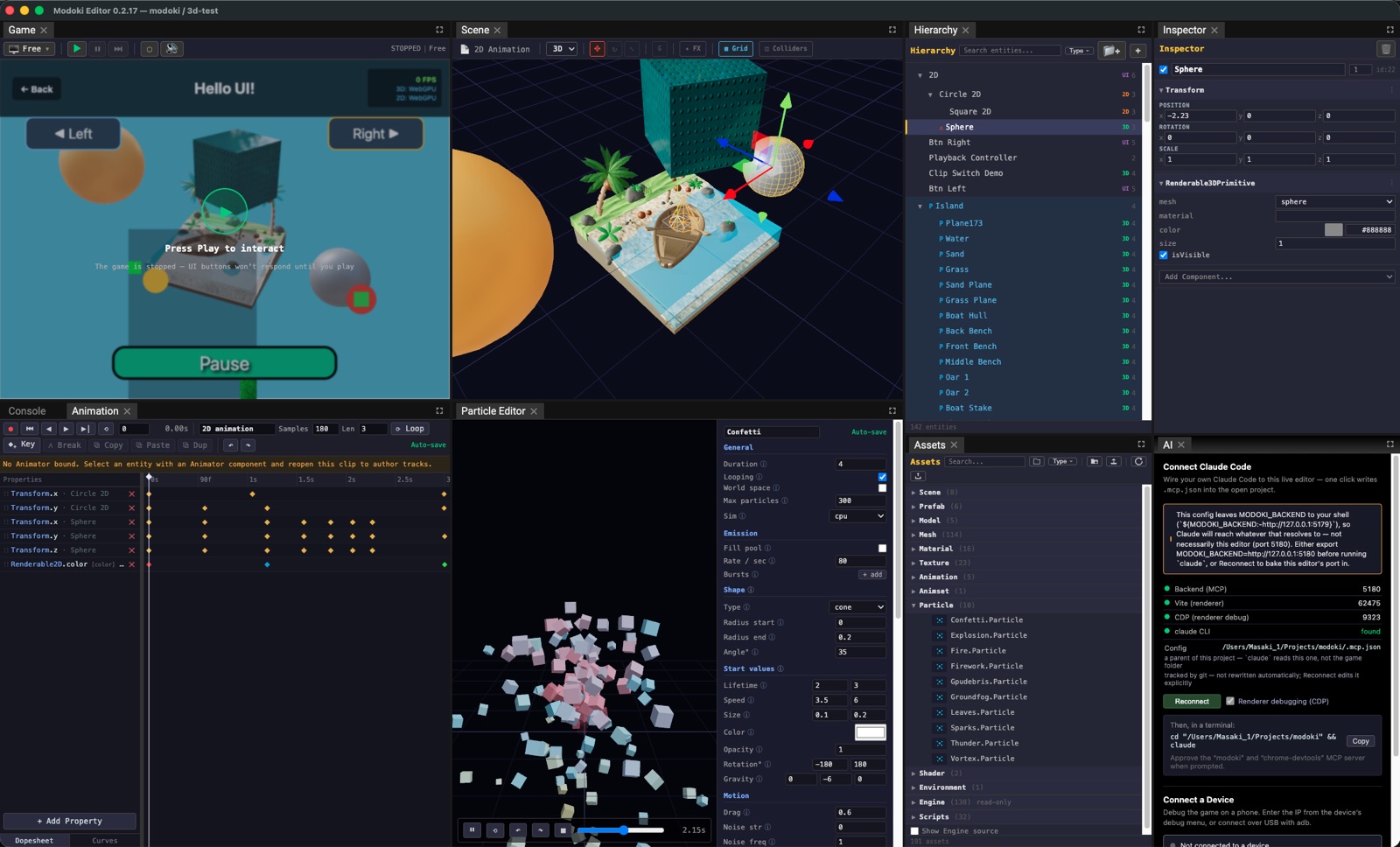

• Editor — a dockable visual editor with SceneView/GameView, gizmos, undo/redo, and dedicated asset editors (animation, particles, sprites, skinning).
• Agent-native — the engine is built so an AI agent can read the live world by data and drive trusted input, and verify game logic headlessly and deterministically (no renderer, no wall-clock).

Demos

Playable, open-source showcases built with the engine — click a screenshot to play, or open the repo to see the scene/prefab data behind it.

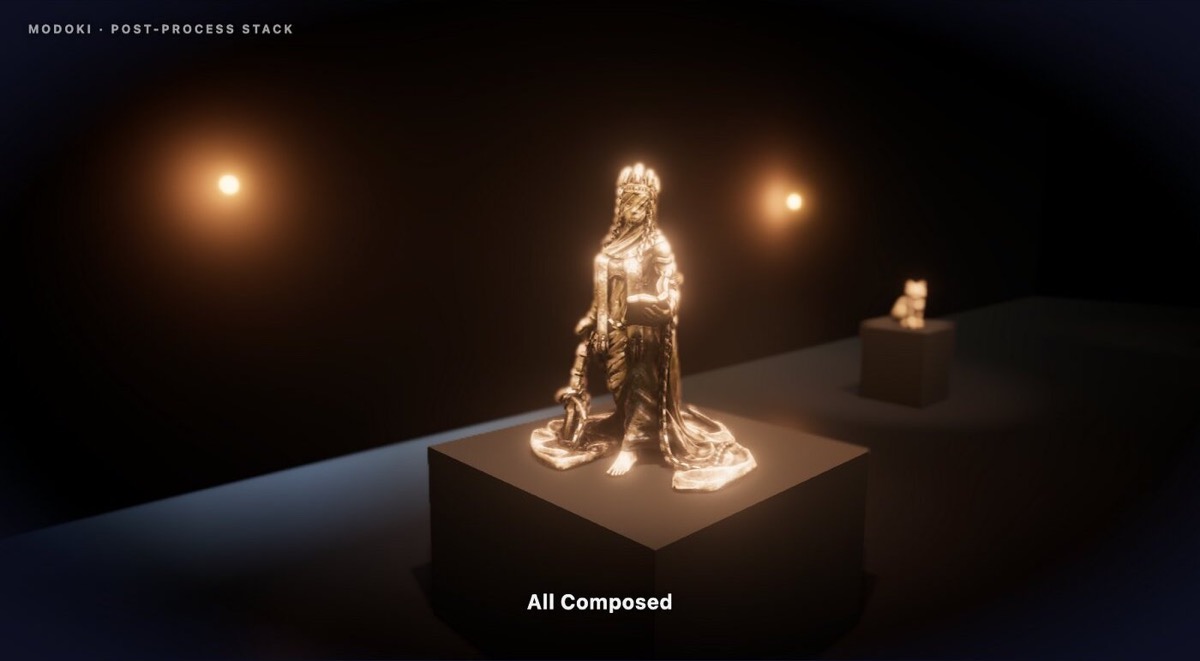

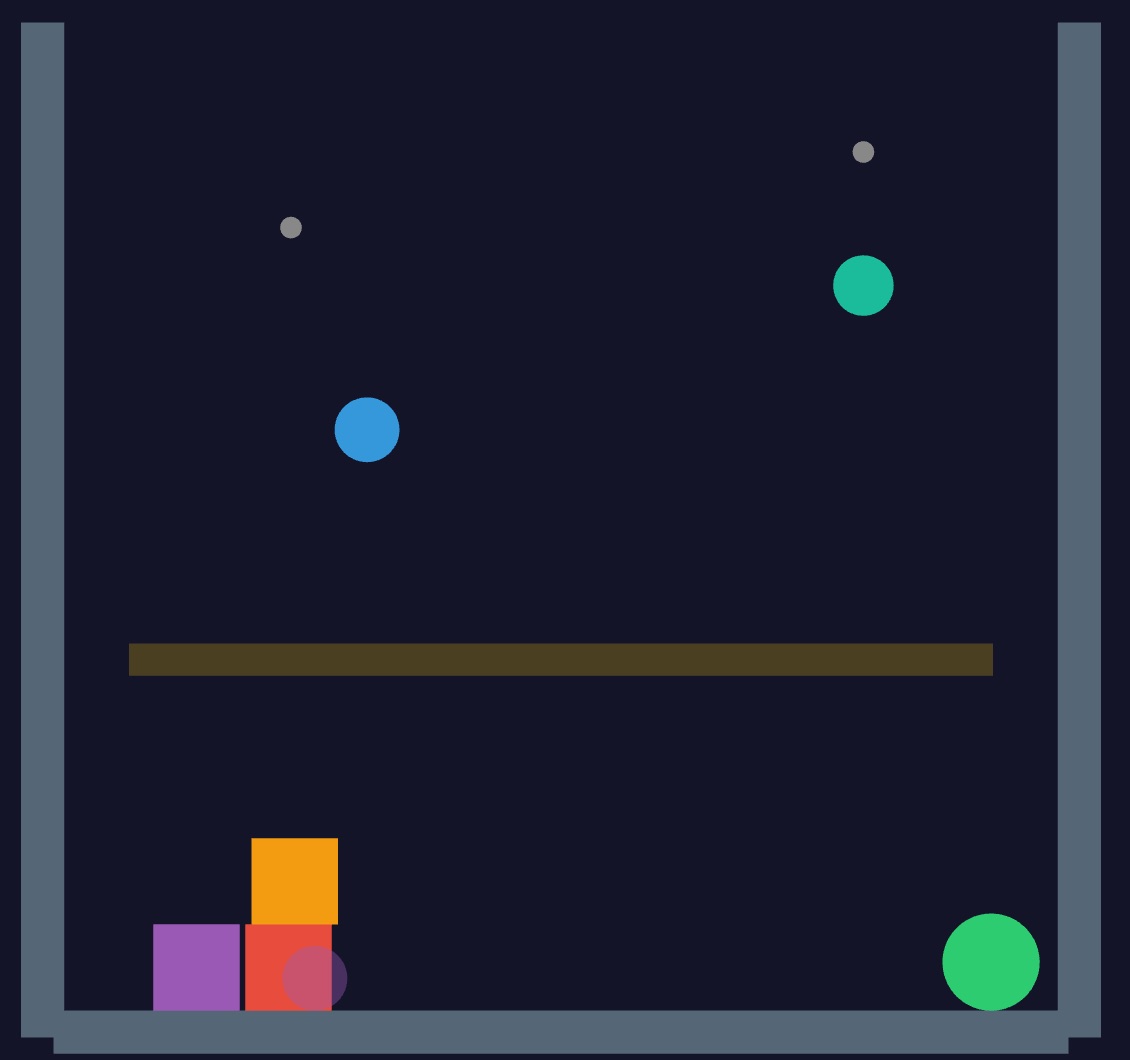

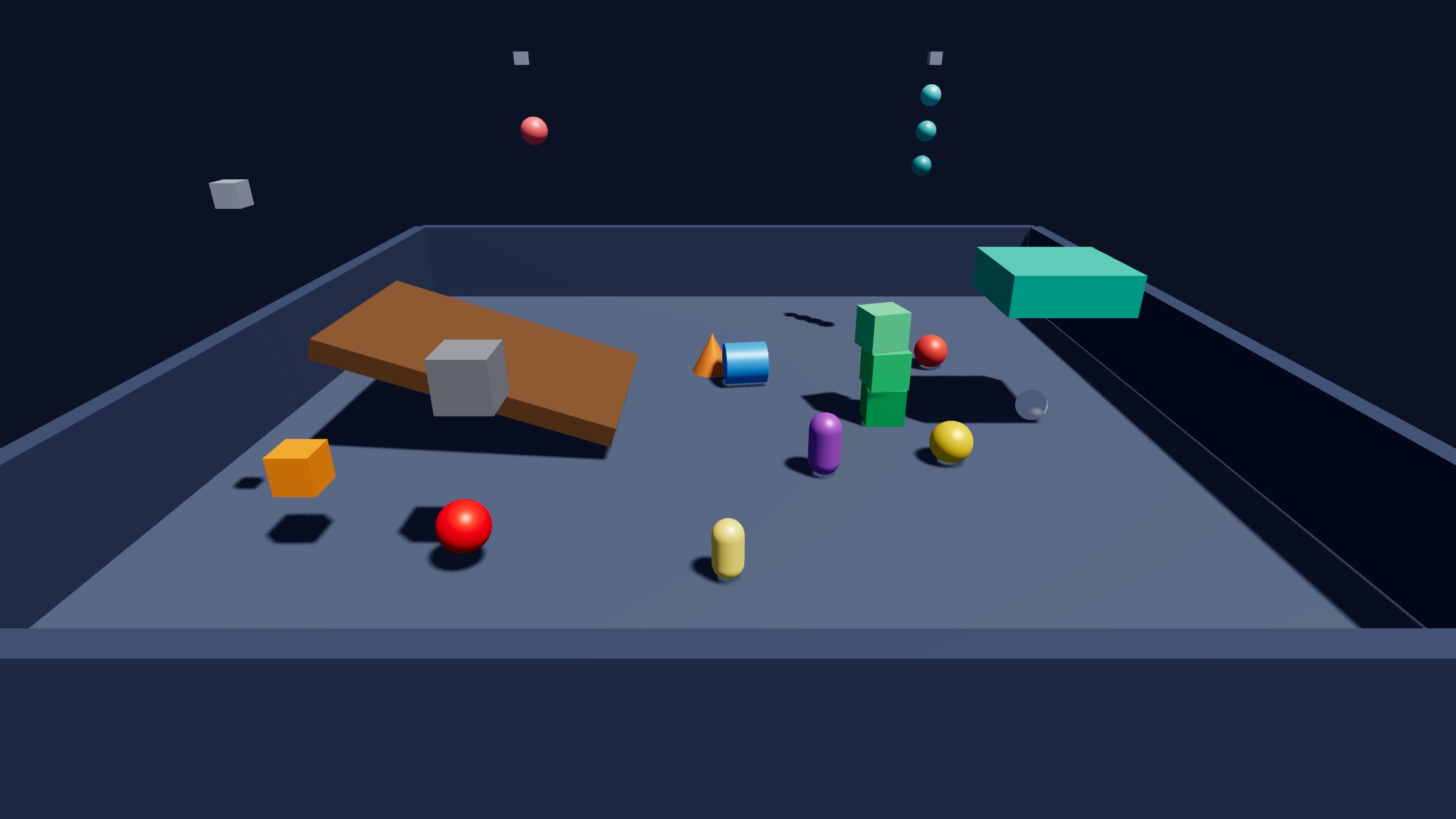

Post-FX Demo — source	3D Physics Demo — source	2D Physics Demo — source

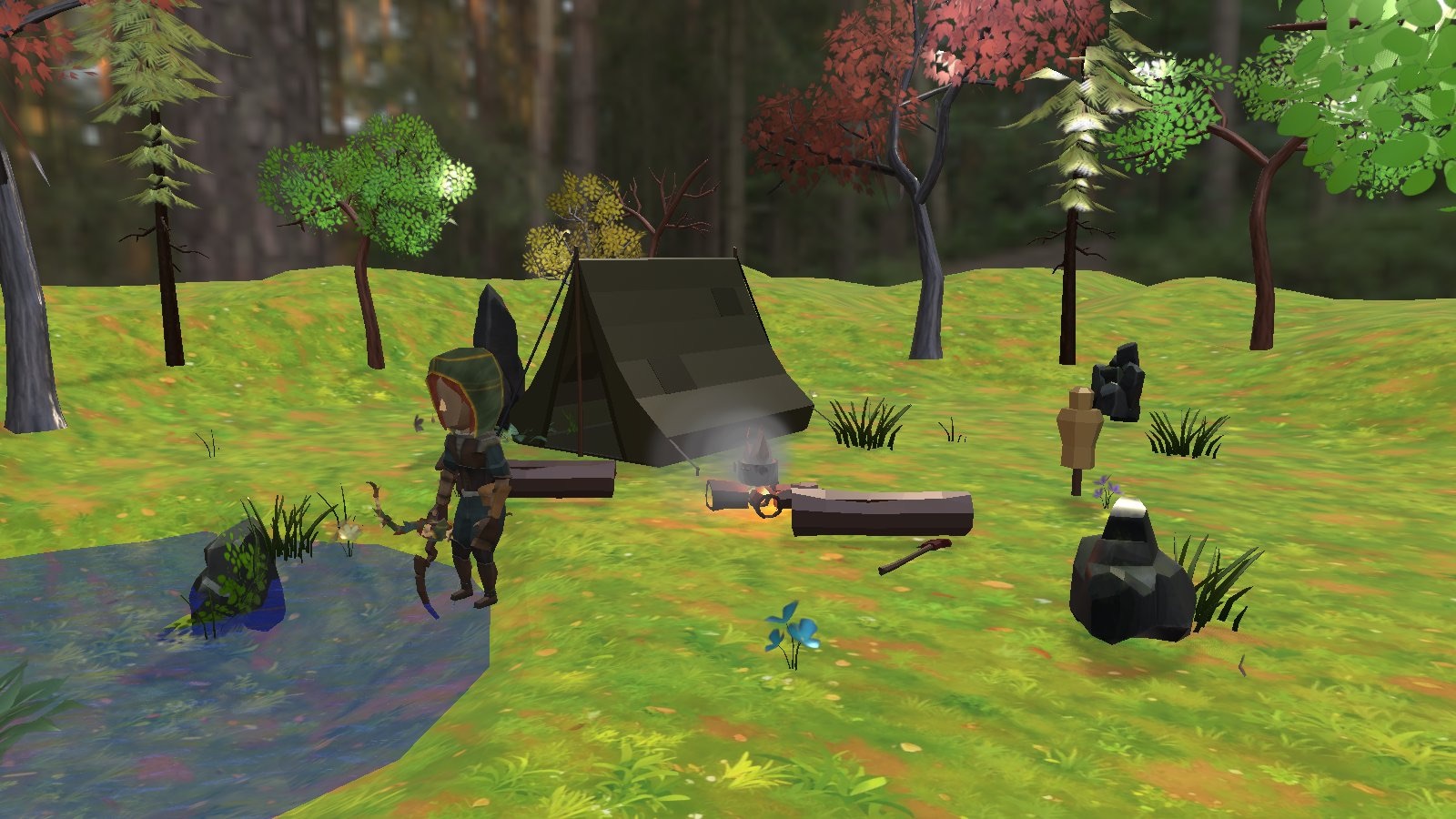

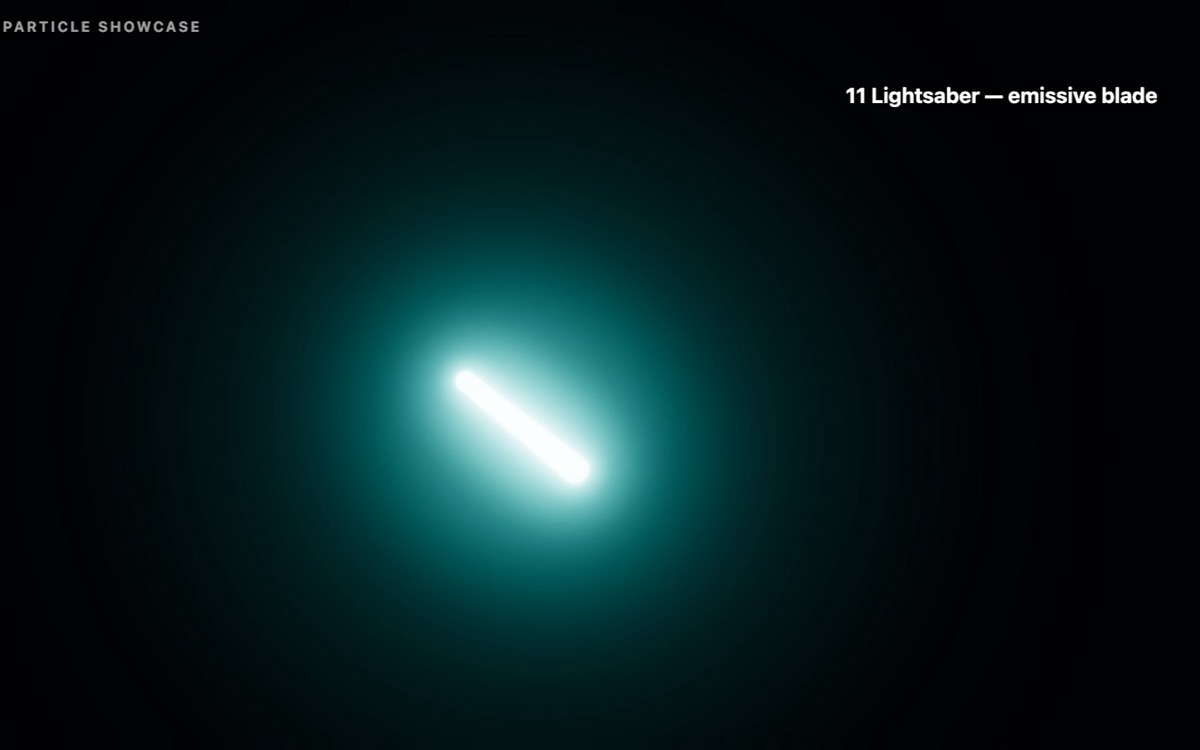

Forest Camp — source	Particle Demo — source

Status

This repository is a public, Apache-2.0 snapshot of the Modoki engine + editor, published from a private development repository. Releases (the signed desktop editor) are cut here. This snapshot ships the engine and editor only — not the demo games from the private repo.

Quick start

Prefer not to build from source? Grab the signed desktop editor from Releases (macOS .dmg / Windows .exe) — it bundles its own Node (via Electron) plus toktx/msdf-atlas-gen, and can provision JDK/Android SDK for you from Build → Build Support…, so none of the below is needed. The Requirements section is for running this repo from source.

Requirements

• Node.js 22+ and npm — required to run the editor and build games from this source checkout.

• toktx (KTX-Software) and msdf-atlas-gen — encode textures to KTX2 and bake MTSDF font atlases. Install the editor's pinned builds up front:

  npm run toolchain:install -- toktx msdf-atlas-gen

  Copies on your PATH are not used: a converted asset's cache key does not name the tool, so every machine has to convert with the same build. Without them, imports fall back to shipping source PNG/JPG (bigger builds, no compression) instead of failing. Pinned builds exist for macOS (Apple Silicon; toktx also on Intel) and Windows x64. On Windows, unpacking the KTX installer needs 7-Zip.

• JDK 21 + Android SDK — only needed to build the Android target. The editor can provision both for you: open Build → Build Support… and click Install (downloads a pinned Temurin 21 + the cmdline-tools/platform/build-tools the games need, no manual JAVA_HOME/ ANDROID_HOME setup). To install by hand instead, see docs/build.md — Android needs JAVA_HOME pointed at a JDK 21 specifically (Gradle rejects newer bytecode).

• Xcode — only needed to build the iOS target (macOS only). Install from the App Store, then xcode-select --install and accept the license once.

• To use a specific toktx/msdf-atlas-gen on purpose (e.g. on Linux, which has no pinned build), point MODOKI_TOKTX / MODOKI_MSDF_ATLAS_GEN at it.

Windows: use a Dev Drive

npm install and Vite's dev-server file watching are several times slower on a regular NTFS volume than on macOS/Linux, largely from Windows Defender scanning every file write and CreateProcess overhead on fork()-heavy tooling. Cloning into a Dev Drive (a ReFS volume with Defender exclusions, Windows 11 22H2+) closes most of that gap:

1. Settings → System → Storage → Advanced storage settings → Disks & volumes → Create dev drive (a VHD-backed dev drive works fine if you don't have a spare partition).
2. Clone and work from the dev drive, e.g. D:\Projects\modoki-engine, not C:\Users\<you>\....
3. Move the npm cache onto the dev drive too — by default it lives under %AppData%/%LocalAppData% on C:, so every install still round-trips through the slow, Defender-scanned volume even with the repo itself on D::

   mkdir D:\npm-cache
   npm config set cache "D:\npm-cache" --global


4. Continue with npm install / npm run dev as below from that path.

Get running

git clone https://github.com/lsgmasa33/modoki-engine.git
cd modoki-engine
npm install            # installs + builds workspace plugins (postinstall)
npm run dev            # Vite dev server; the editor opens your last / a new project

• Editor: http://localhost:5173/#/editor
• New project: File → New Project scaffolds a runnable hello-world from the built-in starter template (engine/templates/starter).
• Build a game to web: MODOKI_PROJECT=path/to/project npm run build -- --target web
• Native iOS/Android builds run from a project directory via the editor's Build menu.

Full documentation: https://modoki-engine.com/docs

Contributing

Contributions are welcome — please read CONTRIBUTING.md first. All contributors must agree to the Contributor License Agreement before a pull request can be merged.

License

Apache License 2.0 — see LICENSE. Third-party dependencies are listed in THIRD-PARTY-NOTICES.md. "Modoki" and the Modoki logo are trademarks of the project owner and are not licensed under Apache-2.0 (see LICENSE §6).
