This has not yet been tested, and firmware has not yet been pushed to qmk/via, pcb may or may not function as intended

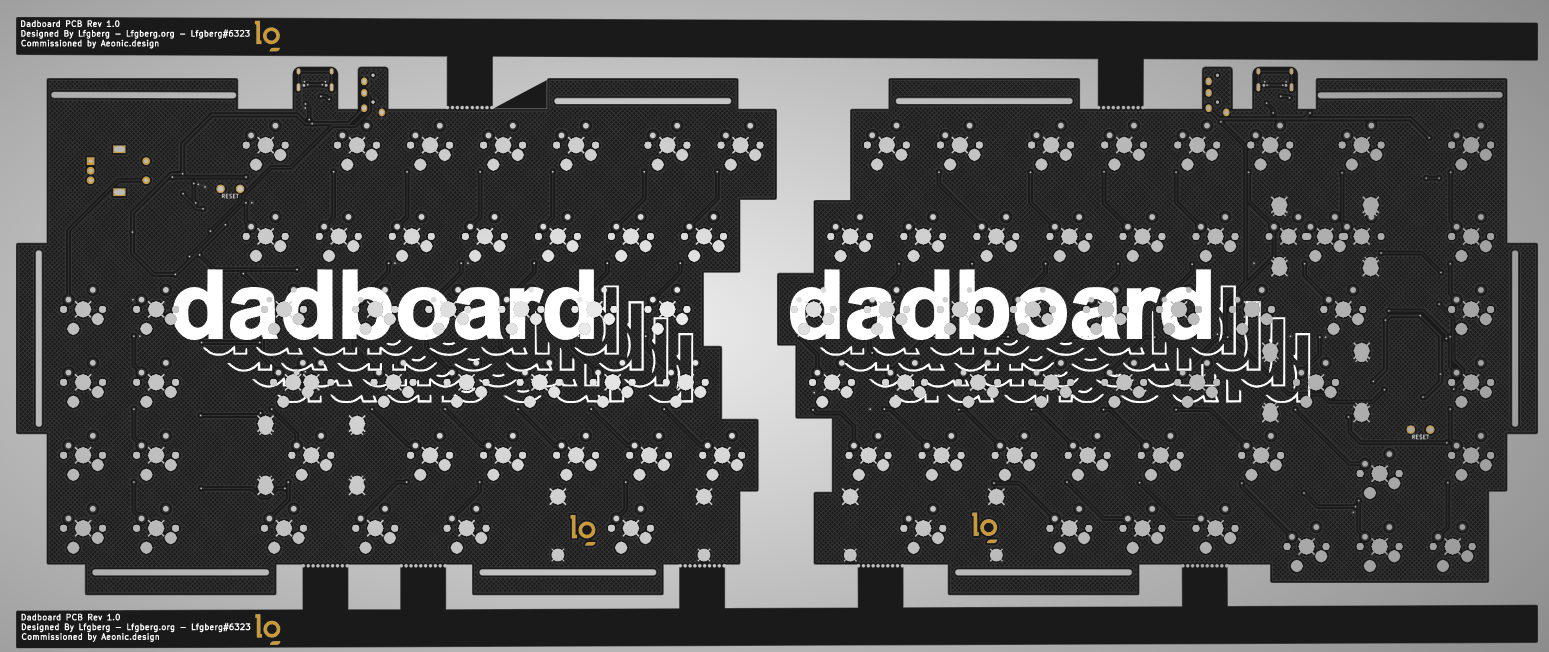

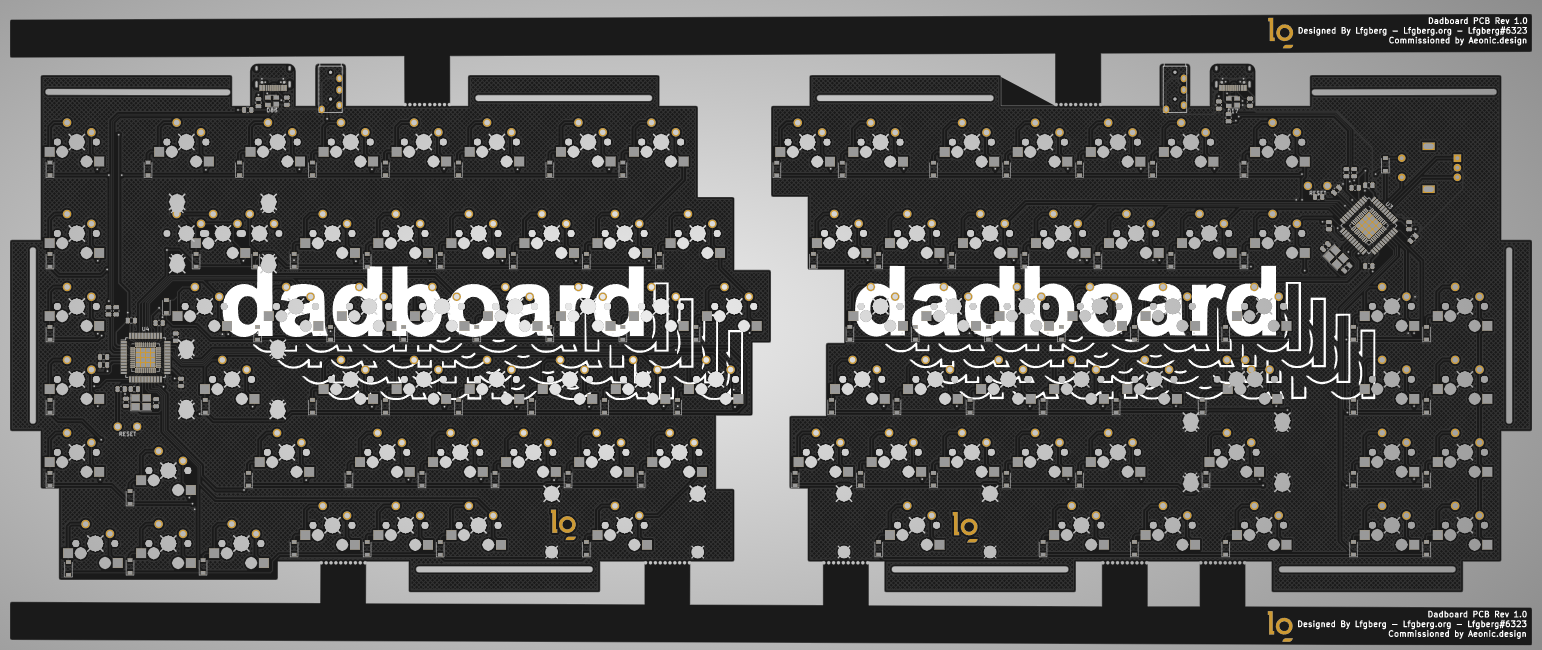

PCB designed for enwash and tesla.tech's Dadboard Split 75%
Download the latest release of the production files, and submit them to a PCB manufacturer like JLCPCB or PCBWay.
Required:
- 1x EC11 Alps Rotary Encoder
- 2x TRRS-PJ-320A Ports
Optional:
- 92 Kailh hotswap sockets
Attribution-NonCommercial-ShareAlike 4.0 International
This is not available for commercial use, contact Lfgberg for more information.
