img2threejs Showcase

Build the mesh. Keep the source.

Reference-led 3D studies rebuilt as inspectable, animation-ready Three.js code — running live in the browser.

_{Open a study, orbit the model, inspect its parts, trigger its actions, and follow the source back to the code.}

Gallery · How it works · Contribute · Develop · Community

---

Skybound Adventure — playable pixel-art kingdom

Open Skybound Adventure — The Floating Kingdom in the home-page Archive, or use the 2D Games filter. The card displays the supplied original reference image, not a gameplay screenshot; Explore Skybound Adventure opens the standalone /skybound-adventure.html game.

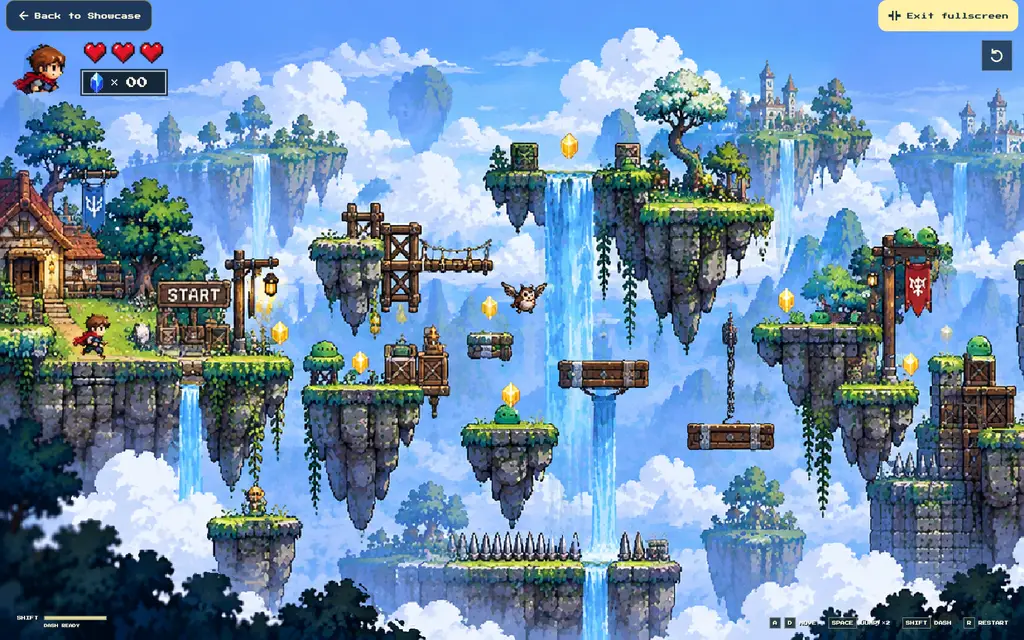

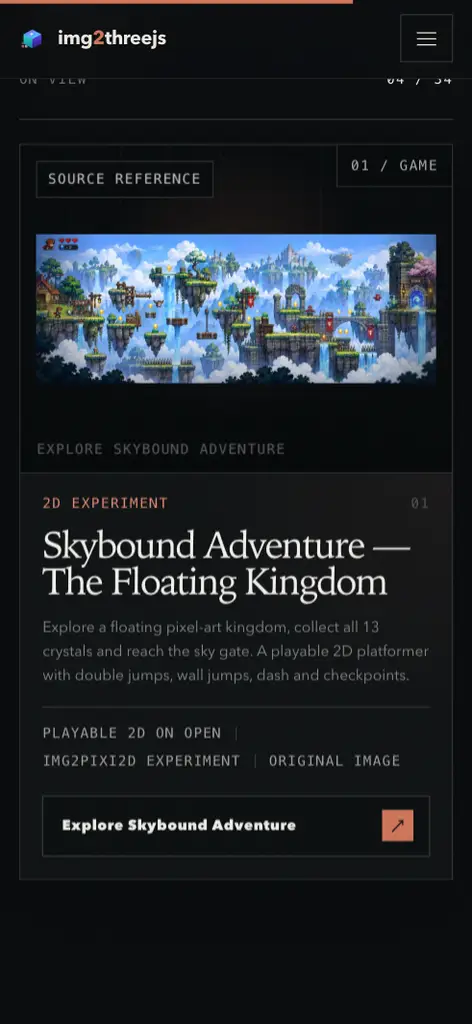

Production-browser captures (PR evidence, not shipped game assets): gallery card · native-fullscreen gameplay.

The game fills the browser viewport without an inspector/sidebar. Begin requests native fullscreen when supported; the fullscreen button or F toggles it and Esc leaves it. Browsers that deny native fullscreen still get full-window gameplay. Back to Showcase returns to the gallery.

• A/D or arrow keys move; Space jumps, double-jumps or wall-jumps; Shift dashes.
• Collect up to 13 crystals, activate checkpoints and reach the sky gate. Coins remain optional in ordinary play.
• Losses with hearts remaining respawn at the checkpoint without refilling those hearts. The last heart starts a fresh run after the death animation, resetting spawn, collectibles, enemies, checkpoint, moving platforms and run counters.
• Keyboard controls are required; touch movement controls are not implemented.
• npm run test:skybound runs the ported gameplay regression suite, including the all-13 route and exhausted-heart reset. npm run build includes the standalone page.

Implementation: src/demos/skybound-adventure/. Runtime layers and locally bundled Press Start 2P font: public/skybound-adventure/. The full supplied image is reference.png; the archive WebP is a downscaled copy within the catalog's 800 KiB limit.

Provenance and limits: this is an experimental source-derived PixiJS raster game, not a procedural Three.js model or a claim of recovered original layers. Hidden artwork/support and actor animation are authored/inferred. Existing background reconstruction limitations remain; the reference is not relicensed by this port and redistribution rights require maintainer confirmation. The bundled pixel font retains its license in the game's fonts/ directory.

Greenvale — img2pixi2D experiment

Experimental img2pixi2D study; rendering and provenance limits remain documented below. This study ports the existing Greenvale 2D game into a standalone /greenvale.html entry, alongside the existing standalone iPhone Duo page. It does not register a Three.js model, modify the gallery router, or depend on the separate Moonlight Cafe PR.

npm ci
npm run dev -- --host 127.0.0.1
# Open /greenvale.html on the URL printed by Vite.

The home page Archive lists Greenvale — Playable 2D Village among its first cards, with a 2D Experiment label and an actual gameplay overview. Use the 2D Games filter or search for Greenvale/img2pixi2D; Play the 2D Game opens the standalone page rather than a Three.js inspector.

The 960×640 WebP is captured from the running PixiJS scene, not the source reference or a generated mockup. It is a runtime asset for the gallery card and the standalone loading screen.

• A village-art loading screen appears from initial HTML, before the game module downloads. The same screen reports font, asset and renderer setup without fake percentages or an artificial delay. Pixel pulses respect reduced motion; module failures stop the animation, while boot failures reveal the retry alert.
• Native PixiJS 8.22.0 containers, source-derived sprite layers, editable actor rigs, native HUD text/graphics, lighting, water, smoke and skill VFX; no 3D runtime.
• WASD/arrows walk; Shift runs; E interacts. 1/2/3 cast Heal/Ice/Fire; J/K/L/U/I/O trigger Slash/Combo/Thrust/Spin/Dash/Ground Strike.
• Touch devices receive a joystick, hold-to-run, interaction and all nine skill buttons. The first click/tap requests fullscreen where supported; F toggles fullscreen, P pauses and R resets. No outer settings panel or header.
• The 1536×1024 artboard keeps its proportions. Portrait screens have substantial letterboxing; landscape touch controls can overlap the map.
• Landscape controls use translucent circles (24% button fill, 12% joystick fill), a larger Slash button, arc-arranged attacks and colored Heal/Ice/Fire symbols. Held controls brighten; keyboard badges are hidden in landscape. Touch targets remain at least 48px; portrait and desktop styling is preserved.

Implementation: src/greenvale/. Bundled artwork, runtime layer manifests and fonts: public/greenvale/. The host owns the Pixi Application, ticker, input and resource lifetime; scene.ts owns the reusable scene.

Provenance and limits: artwork derives from a user-supplied flattened Greenvale reference. Hidden ground/joints and actor background plates are inferred, not recovered original layers. Mirrored front-view poses are not true side/rear sprite sheets. Attack effects are visual actions, not an enemy/damage combat system. Artwork is not relicensed by this experiment; redistribution rights still require maintainer confirmation. Bundled Be Vietnam Pro fonts retain their SIL OFL.

Runtime-only Greenvale files: keep greenvale.html, src/greenvale/, the three public/greenvale/*/manifest.json files, their referenced PNGs, all bundled fonts with OFL.txt, and public/greenvale/showcase-preview.webp for the gallery. The manifests retain source hashes and inference notes. Build/local-server configuration and the dependency lockfile remain required. Extraction masks, unused per-layer metadata, separate character provenance, screenshots, verification reports and the Greenvale test harness have been removed; gameplay and other showcase scenes are unchanged.

To check locally, open /greenvale.html, walk/run with WASD and Shift, try the nine skill keys and resize to mobile landscape for the translucent controls. Physical-device and Safari checks were not performed. Runtime-only cleanup check: TypeScript passes; Chromium loads all 47 manifest images and 12 font files, renders one canvas, and accepts all nine keyboard skills. Walk/run move 25/47 pixels over four 0.05-second simulation steps driven by native keyboard input. At 844×390, translucent controls render without page overflow and the pointer Combo button invokes the Combo action. Fullscreen is preserved: the first click enters browser fullscreen, F exits and re-enters it, and Combo works while fullscreen is active. Chromium checks confirm the stage fills both 1440×960 and 844×390 viewports, including mobile controls. Browsers require a user gesture for fullscreen; where the API is unavailable, the game still fills the browser viewport. Gallery checks: the overview loads at 960×640 on desktop and mobile; counts are 33 total studies, 18 objects, 14 characters and one 2D game after integrating main. Object/character filters exclude Greenvale; search and the archive card both open /greenvale.html, where a subsequent click enters fullscreen. No JavaScript errors were recorded in those navigation checks. After integrating the current main branch, the complete npm run build passes: prebuild donation/iPhone/Tropical Island checks, TypeScript, Vite production bundles, 30 portable Three.js source archives and the postbuild dist check. The earlier source-ZIP traversal failure no longer occurs in this integrated version; no build gate was skipped.

About the showcase

This repository is the public gallery for img2threejs. Each study pairs its reference with a reviewable TypeScript implementation, catalog metadata, and a live Three.js scene or a dedicated PixiJS 2D artboard. The result is not a sealed render: it is code you can inspect, diff, animate, and extend.

Reference-led Silhouette, proportions, materials, and visible details are measured against the supplied source.

Code-owned Runtime geometry and behavior live in the repository. Demo code cannot depend on remote meshes, CDNs, or network calls.

Animation-ready Named parts, pivots, rigs, contact pairs, and effects are authored for interaction rather than flattened into a single asset.

The catalog keeps honest status metadata: final entries are completed reconstructions; placeholder entries remain visible while their final rebuild is in progress. The live source of truth is src/demos/registry.ts.

Recent studies

Study	What to explore
Man Robot · Segment Color Studio	A source-preserving 65-joint robot with six color regions, rigged clips, an electric-green scan, and a WebGPU-first renderer with an automatic WebGL2 fallback.
Tropical Island — code-only measured study	Ten force-measured TypeScript surfaces, procedural terrain/water/foliage, 27 selectable parts, and no runtime GLB or source texture maps.
Moonlight Cafe — PixiJS 2D study	Source-derived café layers, ambient sky/water/boats, the approved seated cat with tail-only sway, and a collapsible description/reference panel at #/demo/coffee-house.
Ocean Blue PRS Guitar	Measured vertex color and PBR samples preserved in code, six addressable strings, and opt-in water-flow actions.
Groot — Heart of the Forest	A navigable woodland scene with retargeted movement, grounded combat, living-wood effects, and lantern spirits.
Mars Cat	Seventeen measured regions streamed at three quality levels without shipping the reference GLB, textures, or UV atlas.
Starship + Super Heavy	Procedural stainless shells, heat-shield tiles, flaps, grid fins, engine arrays, and a staged separation sequence.

Browse every live study

Gallery snapshots

Sony WF-1000XM3 Open the case, lift both earbuds, spin them through a full turn, and settle them back into place.	Gerber Paracord Knife A stonewashed tanto profile, skeletonized tang, hex pommel, and woven orange cord.
Doraemon House An isometric street diorama with layered roofs, overhead wires, a garden, and animated atmosphere.	War-Hauler “SECTOR 07” A weathered six-wheel hauler with a riveted plow, reactor-lit hubs, and drifting exhaust.

From reference to live study

graph LR
    A[Reference image or measured source] --> B[Analysis and sculpt specification]
    B --> C[TypeScript model factory]
    C --> D[Quality and safety gates]
    D --> E[Interactive Three.js study]

Loading

1. Study the source. Record visible proportions, silhouette, material behavior, and unknown depth.
2. Build in code. Assemble geometry, materials, named parts, and optional actions in a TypeScript factory.
3. Measure the result. Compare the render with the source, document inference, and iterate on the largest visible gaps.
4. Publish the study. Add catalog metadata and a local reference; CI builds the gallery and runs the static safety gate.

For the reconstruction workflow itself, start with the img2threejs repository.

Contributing a study

Have an img2threejs model worth sharing? The repository includes a scaffold command and a purpose-built contribution path.

git clone https://github.com/<your-user>/img2threejs-showcase.git
cd img2threejs-showcase
npm ci

git switch -c add-demo/<id>
npm run new-demo -- <id> "<Title>" object   # or: character

# Add the factory and reference, then complete the generated registry entry.
npm run build
node scripts/check-showcase-safety.mjs --base main

A submission must:

• for Three.js studies, build geometry in code without fetching remote meshes, textures, fonts or scripts; owner-reviewed source-derived PixiJS studies use the dedicated local-asset path documented below;
• include a catalog reference image you have the right to use (.png, .jpg, .jpeg or .webp, at most 800 KiB);
• use a kebab-case id unique across both catalogs and complete the selected renderer's required fields;
• set status: 'final' once the real implementation replaces the scaffold;
• pass both the production build and the same safety scan used by CI.

Read the full contribution guide before opening a pull request.

Local development

Requirements

• Node.js 20
• npm

Commands

npm ci
npm run dev            # start Vite in development mode
npm run build          # run project checks, TypeScript, and the production build
npm run preview        # serve the production build locally
npm run new-demo -- --help
npm run star-history   # regenerate the chart below; requires GITHUB_TOKEN

The gallery uses hash routes (#/ and #/demo/:id) so direct navigation remains compatible with static hosting.

Moonlight Cafe — dedicated PixiJS 2D demo

This checkout includes Moonlight Cafe at #/demo/coffee-house, discoverable in the archive's Objects filter and the Find a Study command palette. It is an integrated gallery demo, not a separate HTML entry or a Three.js group with invented camera metadata.

• src/demos/coffee-house/ contains the production scene, animation modules and bundled layout/motion manifests. The source-derived mattes and hidden-background reconstruction remain authored approximations; this study does not claim artist-alpha reconstruction.
• src/pixi/registry.ts owns 2D metadata and runtime-selected renderer/artwork plugins. src/pages/pixi-demo.ts owns the hash-route shell and serialized atlas leases; src/pixi/showcase.ts owns the Application, uniform artboard fit, ambient clock and cleanup. The existing Three.js registry, cameras, inspector and exporters remain separate.
• Browser extensions are registered before Application initialization, with automatic extension imports disabled. Vite keeps Pixi in one lazy runtime chunk so the 2D route does not need a separate browser/worker environment fetch; 3D routes do not load it.
• The panel contains only the description and original reference. Desktop starts expanded; mobile starts folded. Info / Hide, Enter and Escape control it; folded content is inert and the expanded mobile panel scrolls independently. Reduced motion stops scene playback. Painting modes, Zoom/pan, Explore, part selection and 3D inspector/export tabs are absent.
• public/coffee-house/motion-atlas.png supplies every live scene texture. The original PNG at public/coffee-house/reference.png is shown in the reference panel; the gallery uses public/references/coffee-house.webp (189,598 bytes, below the 800 KiB catalog limit). Manifests are static imports; there is no direct factory fetch or external asset service. The full artboard and reference are not cropped.
• The scene exposes only its root, clock and disposal. It does not ship the source app's Original mode, selection markers or configurable effect controls, and does not load the separate original-mode atlas. Development screenshots and verification logs are not checked into the production contribution.
• Artwork redistribution rights still require maintainer approval. No public deployment or independent artwork-license verification is claimed.

Tropical Island — code-only diorama

Open #/demo/tropical-island. The demo has 27 selectable parts, a coupled shallow-water simulation, moored boat buoyancy, wind-driven foliage, a day/night cycle and procedural fire, smoke and water-entry effects. Click/tap clear deep sea to drop a rock, drag to orbit, and press R to repeat at the last water point. Strong shore impacts extinguish the campfire; click its retained wood or stone to relight it. Reduced motion holds the scene and disables physical drops. Eligible, unobstructed water shows a gold aim cursor with a dark outline. Hover uses the same depth, solid-prop, occupied-column and pool-capacity admission as clicks. The native 32×32 SVG cursor has a centered hotspot, falls back to crosshair, adds no animation loop, and clears on dragging, leaving the canvas, blur or a click/R drop.

The ten prop surfaces in measured/ follow the img2threejs force-measured route: u16 positions, octahedral 8+8-bit normals, sampled vertex colors and lossless indices decoded into ordinary Three.js geometry. These are surface buffers, not a base64-wrapped GLB. Runtime uses no GLB/GLTF/BIN, GLTF/DRACO loader, source texture image or UV atlas. The reference WebP is a gallery thumbnail, not a model texture.

The measurement manifest records source hashes, topology, transforms and sampling conventions. Across ten source meshes, 708,881 vertices and 1,145,710 triangles retain their original index order before the existing palm/fire cleanup. Independent local parity checks measured maximum position error of 7.62939453125e-6 in source mesh units and nonzero-normal error below 0.95°.

Fidelity limit: base color is sampled at vertices; roughness and metalness use measured sampled medians. Sub-vertex texture detail and source normal maps are not retained, so this is not pixel-identical PBR texture shading. Surface streams load asynchronously as 60 bounded TypeScript chunks before the synchronous model factory runs. Raw positions, normals, sampled colors and index order are preserved; the split removes the monolithic parser workload. The complete island payload remains about 11.04 MB gzip. Build guards enforce 512 KiB runtime/metadata chunks, 300 KiB numeric chunks and 11 MiB aggregate gzip. Vite receives an 8 GiB Node heap ceiling for full-gallery builds; this is not a browser allocation or a quality setting.

Numerical runtime. MUSCL/HLL reconstruction and face fluxes use a generated 11,810-byte WebAssembly SIMD kernel with strict float64 arithmetic. Each water instance owns its memory, and typed-array views avoid per-step copying. Neighboring-cell foam lookups retain binary-search fallback for longer travel; incident-wave dispersion is cached by exact depth. Regeneration uses the retained C sources and node pipelines/tropical-island/water-kernel/build-water-kernel.mjs (LLVM clang with wasm32 support and wasm-ld required). Normal builds use the checked-in waterKernelCode.ts, with no compiler or external .wasm download. Runtime requires WebAssembly SIMD and DecompressionStream.

Body and parcel sources now enter the field after every existing CFL substep, before the next CFL scan. Contact sampling reads live water instead of the last GPU upload; visual effects and texture uploads remain once per render frame. This fixes uneven-frame feedback that could eject a submerged rock and make the solver's CFL speed signal explode. The repeating schedule 1/60, 0.05, 1/120, 0.026 seconds previously reached 31,784; the corrected real scene completed 6.026 physical seconds with a maximum of 30.59 and a submerged rock. Coastal-jitter and stale-contact regressions both failed before their fixes. No geometry/effects were removed; no velocity clamp, FPS cap, simulation-clock slowdown, LOD, decimation or busy worker was introduced.

Verification. All 95 island tests passed. With identical source scheduling, 116 frames across still water, incident waves, prescribed impacts and mixed wet/dry lanes were byte-identical to the original solver across 16 fields. Physical clocks, soil absorption and non-finite errors matched; four full-grid foam-transport cases also matched, including long backtraces and signed zero. The body-coupling fix deliberately changes source scheduling rather than preserving the unstable trajectory.

Process CPU measurement: Chrome 154 / Apple M1 Metal, headless 1280×960 at DPR 1, production assets, the same executable and a dedicated profile. Each default-scene run lasted 40 seconds; values average the final 30 seconds. CDP per-process CPU-time deltas use 100% for one CPU core, not the whole machine. No profiler, build or test job ran during capture.

Measurement	Previous runtime	Optimized
Total Chrome-process CPU	107.4%	79.8%
Renderer-process CPU	85.6%	57.7%
Main-thread occupancy	81.2%	52.6%
Observed FPS	42.8	40.6
Mean scene tick CPU per frame	17.25 ms	11.18 ms

A trusted click and eight seconds of impact/settling averaged 84.0% total Chrome CPU. These are measured workload results, not locked-60-FPS or other-hardware guarantees. Browser checks covered sinking, boat response, fire extinction and mesh-click relight, keyboard repeat, orbit cancellation, reduced motion, eligible and blocked cursor states, full-pool rejection and native portrait touch.

npm run build checks island source/public assets before building and checks dist/ afterward. Focused physics and interaction regression tests:

node --test pipelines/tropical-island/*.test.mjs
npm run check:tropical-island
npm run build

The offline encoder and independent verifier are retained as code in pipelines/tropical-island/. Regeneration requires Python 3 with Pillow and the original GLBs under the gitignored work/tropical-island/reference-models/:

python3 pipelines/tropical-island/encode-surfaces.py
node pipelines/tropical-island/verify-surfaces.mjs

Normal builds do not need Python or the offline GLBs. Original models, temporary state/specs, generation logs and historical QA images/videos are not part of this showcase submission. Optional inspector GLB export remains available; static exports do not bake the simulation, wind or volumetric effects.

Download a showcase's Three.js source

Open a Three.js study, choose Export, then Download source code under Export a 3D Asset / From Stage. The <showcase-id>-source.zip contains only that showcase's runtime dependency graph, not the entire gallery. Source download is independent of asset export scope, isolation and the current pose.

Man Robot Studio has these download controls in its component console. Download GLB exports the robot alone (not the studio floor/lights); the format selector also offers glTF, OBJ, STL, PLY and USDZ, and Export all formats bundles all six with a validation manifest. GLB/glTF retain the source texture, current segment tints, 65-joint rig and 23 runtime clips. Static formats bake the visible pose with their stated material/rig limits. Runtime scan shaders and gesture corrections remain in the source ZIP, not the interchange files. Asset exports temporarily lock motion and painting, then resume the existing playback state. Source download works before the model is ready.

Unlike GLB/glTF asset export, the source ZIP retains the original TypeScript factories, all reachable quality/data modules, animation controllers, shaders, procedural VFX, lighting and stage interaction hooks. Required textures and JSON assets are included; their URLs resolve within the downloaded package, including after a subpath production build. No .glb/.gltf model file or GLTFLoader dependency is allowed in these packages. Static studies remain static: downloading source does not invent animation.

Each ZIP includes package.json, manifest.json, an executable browser example and integration instructions:

npm install
npm run dev
# Production example:
npm run build

To reuse it, copy both src/ and assets/, preserving their relative layout, into a TypeScript-aware, asset-aware Three.js project. Install the ZIP's declared dependencies and share a compatible Three.js instance with the host.

For standard Viewer-based packages:

import { mountShowcase } from './downloaded-showcase/src/index';

const asset = await mountShowcase(container);
const animation = asset.runtime?.animationController;
const action = animation?.actions[0];
if (action) animation.play(action.id);
// On unmount:
asset.dispose();

Use createShowcase(scene) for an existing scene and advance its update(dt, elapsed) and prepareRender() from your own loop. Do not advance these again with mountShowcase; its included Viewer already does so. Camera-dependent game interactions require the included Viewer or an adaptation to the host engine. The package README explains both integration paths and resource ownership. Existing provenance/attribution remains; downloading does not grant new rights to third-party references or textures.

The Robot Studio package instead mounts its original component editor, motion library and WebGPU/WebGL-fallback stage. mountShowcase(container) returns { dispose }; its controls own playback and painting. Use the exported robot model/animation APIs when integrating into an existing scene. It includes the six robot runtime assets, but omits the gallery's download panel to keep the standalone package free of GLTFLoader.

Archives are generated from the selected registry entry and its actual imports by scripts/source-archives.mjs. npm run build writes all Three.js archives to dist/source/; development serves them on demand. Deploy that directory along with the gallery. After building, validate all packages in isolated consumers with:

node scripts/check-source-archives.mjs
# Or specific studies:
node scripts/check-source-archives.mjs leesin tropical-island

Repository map

src/
  main.ts                 application bootstrap and route mounting
  content.ts              editorial copy for the gallery shell
  site-data.ts            canonical links, release, sponsor, and roadmap data
  pages/demo.ts           Three.js study viewer and information panel
  pages/pixi-demo.ts      dedicated PixiJS route shell and serialized asset lifecycle
  pages/workbench.ts      inspection and export workbench
  scene.ts                renderer, camera, controls, lighting, and disposal
  exporters.ts            browser-side export flows
  demos/registry.ts       Three.js catalog metadata and lazy runtime loaders
  pixi/registry.ts        PixiJS 2D catalog and runtime-selected plugins
  pixi/showcase.ts        PixiJS artboard, description/reference panel, clock and cleanup
  demos/<id>/             one implementation folder per study
public/references/         bounded local catalog reference images
public/coffee-house/       local café atlases and full original reference
scripts/
  new-showcase.mjs         contributor scaffold
  check-showcase-safety.mjs static pull-request safety gate
  generate-star-history.mjs repository-owned star chart generator

Quality gates

Pull requests targeting main run the shared Node 20 quality workflow. The repository adds showcase-specific checks for unsafe network access, reference formats and sizes, unique ids across both renderer catalogs, and contribution boundaries. Merged changes are deployed automatically.

Community

• Discord — feedback, reconstruction discussion, and work-in-progress studies
• Issue tracker — gallery bugs and showcase submissions
• YouTube · X / @NickDevFE — build logs and releases

Support the project

img2threejs and this gallery are open source. If they save you time, you can support ongoing work through Ko-fi or the project donation page.

Star history

_{Generated in-repository by scripts/generate-star-history.mjs and refreshed daily.}
