Using MediaPipe to extract facial features and then use Kmeans to classify and label individual facial features.
This was an independent study for school that I did, original goal was to classify multiple facial features and I may update or create future projects for that, but this just does the eyes, specifically the left eye.
There are four files:
- main.py
- faceNorm.py
- kmeansClust.py
- pipedClust.py
This py file took the images in and used MediaPipe to extract the necessary datapoints from their landmark detection.
This file normalized the data for each image in the dataset, using a normalization formula my professor gave me.
This was the file for generating the individual clusters, but it also plotted everything, as well as calculating the silhouette coefficient and the elbow curve. On top of converting the data from cartesian to polar coordinates.

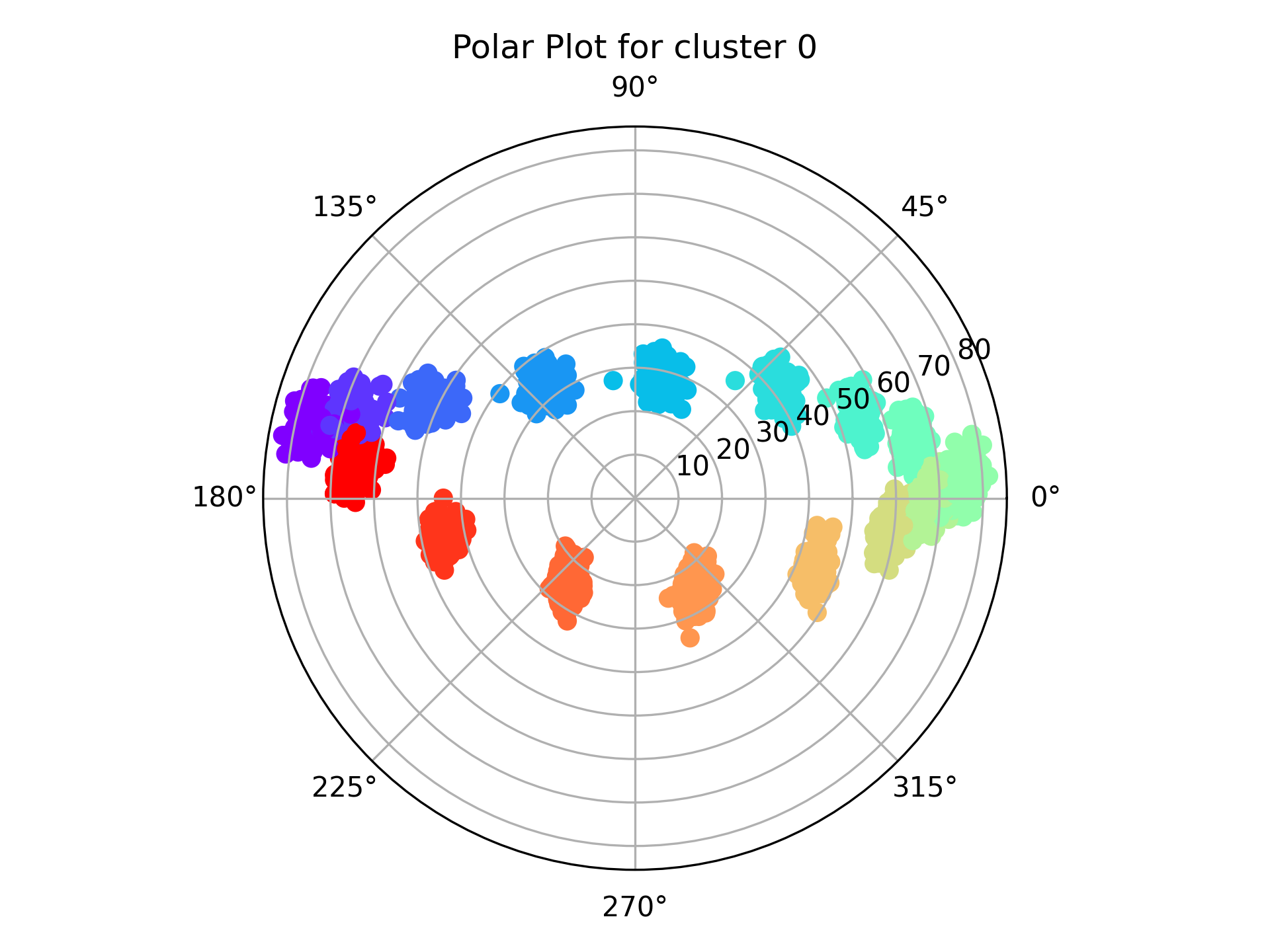

Here is an example of the polar plot for cluster 0, all the images that ended up within cluster 0.

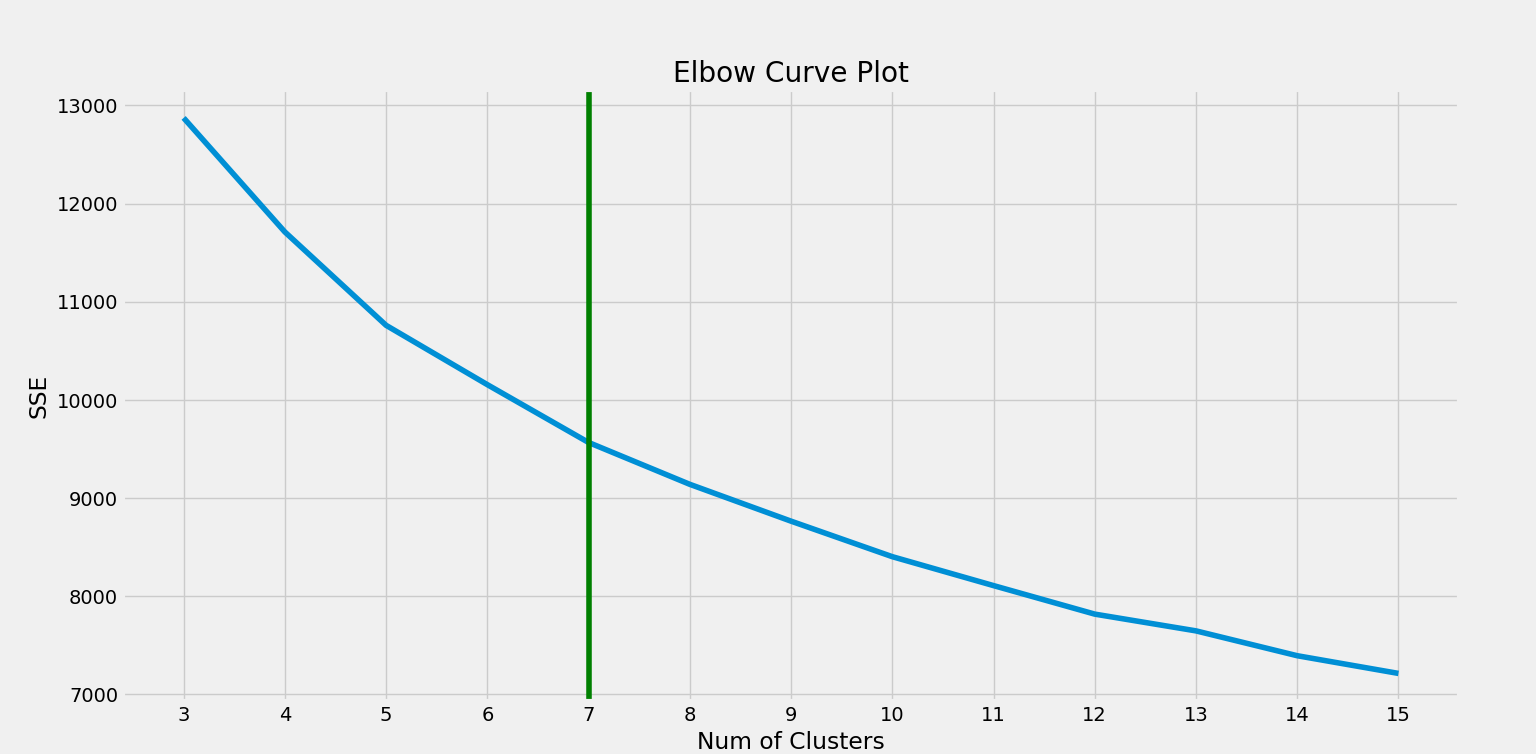

The Elbow Curve for my data.

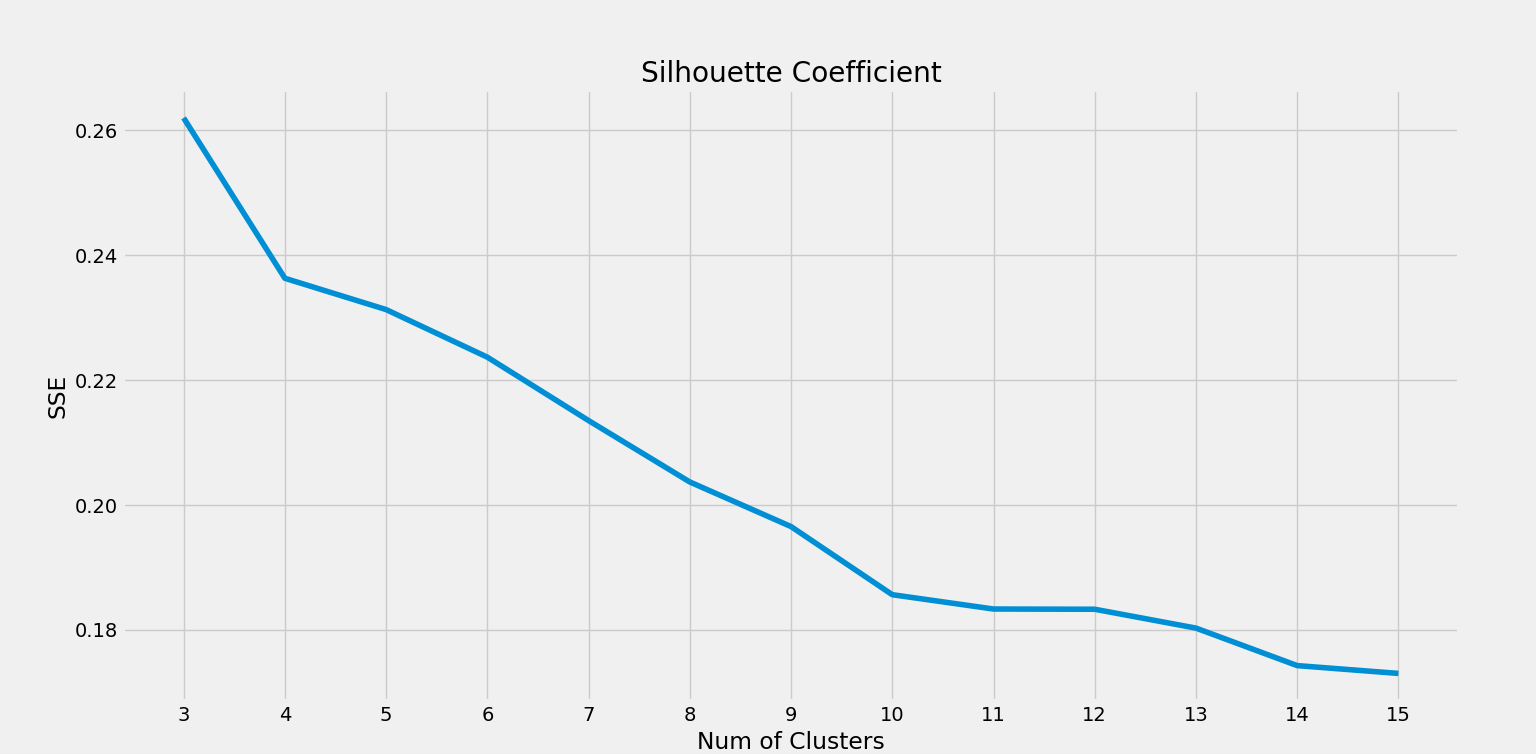

The Silhouette Coefficient.
My attempts to clean up and streamline the process for kmeans, as well as doing Principal Component Analysis, but it was meaningless for the eyes I was working on.
My goals for the future are to look down these avenues for a more successful result:
- Hierarchical Clustering
- Non-Machine Learning models
- Procrustes Analysis
- Multidimensional dynamic time warping?
- Add additional features like Nose, Lips, Jaw?
If you have any questions feel free to reach out! I also borrowed a few snippets of code from other projects. The dataset I used was Ma, D. S., Correll, J., & Wittenbrink, B. (2015). The Chicago face database: A free stimulus set of faces and norming data. Behavior research methods, 47(4), 1122-1135. https://www.chicagofaces.org/
