Name the four things this application can do, in its menu

[buzzromain]

What you could not find, and now can

Backing up your recovery phrase.

Today it is reachable from exactly one place: check_result_callback() in
src/nbgl/ui.c offers it, and only when the tool was BIP39, the phrase was
well formed, and it matched the device.

if (tool_type == TOOL_TYPE_BIP39 && bip39_mnemonic_check(&seed_match) &&
    seed_match) {
    display_select_generate_sskr_page();

So to split a phrase into SSKR shares you have to open BIP39 Check, type it
in, succeed, and then accept an offer you did not ask for. Nothing in the menu
says any of that is there. Rebuilding a phrase from shares has the same shape,
behind a successful SSKR Check. On the Nano devices it is the same defect:
generating shares is the third step of the BIP-39 match flow.

The menu named formats, and the two operations worth the most in a backup tool
were the two with no entry.

before	after

The icon goes with the three-entry menu. Two reasons, both measured: on apex_p
the fourth button occupies the space the icon and title used, and the icons in
this repository name formats, so Generate and Recover would both have taken
icon_sskr — which is what the BIP85 entry already wore, identical to the SSKR
one beside it.

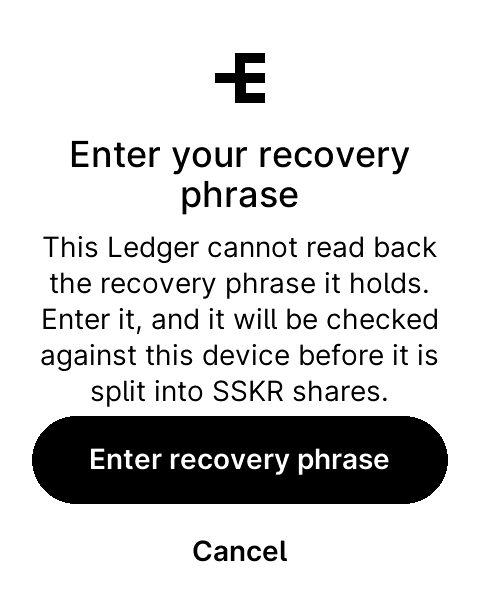

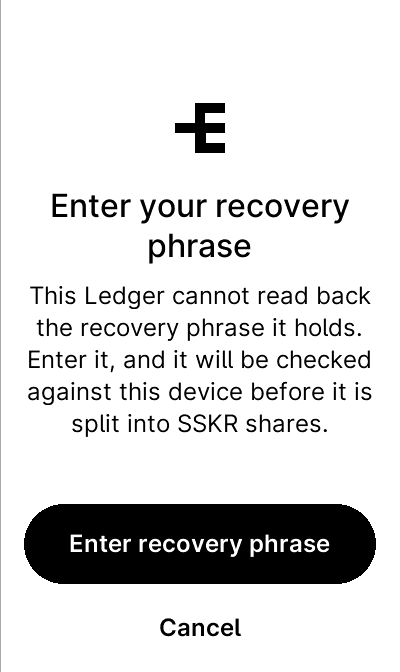

The screen this adds

One, and it is on the path the user walks. Someone who picks Generate backup shares is about to be asked to type twenty-four words into a device that
already holds them, and nothing said why. compare_recovery_phrase() gets a
seed back from the device and never the words, so the words have to come from
the person.

It takes the place of Generate SSKR Phrase?, which sat after the verdict and
asked whether to do a thing the user had not asked for.

What replaced the arithmetic on tool_type

A fourth menu entry does not become a fourth tool_type, and the reason is not
the display code.

compare_recovery_phrase() (src/common/common_seed.c) dispatches on
tool_type to decide which buffer to derive a seed from. A fourth value falls
through both of its branches, hands 64 zero bytes to the comparison, and
reports every phrase as not matching the device — with nothing on screen to say
the derivation never ran. That is worse than the failure the verdict screen's
own comment warns about, and it is not where that comment is looking.

So tool_type keeps its three values and means "what was typed". A separate
user_intent (src/constants.h) carries the four and means "what it is being
typed for". Checking a phrase and backing one up are the same tool and
different intentions, which is exactly what the old enumeration could not
express.

That also retires the indexing the verdict screen used:

const uint8_t text_index =
    (tool_type == TOOL_TYPE_BIP39 || tool_type == TOOL_TYPE_SSKR)
        ? (uint8_t)(1 + (tool_type * 2) + seed_match)
        : 1;

into a [2][5] table, bounded by a test naming the two values that were safe.
It is a table with one row per intention now, indexed by named constants and
sized on the enumeration.

Adding a fifth intention and compiling produces two compile errors and three
-Wswitch diagnostics on the touch stack, and a third compile error on the
Nano stack — each on a line that has to decide something:

src/nbgl/ui.c:173  error: static assertion failed: the menu shows one entry per intention
src/nbgl/ui.c:353  warning: enumeration value 'USER_INTENT_FIFTH' not handled [-Wswitch]
src/nbgl/ui.c:384  warning: ...
src/nbgl/ui.c:700  warning: ...
src/nbgl/ui.c:750  error: static assertion failed: verdict_body[] has one row per intention
src/bagl/ux_nano.c:231  error: static assertion failed: the two functions below choose a flow
                               on the intention, and everything they do not name takes the
                               check flow

The row index is bounded at run time as well, and user_intent is volatile
so that the bound survives compilation. It did not, at first: with the variable
static and every write to it a constant, the compiler proves the comparison
and folds it away — _etext was byte-identical on all three touch targets with
the bound present and with it removed. What a bound is for is a byte that
changed without anyone writing it, which is the case that proof excludes. Same
reason checkpoints is volatile in compare_recovery_phrase_finish().

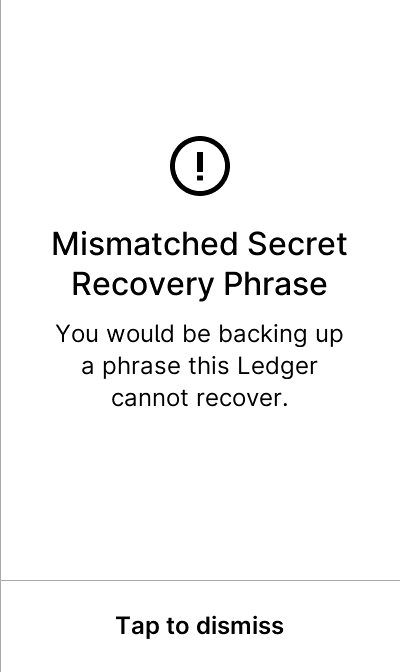

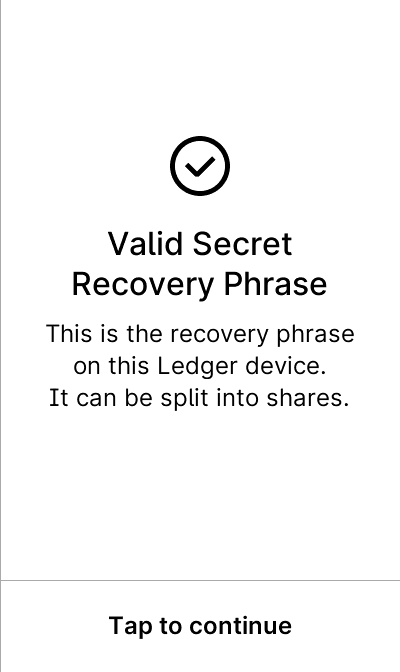

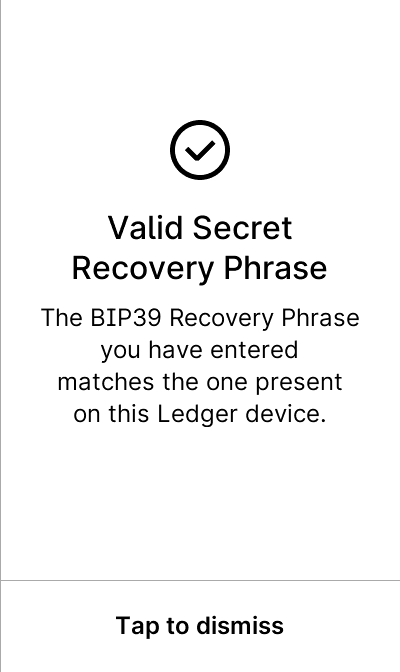

How the verdict behaves in each flow

The verdict is a destination when you came to check a phrase and a step on the
way when you came to back one up, so it does not say the same thing — and a
failure says least the same thing of all.

	check	backup
matches	…matches the one present on this Ledger device.	This is the recovery phrase on this Ledger device. It can be split into shares.
doesn't match	…doesn't match the one present on this Ledger device.	You would be backing up a phrase this Ledger cannot recover.
not well formed	the same in both, advice line included	the same
footer	Tap to dismiss	Tap to continue, and only on the match

doesn't match the one present on this Ledger device is a complete answer to
"is this my phrase?". It is half of one to "can I back this up?", where what
matters is that the shares about to be written down would restore something
this device cannot.

From there the flow is unchanged, reached without a single screen having
offered anything:

Checking no longer offers to split: the offer duplicated a menu entry, and the
screen it stood on is a destination. The share-count keypad's back arrow now
leaves for the home page, reaching reset_globals() in one gesture where the
offer took two.

What the Nano menu becomes

Three entries, not four. BIP-85 has no BAGL screen on any Nano, so a fourth
would lead nowhere. This is the one place the two stacks genuinely differ.

Check phrase        Generate            Recover
on this Ledger      backup shares       from backup

The last two say word for word what the touch buttons say. The first cannot: a
pbb step draws its two lines in an icon-flanked box 87px wide on the 128x32
Nano S, and Check recovery alone is 88px. What it does with the room it has
is worth more than the consistency it loses — on this Ledger says what the
phrase is checked against, which the touch button has no room to say at all.

The two entries these replace ended on recovery phrase, 93px against that
87px box, and had always been over it: one of the two strings the unit test
recorded as failing rather than asserting. All six new fragments are asserted,
and so are the five on the two screens the Nano flow gains.

A mismatch in the backup flow gets a second step, It would not restore this Ledger, because a pbb title has no room for the sentence the touch screen
carries in one. nanos also gains a memzero that nanox_enter_phrase.c
already had on the same branch: after a BIP-39 mismatch nothing reads the
phrase again, and this flow now puts one more screen between the verdict and
the erasure ui_idle_init() performs.

Sizes

_etext and _ebss read with arm-none-eabi-nm. Not text/data/bss from
size: on the touch targets _install_parameters sits at a fixed address and
.text runs to the end of that block, so those numbers are constants rather
than measurements.

target	_etext	Δ	_ebss	Δ
nanos	c0d0a228	+408	20000c80	+4
nanox	c0debd08	+416	da7a144d	+4
nanos+	c0debd08	+416	da7a144d	+4
stax	c0df2adc	+284	da7a1b4e	0
flex	c0df2c28	+280	da7a1b12	0
apex_p	c0df1e28	+288	da7a1b12	0

The 4 bytes of RAM on the three Nanos are the context field recording which
menu entry was chosen. Six targets, zero warnings.

The two commits are split by interface stack, which buys a claim that can be
checked with sha256 rather than by reading: after the first commit nanox
and nanos+ are byte-identical to the base — nanos differs only in DWARF,
which it alone carries, and --strip-debug gives the same hash with .text,
.rodata, .data and .bss identical — and after the second the three
touch binaries are byte-identical to the first.

Verification

• The six configurations of unit-tests-matrix.yml, reported separately:
  80/80 on each.
• Functional under Speculos: stax 19/10, flex 19/10, apex_p 19/10, nanox 13/16,
  nanos+ 13/16.
• clang-format --dry-run -Werror clean on every touched file in src/.
• The guard in front of the shares was proven by mutation on both stacks rather
  than by reading: removing the seed_match requirement fails exactly the test
  that claims to cover it on the touch stack, and two tests on the Nano stack.

This repository's CI does not run the functional tests on pull requests from
a fork — workflow permissions are read-only there. That is a property of
where the branch lives rather than a fault in the change; the results above
were produced locally on the same six binaries these commits contain.

What is not held by a test

• Nano S is not emulated at all. Its three menu entries, its two-line
  explanation step and its backup-mismatch step have never been rendered
  anywhere. They are held only by the unit test that measures each fragment
  against the layout's real pixel budget — which measures characters, not
  pixels drawn. That test's metrics are the Nano S ones applied to all three
  Nano devices: conservative, and therefore right, but by approximation.
• There are no snapshot tests here, by decision. Every screen is held by a
  text assertion, so wording is pinned and placement is not. The menu, the
  explanation screen and the verdicts were checked by reading back the
  coordinates Speculos reports; those checks are not automated.
• The BIP-85 row of the verdict table is empty and unreachable. Nothing
  tests it because nothing can reach it: that flow goes to
  display_generic_review() and never asks for a verdict. Left empty rather
  than filled with a plausible sentence, so a path that did arrive there would
  draw a title over an empty body instead of an answer about a comparison that
  never happened.
• Two of the four touch entries do not stand entirely on their own.
  Check recovery phrase does not say what it is checked against, and
  Derive with BIP85 says nothing to someone who does not already know. Both
  would be the better for a line of their own, and there is no room: between
  the back button and the fourth entry Flex has 96px, of which one title line
  takes 44, and a subtitle wrapped to two lines was measured under Speculos
  drawing its second line underneath the first button — which does not clip it,
  it deletes it. The per-entry alternative does not fit either:
  nbgl_layoutAddTouchableBar() makes an entry 94px on apex_p with a one-line
  subtitle, and four come to 376px against 340px of usable height.
• SSKR recovery still reveals the phrase without a device match, on both
  stacks: ux_sskr_nomatch_flow ends on the step that displays it, and the
  touch side gates on reconstruction rather than on seed_match. That is
  unchanged here and is presumably intended — rebuilding a phrase from its own
  shares on a device holding a different seed is the point of the feature — but
  it is the one place a secret is displayed without a match, and this change
  promotes that path from an offer behind a verdict to a menu entry.
• wordCandidates[] in src/nbgl/ui.c is still not erased by
  reset_globals(), which clears the pointer array but not the buffer holding
  the suggested words. Pre-existing, untouched, named because this change walks
  past it.
