An ESP8266-based indoor temperature monitoring device that uploads sensor data to the ThingSpeak IoT cloud platform over WiFi, with local display via an LCD screen and IR motion-triggered backlight control.
- 🌡️ Dual temperature sensing — simultaneously reads the DS18B20 external probe temperature and the DS3231 RTC built-in room temperature
- ☁️ Cloud data upload — writes data to a ThingSpeak channel every 60 seconds over HTTPS (SSL)
- 📺 Real-time LCD display — 16×2 LCD shows the current timestamp and both temperature readings
- 🚶 IR motion-triggered backlight — automatically turns on when motion is detected; turns off after 180 seconds of inactivity
- 🕐 Accurate RTC timekeeping — DS3231 real-time clock module provides precise date and timestamp data
- 🔄 Auto WiFi reconnection — automatically attempts to reconnect if the connection is lost
This project began with a simple concern: avoiding the risk of temperature loss for stored samples and plants. A failure of a freezer, incubator, or growth chamber — even briefly — can ruin weeks or months of work. The idea that such a small, inexpensive device could meaningfully reduce the chance of those losses felt worth the effort — and indeed, it has come through on a few occasions.

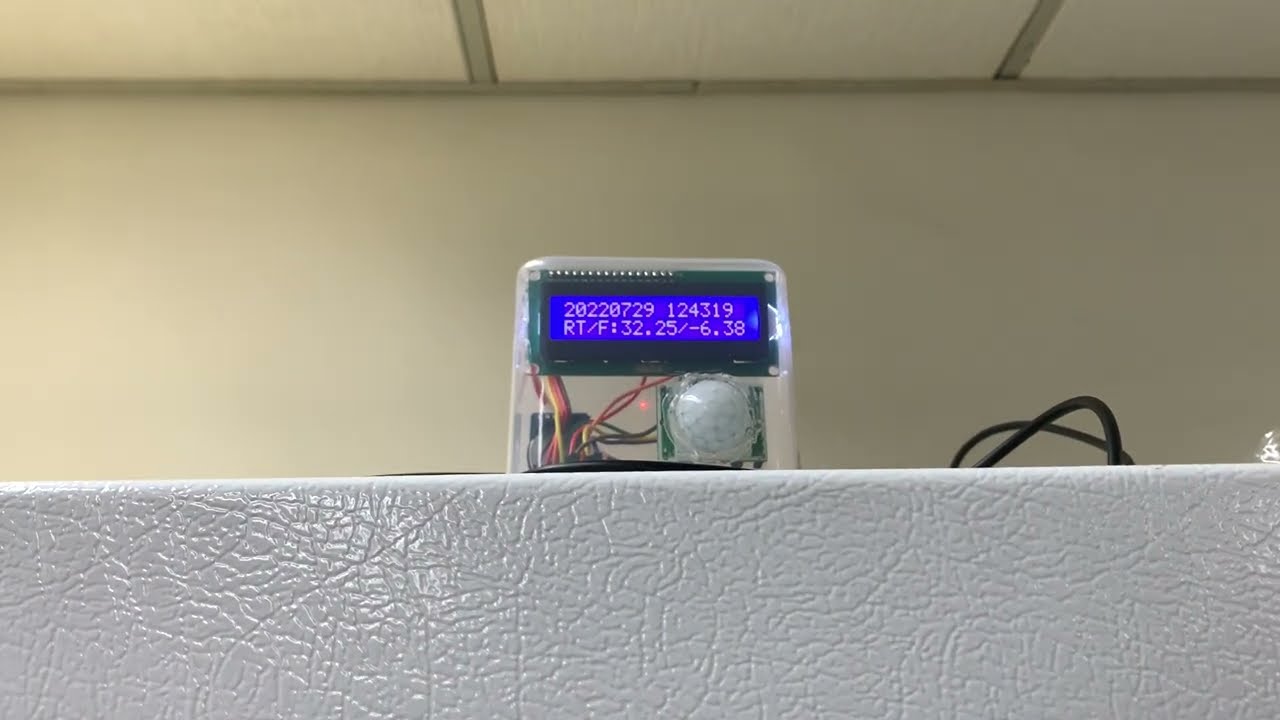

Click the thumbnail to watch the demo on YouTube.
Note: The device was initially placed inside a refrigerator and later moved to a plant growth chamber — this is why the recorded temperature rises noticeably partway through the chart.
| Component | Model / Spec |
|---|---|
| Microcontroller | ESP8266 (e.g. NodeMCU, Wemos D1) |
| Temperature sensor | DS18B20 (1-Wire interface) |
| Real-time clock | DS3231 RTC module (I2C interface) |
| Display | LCD 1602 (I2C backpack, 16 cols × 2 rows) |
| Motion sensor | Passive IR (PIR) sensor |
| Component | ESP8266 Pin |
|---|---|
| IR sensor (signal) | GPIO 2 (D4) |
| DS18B20 (data wire) | GPIO 0 (D3) |
| DS3231, LCD | I2C bus (SDA / SCL) |
The DS18B20 uses a 1-Wire bus on GPIO 0 and is independent of the I2C bus used by the RTC and LCD.
Install the following libraries in the Arduino IDE:
| Library | Purpose | Notes |
|---|---|---|
| ESP8266WiFi | WiFi connectivity | Bundled with ESP8266 core |
| WiFiClientSecure | HTTPS / SSL support | Bundled with ESP8266 core |
| ThingSpeak | Cloud data upload | By MathWorks |
| OneWire | 1-Wire bus | Required for DS18B20 |
| DallasTemperature | DS18B20 sensor | — |
| RTClib | DS3231 RTC | By Adafruit |
| LiquidCrystalIO | LCD 1602 (I2C backpack) | Not the standard LiquidCrystal_I2C; requires IoAbstractionWire |
| IoAbstraction | I2C abstraction layer | Required by LiquidCrystalIO |
⚠️ The LCD driver used here is LiquidCrystalIO (by Dave Cherry / davetcc), configured for a PCF8574-based I2C backpack at address 0x3F. If your backpack uses a different address or pin wiring (EN,RW,RS instead of RS,RW,EN), update theLiquidCrystalI2C_RS_ENcall inDisplayLCD1602.haccordingly.
.
├── 20220729_TemperatureSensorWithWiFi.ino # Main sketch
├── SecretsWiFi.h # WiFi & ThingSpeak credentials (must be created manually)
├── TemperatureDS18B20.h # DS18B20 sensor wrapper
├── DisplayLCD1602.h # LCD 1602 display wrapper
└── TimeDS3231.h # DS3231 RTC wrapper
Create a SecretsWiFi.h file in the project directory and fill in your WiFi and ThingSpeak details:
#define SECRET_SSID "your_wifi_ssid"
#define SECRET_PASS "your_wifi_password"
#define SECRET_CH_ID 000000 // ThingSpeak Channel ID
#define SECRET_WRITE_APIKEY "xxxxxxxxxxxxxxxx" // ThingSpeak Write API Key
⚠️ Do not commit this file to any public version control repository (e.g. GitHub).
Log in to ThingSpeak, create a channel, and configure the following fields:
| Field | Data |
|---|---|
| Field 1 | DS18B20 probe temperature (°C) |
| Field 2 | DS3231 room temperature (°C) |
| Field 3 | Unix timestamp (seconds) |
- Open Arduino IDE
- Select your ESP8266 board from Tools → Board
- Select the correct serial port
- Click Upload
Boot
└─► Initialize (WiFi, ThingSpeak, DS18B20, LCD, RTC)
└─► Main loop (runs every second)
├─ Check WiFi; reconnect automatically if disconnected
├─ Read RTC time, room temp, DS18B20 temp, IR status
├─ Motion detected → reset backlight timer (180 s)
├─ Update LCD with timestamp & dual temperatures (if backlight on)
└─ Every 60 s → upload data to ThingSpeak
| Parameter | Default | Description |
|---|---|---|
recordingIntervalSec |
60 |
ThingSpeak upload interval (seconds) |
lightOnResetSec |
180 |
Backlight on-duration after motion trigger (seconds) |
IRsensor |
2 |
IR sensor GPIO pin |
| DS18B20 resolution | 12 bits |
Temperature resolution (9–12 bits) |
ONE_WIRE_BUS |
0 |
DS18B20 data wire GPIO pin |
Sensor error codes:
If the DS18B20 fails to respond, readDSTemperatureC() returns 888 (°C) and readDSTemperatureF() returns 888 (°F). These sentinel values can be used to detect wiring or sensor faults at runtime.
