TestLink → BrowserStack Migration Framework

A scalable migration framework for migrating data from TestLink into BrowserStack Test Management.

Supports:

• MySQL / MariaDB
• Docker & On-Prem installations
• Native DB backups
• Attachment extraction
• Config extraction
• Canonical NDJSON exports
• BrowserStack API imports
• Resumable migrations

---

Problem Statement

Organizations using TestLink often need to migrate:

• projects
• test suites
• test cases
• executions
• attachments
• plans
• custom fields

into BrowserStack Test Management.

However, TestLink data is distributed across:

• relational databases
• filesystem attachments
• config files
• execution history

This framework was designed to handle large-scale migrations safely and efficiently.

---

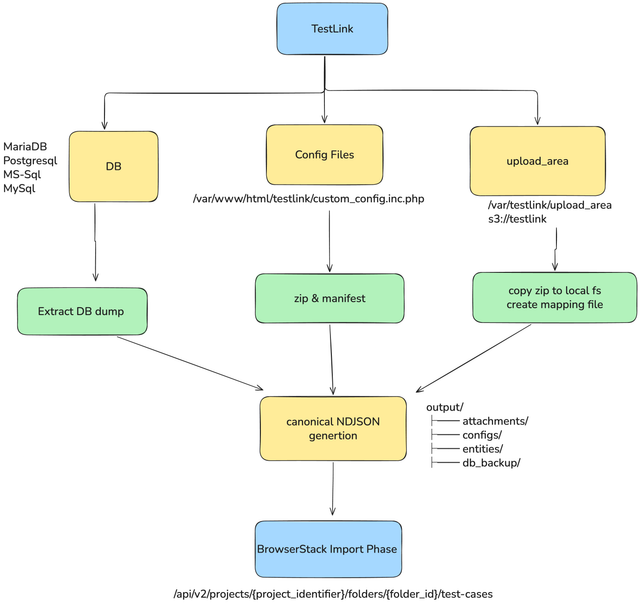

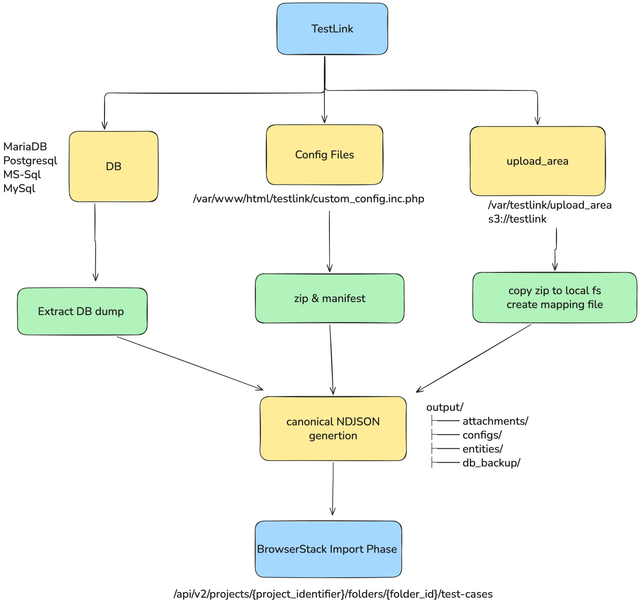

Architecture

The system follows a two-phase hybrid migration architecture.

Phase 1 — Extraction & Snapshot

Extracts:

• native DB backup
• canonical NDJSON exports
• attachments
• config files

Outputs a reusable migration bundle.

Phase 2 — BrowserStack Import

Reads migration bundle and imports:

• projects
• folders
• testcases
• plans
• results
• attachments

using BrowserStack APIs.

---

Why Hybrid Architecture?

The migration system combines:

• native DB backups
• NDJSON canonical exports
• zipped asset bundles
• decoupled API importer

This provides:

• resumability
• scalability
• portability
• low memory usage
• failure recovery
• large dataset support

---

Folder Structure

.
├── browserstack/
├── extractor/
├── orchestrator/
├── utils/
├── mappings/
├── output/
├── requirements.txt
└── index.py

---

Core Components

index.py

Main entrypoint.

Starts complete migration flow.

---

orchestrator/runner.py

Master orchestration layer.

Handles:

• user prompts
• DB connection
• extraction
• migration flow

---

orchestrator/extraction.py

Canonical entity exporter.

Exports:

• projects
• suites
• testcases
• plans
• executions
• custom fields

into NDJSON format.

---

orchestrator/migration.py

BrowserStack import coordinator.

Handles:

• project import
• folder import
• testcase import
• plan import
• results import
• attachment upload

---

Database Extraction

Supported DBs

• MySQL
• MariaDB
• PostgreSQL (planned)
• MSSQL (planned)

---

Native Backup Commands

MySQL / MariaDB

mysqldump \
  -h localhost \
  -P 3306 \
  -u testlink \
  -p testlink \
  --single-transaction \
  --quick \
  --routines \
  --triggers \
  --events \
  > backup.sql

Compressed:

mysqldump ... | gzip > backup.sql.gz

---

PostgreSQL

pg_dump \
  -h localhost \
  -U postgres \
  -d testlink \
  -Fc \
  -f backup.dump

---

MSSQL

sqlcmd -Q "
BACKUP DATABASE testlink
TO DISK='backup.bak'
"

---

Config Extraction

Extracts:

• config_db.inc.php
• custom_config.inc.php

Docker example:

docker cp \
  testlink:/var/www/html/testlink/config_db.inc.php .

Compressed into:

configs.zip

---

Attachment Extraction

Extracts assets from:

upload_area/

Supports:

• Docker
• on-prem filesystem
• future S3 support

Docker example:

docker cp \
  testlink:/var/testlink/upload_area .

Compressed into:

attachments.zip

---

Canonical NDJSON Export

The framework exports entities into:

NDJSON

Example:

{"id":1,"name":"Login Test"}
{"id":2,"name":"Checkout Test"}

Benefits:

• streaming friendly
• low memory usage
• resumable imports
• chunk processing
• scalable for large datasets

---

BrowserStack Import Layer

Uses BrowserStack Test Management APIs for importing:

• projects
• folders
• testcases
• plans
• results
• attachments

Mappings are maintained for:

TestLink ID -> BrowserStack ID

---

Mapping Files

Generated under:

mappings/

Examples:

• projects.json
• testcases.json
• attachments.json

Used for:

• resumability
• attachment linking
• execution linking

---

Current Simplification Strategy

Instead of recreating exact TestLink hierarchy, all suites are currently mapped into a single BrowserStack root folder:

TestLink Migrated

This improves:

• migration reliability
• API compatibility
• large dataset handling

while preserving original metadata.

---

Limitations

Current limitations include:

• simplified suite hierarchy
• partial BrowserStack API restrictions
• PostgreSQL/MSSQL extractors still WIP
• attachment linking currently focused on testcase entities

---

Explored Approaches

1. Direct DB → API

Rejected because:

• tightly coupled
• difficult retries
• repeated DB access

---

2. CSV/XML Export

Rejected because:

• weak hierarchy support
• attachment loss
• limited resumability

---

3. Native .bak Only

Rejected because:

• BrowserStack APIs still require transformed entities

---

4. Final Chosen Approach

Hybrid architecture combining:

• native backup
• canonical NDJSON
• zipped assets
• decoupled importer

provided the best balance.

---

Strengths of Current System

• scalable
• resumable
• Docker compatible
• low memory usage
• attachment aware
• API-driven
• mapping based
• reusable migration bundles
• production-safe extraction flow

---

Future Improvements

Planned enhancements:

• PostgreSQL extractor
• MSSQL extractor
• S3 attachment support
• rate limiting
• checkpoint recovery
• parallel imports
• exact suite hierarchy recreation
• incremental migrations

---

Setup

Create and activate a virtual environment:

python3 -m venv venv
source venv/bin/activate

Install Python dependencies:

pip3 install -r requirements.txt

Install the MySQL client:

brew install mysql-client

Run migration:

python3 index.py

---

Output Structure

output/
├── attachments/
├── configs/
├── db_backup/
├── entities/
└── logs/

---

Author Notes

This project evolved from a simple DB backup script into a scalable migration framework by progressively solving:

• DB portability
• attachment handling
• hierarchy mapping
• resumability
• API integration
• large dataset processing

The final architecture separates:

• extraction
• transformation
• transport
• import
• mapping

into independent layers for better maintainability and operational safety.
