Binary data is incorrect, maximum possible value is 560

[thinkycx]

description

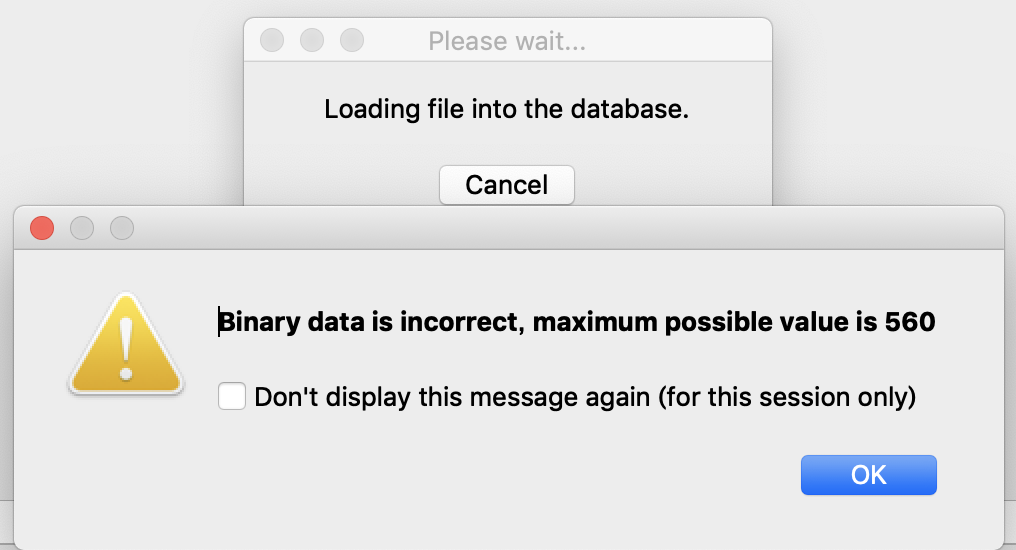

When use the IDA to load heapcreator.expanded, it failed.

Output

log

//...
  bytes   pages size description
--------- ----- ---- --------------------------------------------
   262144    32 8192 allocating memory for b-tree...
    65536     8 8192 allocating memory for virtual array...
   262144    32 8192 allocating memory for name pointers...
-----------------------------------------------------------------
   589824            total memory allocated

Loading file 'samples/heapcreator.expanded' into database...
Detected file format: ELF64 for x86-64 (Executable)
Loading processor module /Applications/IDA Pro 7.0/ida64.app/Contents/MacOS/procs/pc64.dylib for metapc...OK
Autoanalysis subsystem has been initialized.
/Applications/IDA Pro 7.0/ida64.app/Contents/MacOS/plugins/vmlinux.py: PLUGIN_ENTRY was not defined or the class name 'Keypatch_Plugin_t' was already used in 'keypatch.py'
  0. Creating a new segment  (0000000000400000-00000000004012AC) ... ... OK
  1. Creating a new segment  (00000000004034A8-000000000040379B) ... ... OK
Unloading IDP module /Applications/IDA Pro 7.0/ida64.app/Contents/MacOS/procs/pc64.dylib...

other info

The key point is in addSegment function. When add the p_filesz 0xc3 in order to load the shellcode , the IDA will display this error.

		# add new PT_LOAD to load new Program Header Table and maybe shellcode in future
			# todo IDA cannot load it and pwntools command: got  is also failed
			segAlign = (len(phdr_table) + e_phentsize) % 0x10
			if u32(phdr[i][0:4]) == 0x1:
				log.info("\t find first PT_LOAD, going to add a new PT_LOAD...")
				log.info("\t len(phdr_table) + e_phentsize : %x", len(phdr_table) + e_phentsize);
				new_phdr = phdr[i]
				new_phdr = util.replaceStr(new_phdr, 0x4, p32(0x5))                                      # p_flags 7
				new_phdr = util.replaceStr(new_phdr, 0x8, p64(raw_filesize))                             # p_offset
				new_phdr = util.replaceStr(new_phdr, 0x10, p64(0x400000 + raw_filesize))                 # p_pvaddr
				new_phdr = util.replaceStr(new_phdr, 0x18, p64(0x400000 + raw_filesize))                 # p_paddr
				new_phdr = util.replaceStr(new_phdr, 0x20, p64(len(phdr_table) + e_phentsize + 0xc3))    # p_filesz
				new_phdr = util.replaceStr(new_phdr, 0x28, p64(len(phdr_table) + e_phentsize + segAlign + 0xc3))# p_memsz
				phdr.insert(i+1, new_phdr)
				break
